2004 Yamaha V-Star Silverado XVS1100 Shift Shaft OEM Parts Diagram

Submodel V STAR 1100 SILVERADO - XVS11ATSC - 2004

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

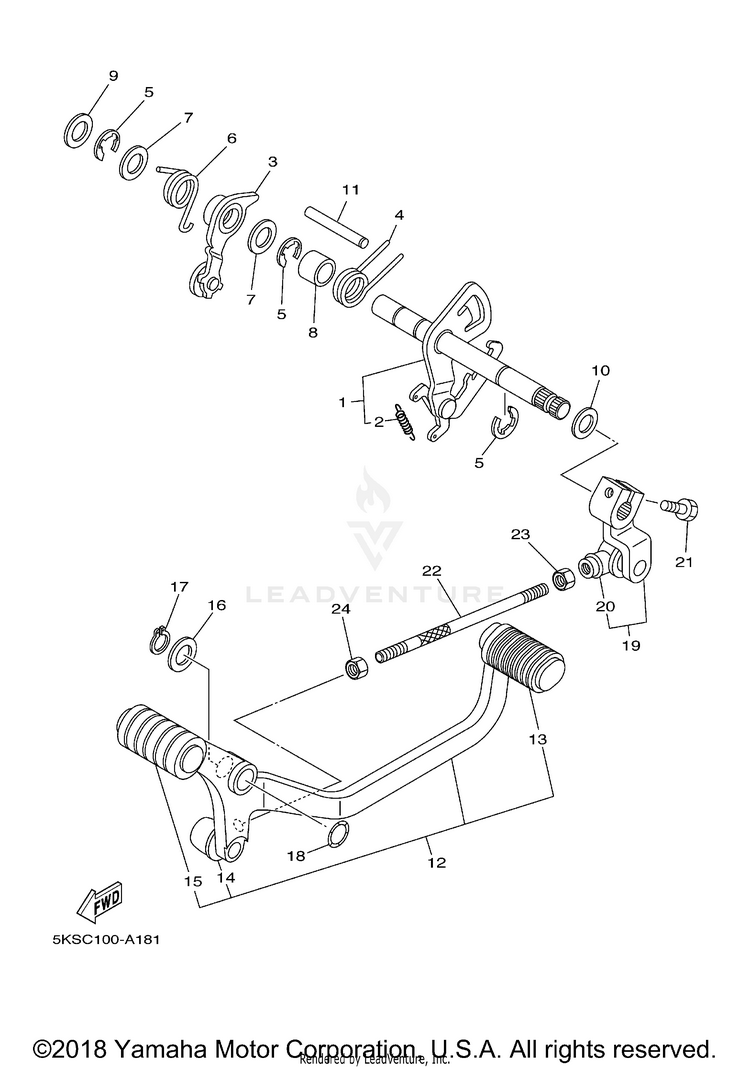

SHIFT SHAFT

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15EL-18120-00-00SHIFT LEVER ASSY$84.99$66.29Usually ships in 7-10 business days
290506-08227-00SPRING, TENSION$4.55$3.913 In-Stock
35EL-18140-00-00STOPPER LEVER ASSY$47.99$39.35Usually ships in 7-10 business days
490508-32535-00SPRING, TORSION$11.49$9.42Usually ships in 7-10 business days
599006-10600-00

(replaces part #
99001-10600-00)

CIRCLIP$10.49$8.1810+ In-Stock
690508-32012-00SPRING, TORSION$8.49$7.64Usually ships in 7-10 business days
790201-12588-00WASHER, PLATE$8.49$6.624 In-Stock
890387-12033-00

(replaces part #
90387-124F4-00)

COLLAR$8.49$6.627 In-Stock
990201-12588-00WASHER, PLATE$8.49$6.624 In-Stock
1090201-12166-00WASHER, PLATE$10.49$8.184 In-Stock
1193608-50158-00PIN, DOWEL$9.49$8.54Usually ships in 7-10 business days
125KS-18110-00-00SHIFT PEDAL ASSY$194.99$152.09Usually ships in 7-10 business days
1322N-18113-00-00COVER, SHIFT PEDAL$8.49$7.64Usually ships in 7-10 business days
142H9-18154-00-00COVER, DUST$5.99$4.768 In-Stock
154NK-18113-10-00COVER, SHIFT PEDAL$8.49$7.64Usually ships in 7-10 business days
1690201-124E4-00

(replaces part #
90201-12688-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
1799009-12400-00CIRCLIP$3.59$3.0910+ In-Stock
1890206-12074-00WASHER, WAVE$10.49$8.18
194TR-18112-00-00ARM, SHIFT$84.99$66.29Usually ships in 7-10 business days
202H9-18154-00-00COVER, DUST$5.99$4.768 In-Stock
2197024-06020-00BOLT$9.49$7.4010+ In-Stock
224DN-18115-20-00ROD, SHIFT$18.99$15.57Usually ships in 7-10 business days
2390170-06228-00NUT (COUNTER CLOCKWISE)$10.49$8.18
2495380-06700-00

(replaces part #
95304-06700-00)

NUT$9.49$7.404 In-Stock
