HEADLIGHT

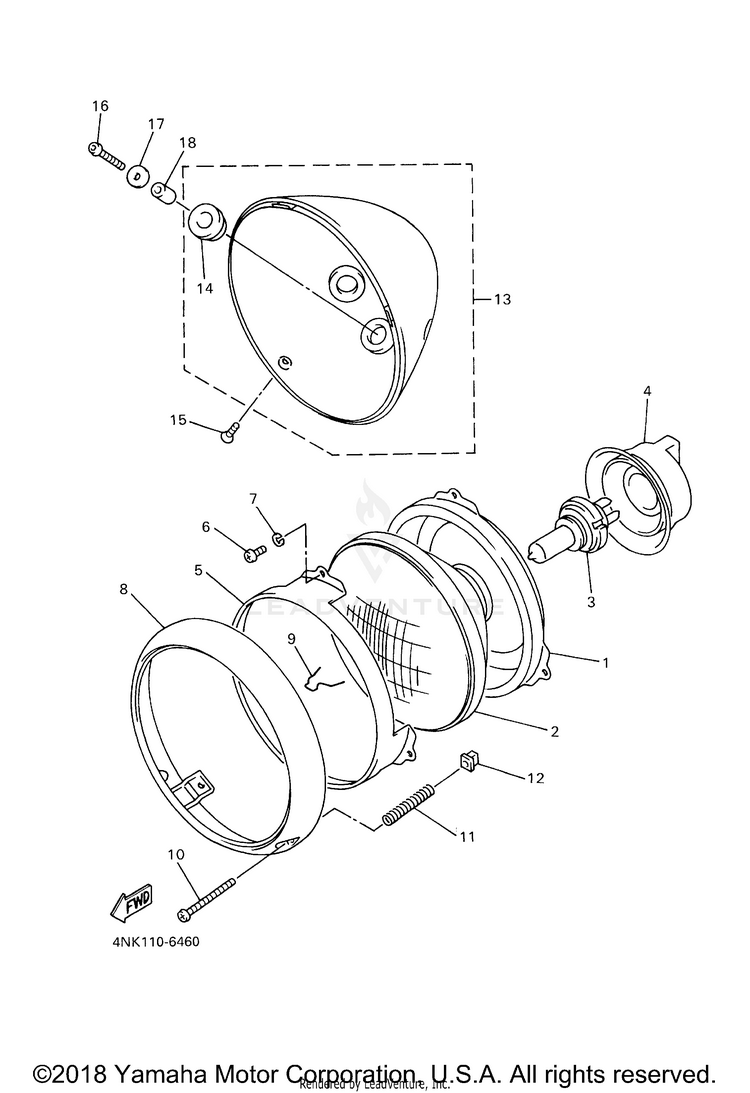

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14NK-84394-00-00RING, MOUNTING$95.99$74.87Usually ships in 7-10 business days
24NK-84320-00-00LENS ASSY$234.99$183.29Usually ships in 7-10 business days
35V2-84314-40-XXBULB (12V-60/55W) | (H4) HALOGEN$0.00$0.00Not Shipping
43SX-84397-00-00COVER, SOCKET$32.99$27.05Usually ships in 7-10 business days
52F9-84395-00-00RING, RETAINING$63.99$49.91Usually ships in 7-10 business days
698580-04008-00

(replaces part #
98502-04008-00)

SCREW, PAN HEAD$6.49$5.0610+ In-Stock
792990-04100-00

(replaces part #
92902-04100-00)

WASHER, SPRING-$1.0210+ In-Stock
84NK-84315-00-00RIM, HEADLIGHT$170.99$133.37Usually ships in 7-10 business days
9290-84124-21-00SPRING, SET$8.49$7.64Usually ships in 7-10 business days
1090157-04001-00

(replaces part #
341-84331-60-00)

SCREW, ADJUSTING$9.49$7.404 In-Stock
11341-84332-60-00

(replaces part #
5G2-84332-60-00)

SPRING, SCREW$10.99$8.576 In-Stock
12198-84334-60-00NUT, ADJUSTING$8.49$6.625 In-Stock
135KS-84330-00-00BODY ASSY$293.99$229.31Usually ships in 7-10 business days
1442X-84366-00-00DAMPER, HEADLIGHT 1$22.99$18.85Usually ships in 7-10 business days
1598704-05012-00SCREW, FLAT HEAD$4.10$3.69Usually ships in 7-10 business days
1692017-06025-00BOLT, BUTTON HEAD$10.49$8.187 In-Stock
1790201-06086-00

(replaces part #
90201-060A3-00)

WASHER, PLATE$8.49$7.0110+ In-Stock
1890387-0610J-00COLLAR$9.49$8.54Usually ships in 7-10 business days
