FRONT WHEEL

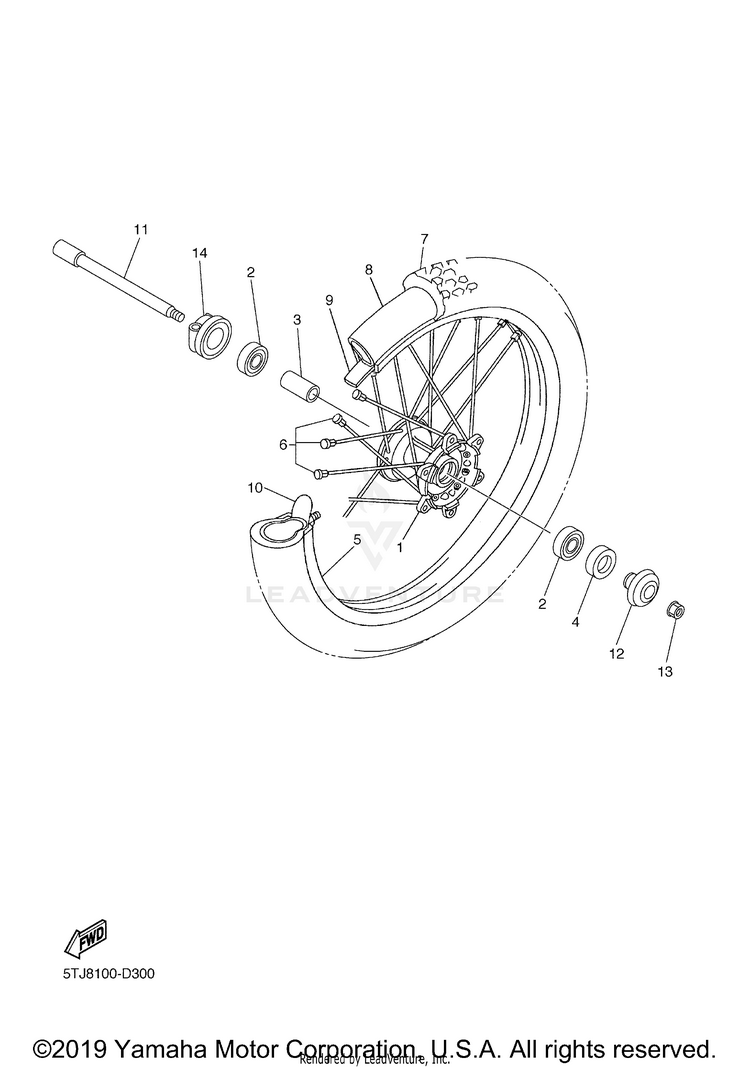

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15NG-25111-50-00HUB, FRONT$263.99$219.10Usually ships in 7-10 business days
293306-90403-00BEARING$48.99$38.219 In-Stock
35NY-25117-00-00SPACER, BEARING$34.99$27.299 In-Stock
493102-26468-00OIL SEAL$23.99$18.7110+ In-Stock
594416-21003-00RIM (1.60-21)$299.99$233.99Usually ships in 7-10 business days
65NY-25104-00-00SPOKE SET, FRONT$235.99$184.073 In-Stock
794108-21015-00TIRE (80/100-21 51M D739FA) | DUNLOP$101.99$91.35Not Shipping
894227-21123-00

(replaces part #
94227-21101-00)

TUBE (MCS 2.75/3.00-21 TR6) | DUNLOP$51.99$40.5510+ In-Stock
994330-21084-00

(replaces part #
94309-21161-00)

BAND, RIM (1.60-21) | DUNLOP$18.49$14.4210+ In-Stock
105SF-25394-00-00SPACER, BEAD$30.99$24.1710+ In-Stock
111C3-25181-10-00

(replaces part #
1C3-25181-00-00)

AXLE, WHEEL$137.99$107.634 In-Stock
125TJ-2510C-80-00COLLAR ASSY.$37.99$29.632 In-Stock
1390179-16003-00

(replaces part #
90179-16002-00)

NUT$17.49$13.647 In-Stock
145NG-25190-50-00GEAR UNIT ASSY$221.99$173.15Usually ships in 7-10 business days
