2005 Yamaha WR450F Rear Brake Caliper OEM Parts Diagram

Submodel WR450F - WR450FT - 2005

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

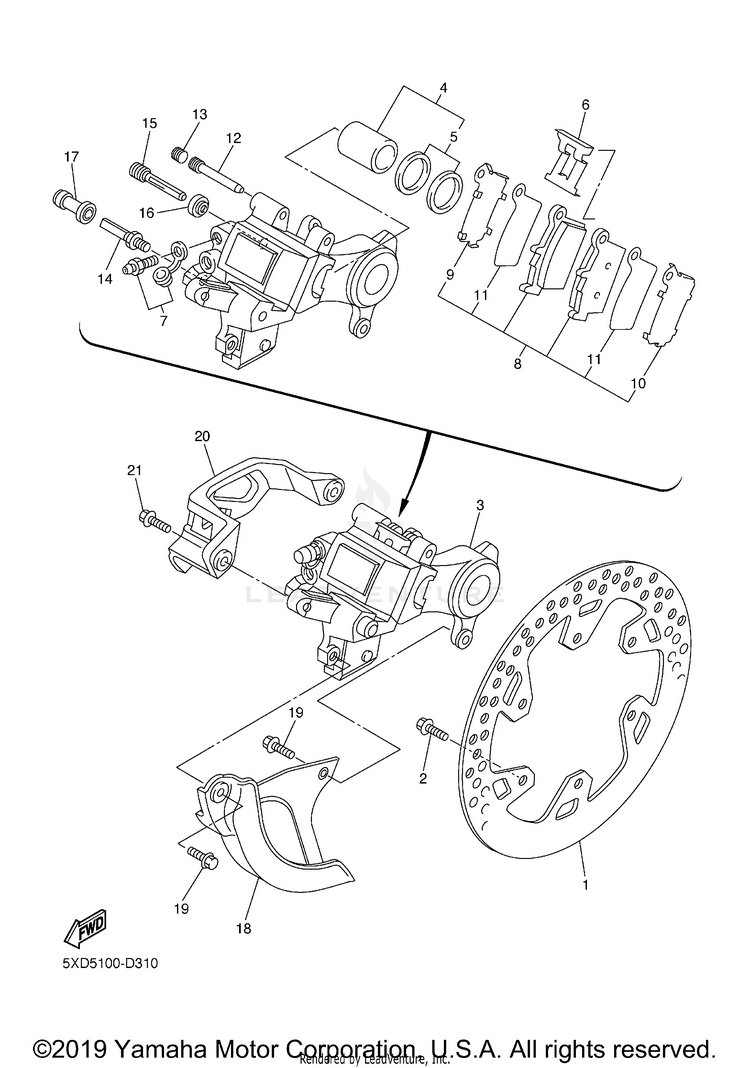

REAR BRAKE CALIPER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15NY-2582W-00-00DISC, REAR BRAKE 2$236.99$184.85Usually ships in 7-10 business days
290105-06109-00

(replaces part #
90109-065G4-00)

BOLT, FLANGE$10.49$8.1810+ In-Stock
31C3-2580W-00-00CALIPER ASSY, REAR 2$303.99$252.51Usually ships in 7-10 business days
45UN-W0057-50-00PISTON ASSY, CALIPER$62.99$49.1310+ In-Stock
55UN-W0047-50-00CALIPER SEAL KIT$17.99$14.034 In-Stock
65DH-25919-50-00SUPPORT, PAD$22.99$17.9310+ In-Stock
736Y-W0048-00-00

(replaces part #
1UY-W0048-50-00)

BLEED SCREW KIT$10.99$8.5710+ In-Stock
85UN-W0046-51-00

(replaces part #
1C3-W0046-00-00)

BRAKE PAD KIT 2$50.99$42.291 In-Stock
AFTERMARKET ALTERNATIVE
$29.99$19.9910+ In-Stock
95UN-25828-60-00SHIM, CALIPER$12.99$10.136 In-Stock
105UN-25827-60-00SHIM, CALIPER$16.49$12.8610+ In-Stock
115UN-22898-60-00INSULATOR, HEAT$21.99$17.1510+ In-Stock
128CR-25924-00-00PIN, PAD$15.49$12.0810+ In-Stock
135DH-25916-00-00PLUG$10.99$8.5710+ In-Stock
145UN-25914-00-00PIN, SLIDE$15.49$12.086 In-Stock
155DH-25914-50-00PIN, SLIDE$24.99$19.494 In-Stock
163JD-25917-00-00BOOT, CALIPER$9.49$7.4010+ In-Stock
171UY-25937-51-00BOOT 2$15.49$12.0810+ In-Stock
185DH-25718-01-00PROTECTOR, DISK BRAKE$28.99$22.618 In-Stock
1995027-06012-00BOLT, FLANGE$4.20$3.6110+ In-Stock
205TA-27491-09-00

(replaces part #
5TA-27491-00-00)

PROTECTOR$18.99$14.812 In-Stock
2190105-06696-00

(replaces part #
95027-06016-00)

BOLT, FLANGE$10.49$8.1810+ In-Stock
