2005 Yamaha WR450F Stand Footrest OEM Parts Diagram

Submodel WR450F - WR450FT - 2005

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

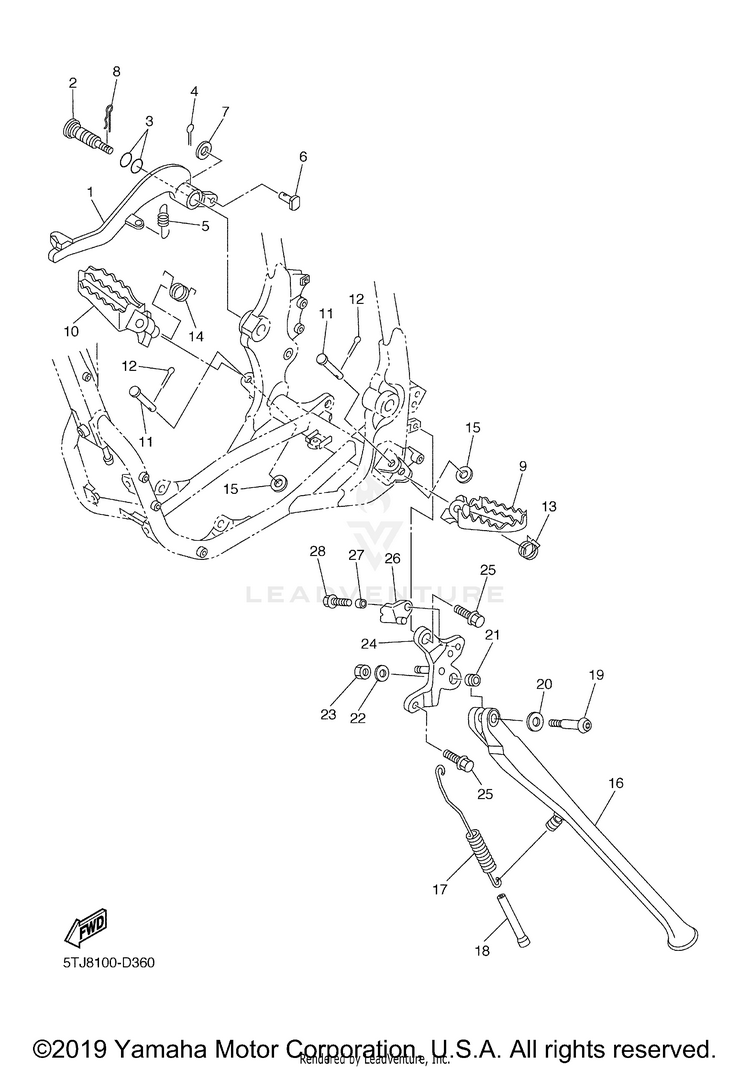

STAND FOOTREST

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15TA-27200-01-00

(replaces part #
5TA-27200-00-00)

PEDAL, BRAKE$158.99$124.01Usually ships in 7-10 business days
21C3-27217-10-00

(replaces part #
1C3-27217-00-00)

BOLT$30.99$24.1710+ In-Stock
393210-11073-00O-RING$8.49$6.6210+ In-Stock
491490-20015-00

(replaces part #
91401-20012-00)

PIN. COTTER$2.20$1.8910+ In-Stock
590506-16500-00SPRING, TENSION$9.49$7.4010+ In-Stock
690240-08120-00PIN, CLEVIS$14.49$11.3010+ In-Stock
792990-08600-00

(replaces part #
90201-08089-00)

WASHER, PLATE$2.80$2.7610+ In-Stock
890468-16192-00

(replaces part #
90468-16099-00)

CLIP$10.49$8.188 In-Stock
95ET-27411-01-00

(replaces part #
5ET-27411-00-00)

FOOTREST 1$122.99$95.931 In-Stock
105ET-27421-01-00

(replaces part #
5ET-27421-00-00)

FOOTREST 2$122.99$95.931 In-Stock
1190240-10004-00

(replaces part #
90240-10142-00)

PIN, CLEVIS$15.49$12.0810+ In-Stock
1291490-25020-00

(replaces part #
91401-25015-00)

PIN. COTTER$3.45$2.9710+ In-Stock
1390508-282B8-00SPRING, TORSION$16.49$12.868 In-Stock
1490508-282B9-00SPRING, TORSION$16.49$12.866 In-Stock
1590201-10119-00WASHER, PLATE$1.00$0.8610+ In-Stock
165TJ-27311-80-00STAND, SIDE$236.99$184.85Not Shipping
1790506-30002-00SPRING, TENSION$11.49$8.961 In-Stock
185TJ-27414-80-00DAMPER, FOOTREST$4.75$4.28Usually ships in 7-10 business days
1990109-08051-00BOLT$6.49$5.062 In-Stock
2092990-10200-00WASHER, PLAIN$3.80$3.2710+ In-Stock
2190387-1003G-00COLLAR$23.99$18.7110+ In-Stock
2290201-086P8-00WASHER, PLATE$5.49$4.2810+ In-Stock
2390185-08055-00NUT, SELF-LOCKING$10.49$8.189 In-Stock
245TJ-21458-50-00BRACKET, SIDE STAND$111.43$86.92Not Shipping
2595027-10020-00BOLT, FLANGE$2.90$2.495 In-Stock
265TJ-27314-50-00STOPPER$19.49$15.98Usually ships in 7-10 business days
2790387-06M24-00COLLAR$16.49$13.52Usually ships in 7-10 business days
2895817-06016-00

(replaces part #
95807-06016-00)

BOLT, FLANGE$1.95$1.6810+ In-Stock
