2005 Yamaha WR450F Side Cover OEM Parts Diagram

Submodel WR450F - WR450FT - 2005

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SIDE COVER

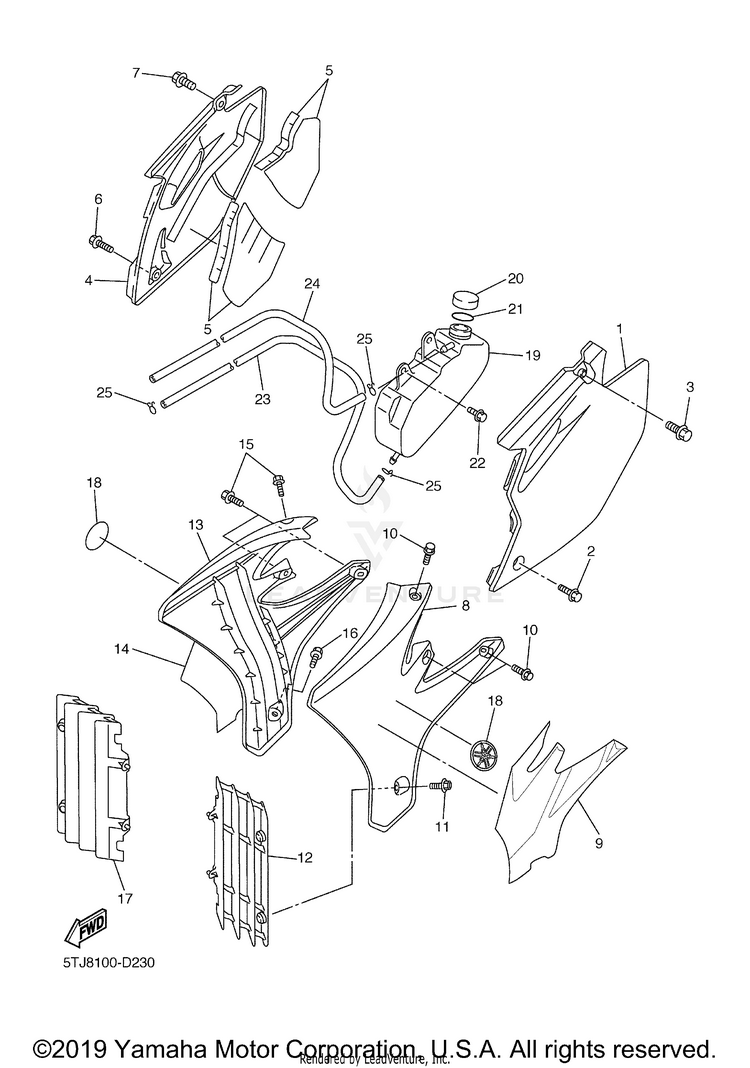

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15TJ-21711-80-00COVER, SIDE 1$23.99$19.52Not Shipping
295817-06016-00

(replaces part #
95827-06016-00)

BOLT, FLANGE$1.95$1.6810+ In-Stock
390119-08238-00BOLT, WITH WASHER$4.65$4.0010+ In-Stock
45TJ-21721-00-00COVER, SIDE 2$29.99$23.393 In-Stock
55TJ-2174A-00-00INSULATOR, SIDE COVER$33.99$26.51Not Shipping
695817-06016-00

(replaces part #
95827-06016-00)

BOLT, FLANGE$1.95$1.6810+ In-Stock
790119-08238-00BOLT, WITH WASHER$4.65$4.0010+ In-Stock
85TA-21730-00-00SIDE COVER ASSY 3$38.99$30.412 In-Stock
95XD-2173E-10-00GRAPHIC 1$78.99$61.61Not Shipping
1090105-06064-00

(replaces part #
90105-06055-00)

BOLT, FLANGE$3.45$2.9710+ In-Stock
1190159-06078-00SCREW, WITH WASHER$10.49$8.187 In-Stock
125TA-2172A-00-00PANEL 1$44.99$35.095 In-Stock
135TA-21740-00-00SIDE COVER ASSY 4$35.99$28.074 In-Stock
145XD-2173F-10-00GRAPHIC 2$79.99$62.391 In-Stock
1590105-06064-00

(replaces part #
90105-06055-00)

BOLT, FLANGE$3.45$2.9710+ In-Stock
1690159-06078-00SCREW, WITH WASHER$10.49$8.187 In-Stock
175TA-2172A-00-00PANEL 1$44.99$35.095 In-Stock
185MV-2175C-00-00TUNING FORK MARK$31.99$26.23Not Shipping
195GS-21871-00-00TANK, RECOVERY$75.99$59.273 In-Stock
2026H-21875-00-00CAP$37.99$29.633 In-Stock
2126H-21874-00-00GASKET$8.49$6.626 In-Stock
2290119-06051-00BOLT, WITH WASHER$9.49$7.405 In-Stock
2391A20-05145-00

(replaces part #
91A20-05140-00)

TUBE, FLEXIBLE VINYL$32.99$25.735 In-Stock
2491A11-05125-00TUBE, FLEXIBLE$10.49$8.18Not Shipping
2590467-090A2-00

(replaces part #
90467-09006-00)

CLIP$4.75$4.0810+ In-Stock
