2005 Yamaha WR450F Radiator Hose OEM Parts Diagram

Submodel WR450F - WR450FT - 2005

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

RADIATOR HOSE

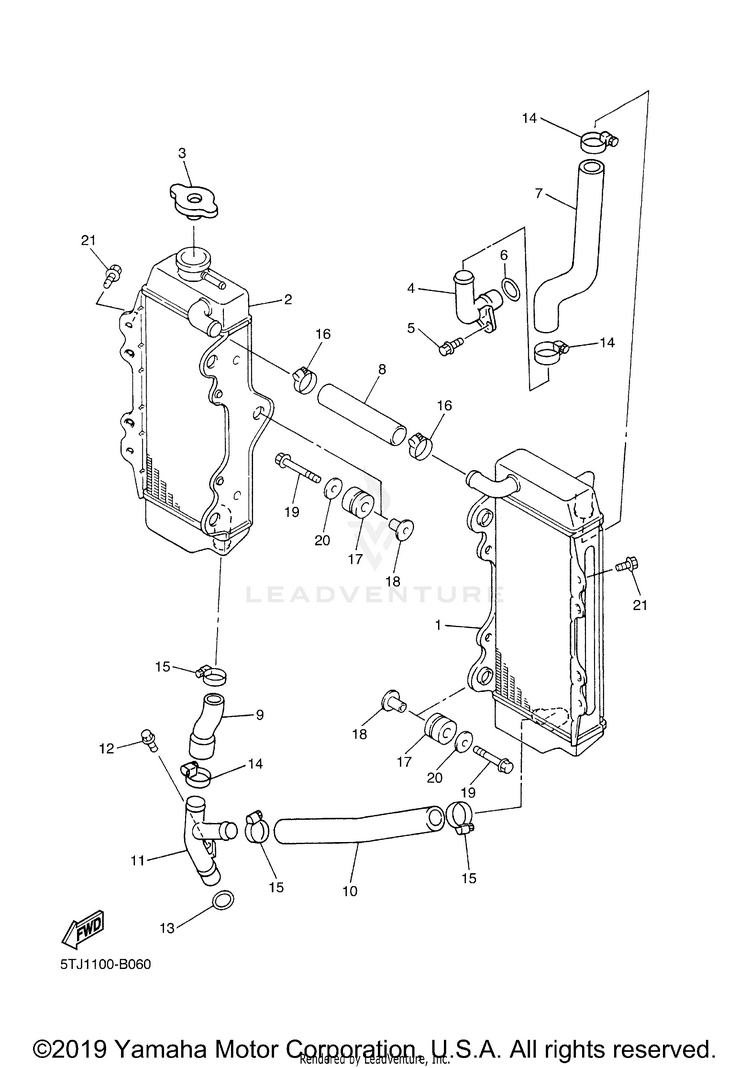

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15TA-1240A-00-00RADIATOR ASSY$324.99$270.00Not Shipping
25TA-12461-00-00RADIATOR ASSY$303.47$247.78Not Shipping
34FL-12462-00-00

(replaces part #
5HD-12462-00-00)

CAP, RADIATOR$68.99$53.8110+ In-Stock
42S2-12481-00-00

(replaces part #
5TA-12481-00-00)

PIPE 1$51.99$40.555 In-Stock
591317-06012-00BOLT, HEXAGON SOCKET HEAD$9.49$7.4010+ In-Stock
693210-16500-00O-RING$8.49$6.6210+ In-Stock
75TA-12576-00-00HOSE 1$33.99$26.513 In-Stock
85SG-12579-00-00HOSE 4$7.49$5.846 In-Stock
95TA-12578-00-00HOSE 3$18.99$14.812 In-Stock
105TA-12579-00-00HOSE 4$11.99$9.35Not Shipping
115TJ-12482-00-00

(replaces part #
5TA-12482-00-00)

PIPE 2$98.99$77.21Usually ships in 7-10 business days
1295027-06012-00BOLT, FLANGE$4.20$3.6110+ In-Stock
1393210-16500-00O-RING$8.49$6.6210+ In-Stock
1490450-28001-00

(replaces part #
90450-28014-00)

HOSE CLAMP ASSY$16.49$12.8610+ In-Stock
1590450-22M14-00

(replaces part #
90450-25037-00)

HOSE CLAMP ASSY$17.49$13.6410+ In-Stock
1690450-22M14-00

(replaces part #
90450-22017-00)

HOSE CLAMP ASSY$17.49$13.6410+ In-Stock
1790480-15528-00GROMMET$9.49$7.4010+ In-Stock
1890387-06065-00COLLAR$13.49$10.5210+ In-Stock
1995027-06025-00BOLT, FLANGE$4.16$3.5810+ In-Stock
2090201-06571-00WASHER, PLATE$10.49$8.1810+ In-Stock
2195817-06010-00

(replaces part #
95827-06010-00)

BOLT,FLANGE$5.49$4.2810+ In-Stock
