2007 Yamaha V-Star Custom XVS1100 Camshaft Chain OEM Parts Diagram

Submodel V STAR 1100 CUSTOM CA - XVS11WC - 2007

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CAMSHAFT CHAIN

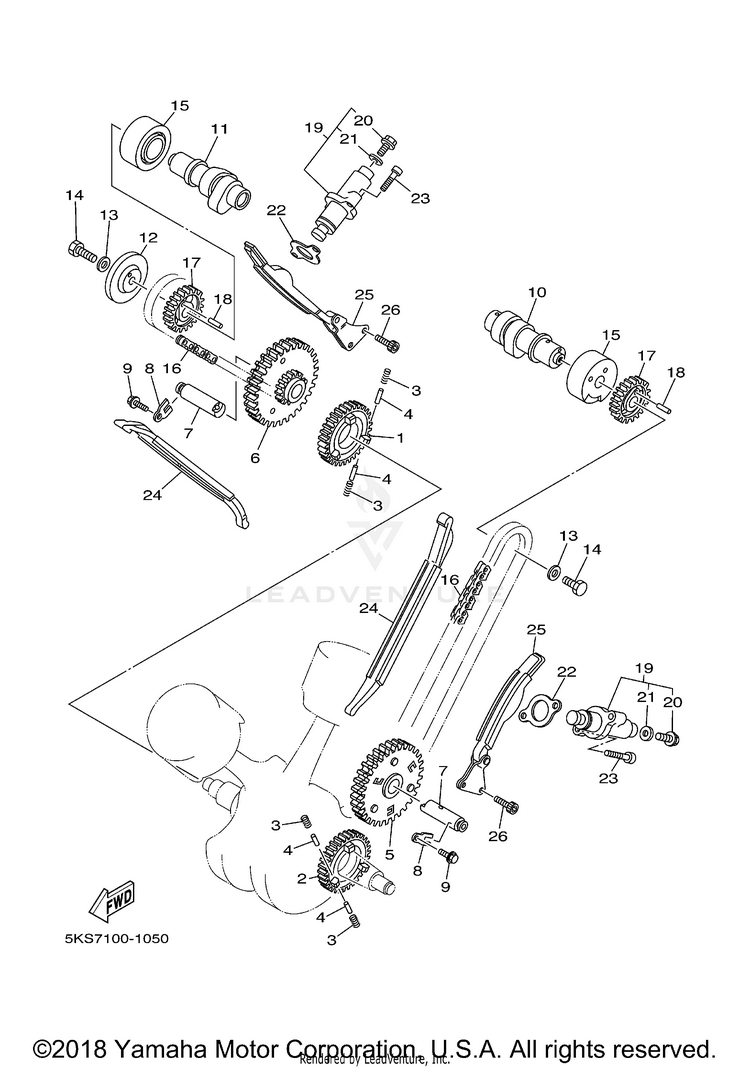

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14X7-11536-00-00GEAR, DRIVE (35T)$113.99$88.91Usually ships in 7-10 business days
24X7-11534-00-00GEAR, BREAKER DRIVE (35T)$91.99$71.75Usually ships in 7-10 business days
390501-21133-00SPRING, COMPRESSION$9.49$8.54Usually ships in 7-10 business days
493605-10090-00PIN, DOWEL$9.49$7.406 In-Stock
55EL-11540-01-00CAM CHAIN SPROCKET ASSY 1$300.99$234.77Usually ships in 7-10 business days
65EL-11550-01-00CAM CHAIN SPROCKET ASSY 2$318.99$248.81Usually ships in 7-10 business days
75EL-12247-00-00SHAFT, TENSIONER$91.99$71.75Usually ships in 7-10 business days
890209-06205-00WASHER$2.60$2.34Usually ships in 7-10 business days
990105-06154-00BOLT, FLANGE$6.49$5.064 In-Stock
105EL-12171-00-00CAMSHAFT 1$260.99$203.57Usually ships in 7-10 business days
115EL-12181-00-00CAMSHAFT 2$184.99$144.29Usually ships in 7-10 business days
1242X-11145-00-00PLATE, BREATHER 2$30.99$25.41Usually ships in 7-10 business days
1390201-10774-00

(replaces part #
90201-10591-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
1490101-10303-00BOLT$10.49$8.184 In-Stock
1590380-25125-00BUSH, SOLID$62.99$49.13Usually ships in 7-10 business days
1694591-49098-00CHAIN$38.99$31.97Usually ships in 7-10 business days
175EL-12176-00-00SPROCKET, CAM CHAIN$75.99$59.27Usually ships in 7-10 business days
1893604-12037-00PIN, DOWEL$9.49$7.405 In-Stock
195EL-12210-01-00TENSIONER ASSY, CAM CHAIN$207.99$162.23Usually ships in 7-10 business days
205EL-12228-00-00BOLT$3.50$3.0110+ In-Stock
215EL-12214-00-00GASKET$8.49$6.6210+ In-Stock
224FM-12213-00-00GASKET, TENSIONER CASE$9.49$7.4010+ In-Stock
2391314-06025-00BOLT, HEXAGON SOCKET HEAD$9.49$7.407 In-Stock
245EL-12231-00-00GUIDE, STOPPER 1$51.99$40.55Usually ships in 7-10 business days
255EL-12241-01-00GUIDE, STOPPER 2$111.99$87.35Usually ships in 7-10 business days
2691314-06016-00BOLT, HEXAGON SOCKET HEAD$9.49$7.406 In-Stock
