2007 Yamaha V-Star Custom XVS1100 Front Master Cylinder OEM Parts Diagram

Submodel V STAR 1100 CUSTOM CA - XVS11WC - 2007

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

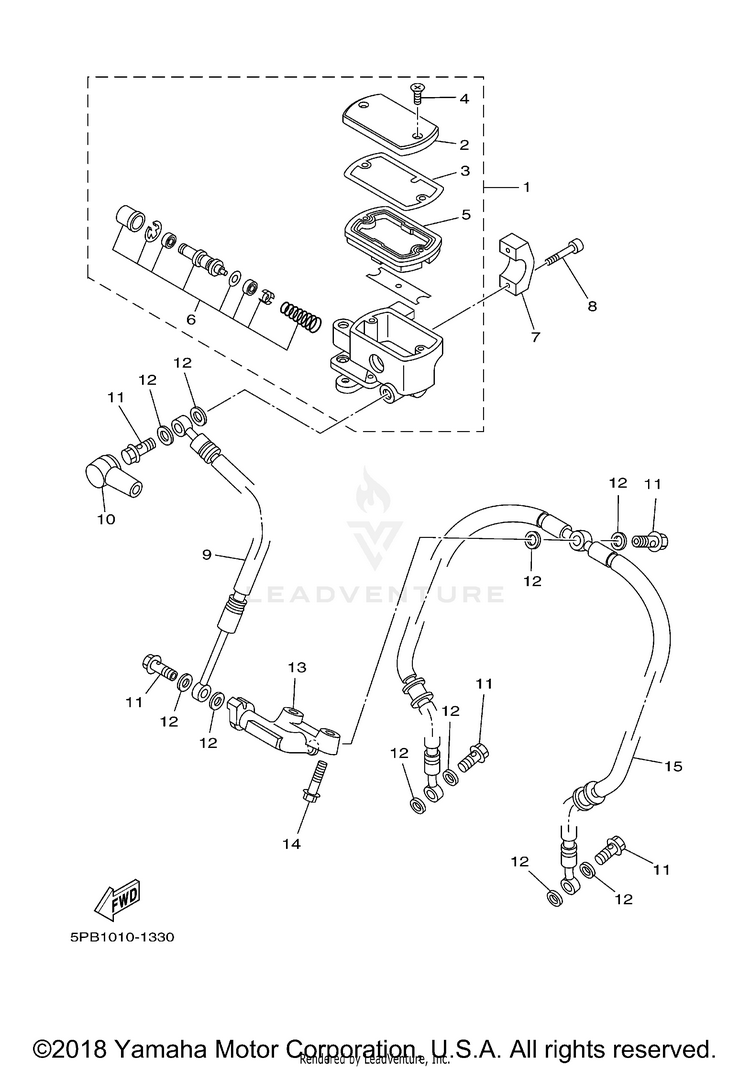

FRONT MASTER CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13D8-25870-11-00

(replaces part #
4TR-25870-01-00)

MASTER CYLINDER SUB ASSY$334.99$261.29Usually ships in 7-10 business days
24TR-25852-01-00CAP, RESERVOIR$70.99$55.37Usually ships in 7-10 business days
34BH-25815-00-00SEAL, PISTON$37.99$31.15Usually ships in 7-10 business days
44TR-2589H-00-00SCREW$7.49$5.844 In-Stock
54BH-25854-02-00DIAPHRAGM, RESERVOIR$45.99$37.71Usually ships in 7-10 business days
62KR-25807-00-00

(replaces part #
2KR-W0041-00-00)

CYLINDER KIT, MASTER$89.99$70.19Usually ships in 7-10 business days
74TR-25867-00-00HOLDER$18.99$15.57Usually ships in 7-10 business days
891314-06025-00BOLT, HEXAGON SOCKET HEAD$9.49$7.407 In-Stock
95PB-25872-00-00HOSE, BRAKE 1$81.99$63.95Usually ships in 7-10 business days
104L0-25862-02-00

(replaces part #
4L0-25862-01-00)

BOOT, MASTER CYLINDER-$4.983 In-Stock
1190401-10020-00BOLT, UNION$10.49$8.602 In-Stock
1290430-10005-00GASKET$9.49$7.4010+ In-Stock
135PB-25885-00-00JOINT$55.99$43.67Usually ships in 7-10 business days
1495817-06025-00

(replaces part #
95807-06025-00)

BOLT, FLANGE$5.49$4.2810+ In-Stock
155PB-25873-00-00HOSE, BRAKE 2$152.99$119.33Usually ships in 7-10 business days
