2007 Yamaha V-Star Custom XVS1100 Headlight OEM Parts Diagram

Submodel V STAR 1100 CUSTOM CA - XVS11WC - 2007

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HEADLIGHT

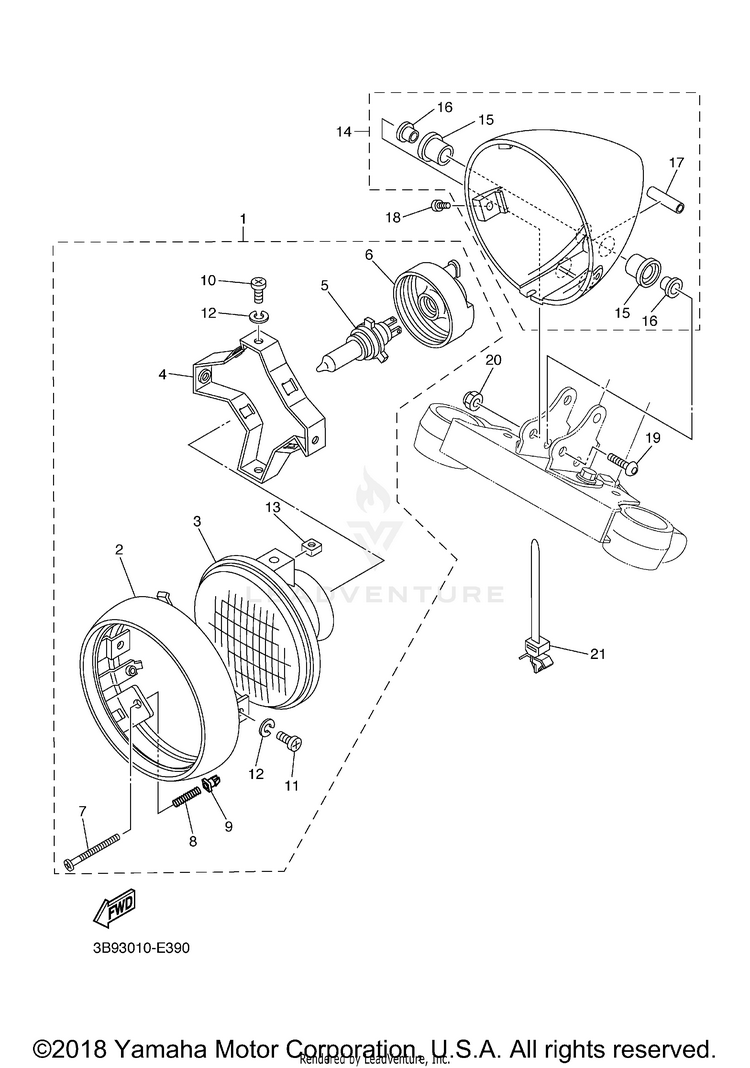

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15KP-84310-01-00HEADLIGHT UNIT ASSY$323.99$269.47Usually ships in 7-10 business days
25JX-84315-01-00RIM, HEADLIGHT$166.99$130.25Usually ships in 7-10 business days
35KP-84321-00-00LENS ASSY$128.99$100.61Usually ships in 7-10 business days
45JX-84316-00-00BRACKET$45.99$37.71Usually ships in 7-10 business days
58V0-84314-10-00

(replaces part #
5V2-84314-00-XX)

BULB, HEADLIGHT (12V-60/55W) | (H4) HALOGEN$75.99$60.93Usually ships in 7-10 business days
64JG-84397-00-00COVER, SOCKET$15.49$12.70Usually ships in 7-10 business days
790157-04001-00

(replaces part #
341-84331-60-00)

SCREW, ADJUSTING$9.49$7.404 In-Stock
8341-84332-60-00

(replaces part #
5G2-84332-60-00)

SPRING, SCREW$10.99$8.576 In-Stock
947J-84334-00-00NUT, ADJUSTING$6.99$6.29Usually ships in 7-10 business days
104KG-84365-00-00SCREW$3.15$2.84Usually ships in 7-10 business days
1150W-84333-00-00SCREW$8.49$7.64Usually ships in 7-10 business days
1292995-06100-00

(replaces part #
92902-06100-00)

WASHER, SPRING$3.55$3.0510+ In-Stock
134KG-84334-00-00NUT, ADJUSTING$7.49$6.74Usually ships in 7-10 business days
145JX-84330-00-00BODY ASSY$265.99$207.47Usually ships in 7-10 business days
1542X-84345-00-00DAMPER, HEADLIGHT$5.99$5.39Usually ships in 7-10 business days
161FK-84338-00-00COLLAR, BODY FITTING$3.65$3.28Usually ships in 7-10 business days
175JX-84388-00-00COLLAR 1$5.99$5.39Usually ships in 7-10 business days
1890157-05011-00SCREW, PAN HEAD$2.30$2.07Usually ships in 7-10 business days
1992014-06045-00BOLT, BUTTON HEAD$3.60$3.24Usually ships in 7-10 business days
2090176-06047-00NUT, CROWN$10.49$8.60Usually ships in 7-10 business days
2190464-10112-00

(replaces part #
90464-12089-00)

CLAMP$9.49$7.404 In-Stock
