2007 Yamaha V-Star Custom XVS1100 Taillight OEM Parts Diagram

Submodel V STAR 1100 CUSTOM CA - XVS11WC - 2007

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

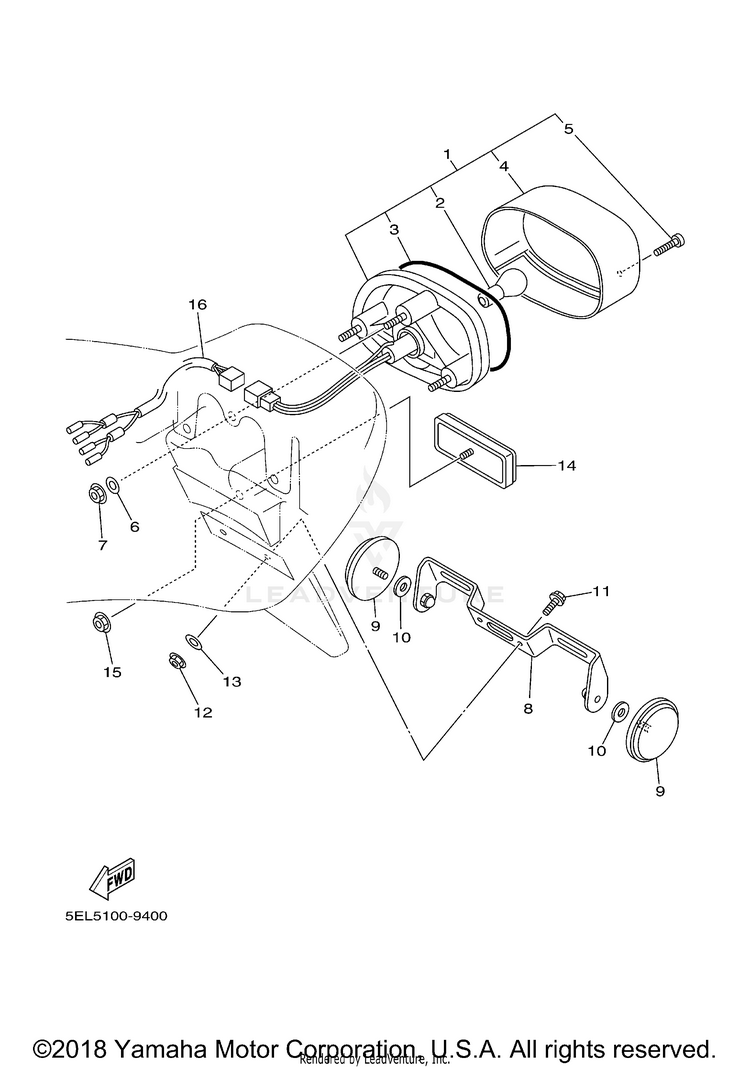

TAILLIGHT

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14TV-84700-00-00TAILLIGHT ASSY$164.99$128.69Usually ships in 7-10 business days
2256-84714-61-00

(replaces part #
256-84714-60-00)

BULB (12V-27/8W)$12.99$10.1310+ In-Stock
34TX-84723-00-00

(replaces part #
4TR-84723-00-00)

GASKET, TAIL LENS$5.49$4.283 In-Stock
44TR-84733-00-00LENS, TAILLIGHT$24.99$19.497 In-Stock
597707-40520-00

(replaces part #
97706-40620-00)

SCREW, TAPPING$10.49$8.186 In-Stock
690201-06380-00WASHER, PLATE-$0.7110+ In-Stock
795617-06100-00

(replaces part #
95607-06100-00)

NUT, U$2.90$2.4910+ In-Stock
85EL-84751-00-00BRACKET, LICENSE$36.99$30.33Usually ships in 7-10 business days
9449-85131-02-00REFLECTOR, REAR 1$33.99$26.514 In-Stock
1090201-05033-00WASHER, SPECIAL$11.49$8.964 In-Stock
1195027-06014-00BOLT, FLANGE$0.95$0.825 In-Stock
1295617-06100-00

(replaces part #
95607-06100-00)

NUT, U$2.90$2.4910+ In-Stock
1390201-06095-00

(replaces part #
90201-06063-00)

WASHER, PLATE$9.49$7.407 In-Stock
143Y6-85130-02-00REAR REFLECTOR ASSY$30.99$24.173 In-Stock
1595707-05500-00NUT, FLANGE$9.49$7.4010+ In-Stock
165KP-84717-00-00CORD, TAILLIGHT$37.99$31.15Usually ships in 7-10 business days
