2007 Yamaha V-Star Custom XVS1100 Oil Cleaner OEM Parts Diagram

Submodel V STAR 1100 CUSTOM CA - XVS11WC - 2007

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

OIL CLEANER

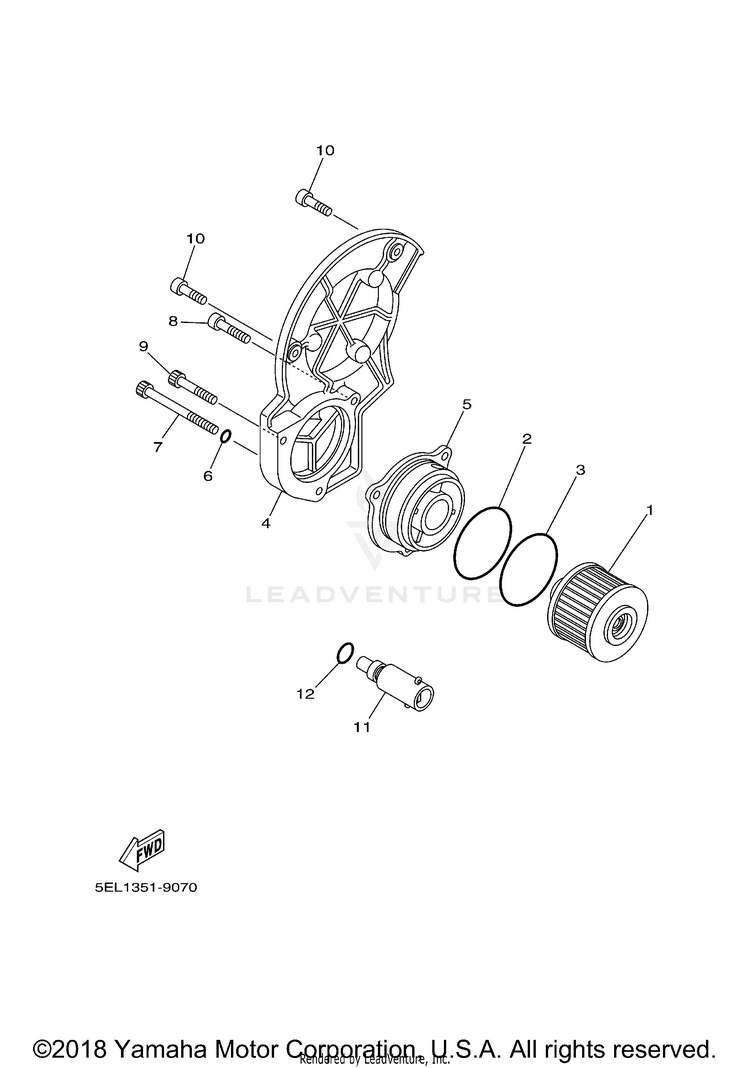

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14X7-13440-90-00

(replaces part #
4X7-13440-01-00)

ELEMENT ASSY, OIL CLEANER$15.49$13.2810+ In-Stock
AFTERMARKET ALTERNATIVE
$5.99$3.9910+ In-Stock
293210-56459-00O-RING$14.49$11.3010+ In-Stock
393210-54452-00O-RING$11.49$8.9610+ In-Stock
45EL-13447-00-00COVER, OIL ELEMENT$203.99$159.11Usually ships in 7-10 business days
55EL-13448-00-00CAP$125.99$98.27Usually ships in 7-10 business days
693210-07135-00O-RING$6.99$5.4510+ In-Stock
AFTERMARKET ALTERNATIVE
$10.45$4.9910+ In-Stock
790109-06667-00BOLT$11.49$9.42Usually ships in 7-10 business days
891314-06040-00BOLT, HEXAGON SOCKET HEAD$9.49$7.4010+ In-Stock
991314-06050-00BOLT, HEXAGON SOCKET HEAD$9.49$7.405 In-Stock
1091314-06020-00BOLT, HEXAGON SOCKET HEAD$2.65$2.5710+ In-Stock
1111H-13490-00-00

(replaces part #
4G0-13490-01-00)

RELIEF VALVE ASSY$90.99$70.97Usually ships in 7-10 business days
1293210-10096-00O-RING$4.05$3.4810+ In-Stock
