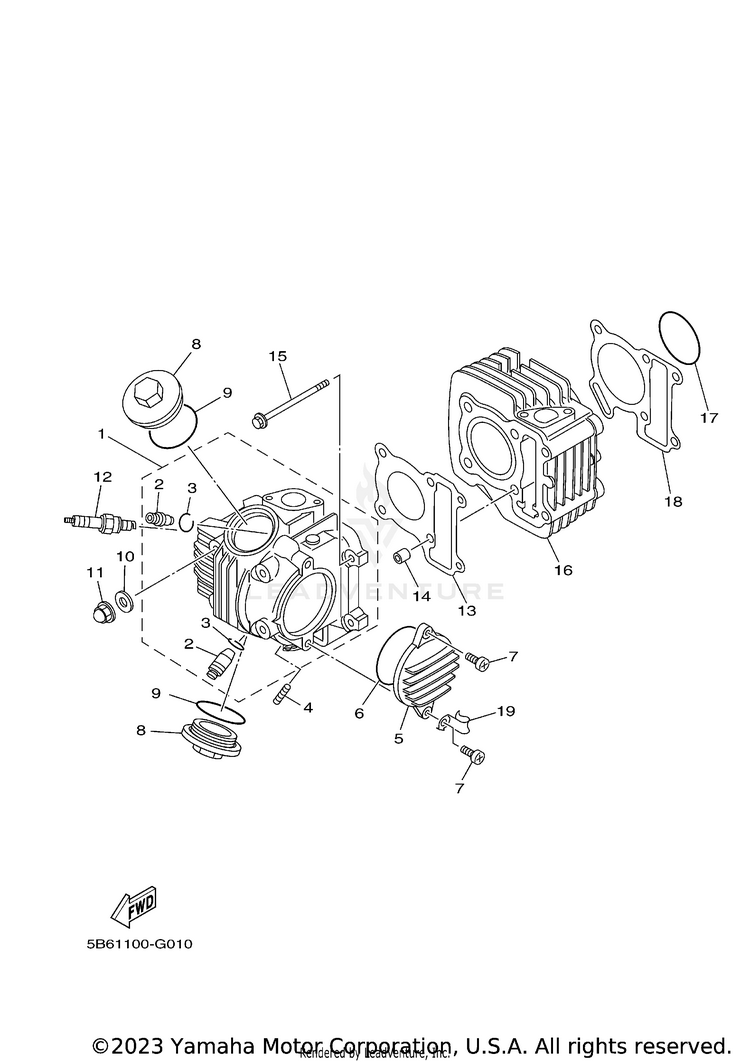

CYLINDER HEAD

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15TP-E1111-30-00HEAD, CYLINDER 1$207.99$171.14Usually ships in 7-10 business days
24ST-11134-11-00GUIDE, VALVE 2$79.99$62.392 In-Stock
393440-10153-00CIRCLIP$2.60$2.2410+ In-Stock
422F-14651-00-00

(replaces part #
90116-06804-00)

BOLT, STUD$7.49$5.849 In-Stock
54ST-E1185-01-00

(replaces part #
4ST-E1185-00-00)

COVER, CYLINDER HEAD SIDE 1$6.49$5.84Usually ships in 7-10 business days
693210-63556-00

(replaces part #
93210-638G6-00)

O-RING-$7.0610+ In-Stock
798507-06016-00SCREW,PAN HEAD$3.48$2.9910+ In-Stock
84ST-E1186-00-00COVER, CYLINDER HEAD SIDE 2$9.99$8.99Usually ships in 7-10 business days
993210-44704-00

(replaces part #
93210-448G4-00)

O-RING$8.49$7.3710+ In-Stock
1090201-080L7-00

(replaces part #
90201-08609-00)

WASHER, PLATE$4.05$3.4810+ In-Stock
1190176-08026-00NUT, CROWN$16.49$12.8610+ In-Stock
12CR6-HSA00-00-00

(replaces part #
NGK-CR6HS-A0-00)

PLUG SPARK (NGK CR6HSA)$5.99$4.6710+ In-Stock
135TN-E1181-00-00

(replaces part #
3S0-E1181-00-00)

GASKET, CYLINDER HEA$23.99$18.716 In-Stock
AFTERMARKET ALTERNATIVE
$19.99$17.9910+ In-Stock
1491810-14809-00PIN, DOWEL$2.95$2.5410+ In-Stock
1595027-06090-00BOLT, FLANGE$2.80$2.418 In-Stock
165TP-E1310-01-00CYLINDER$371.99$308.20Usually ships in 7-10 business days
1793210-56459-00

(replaces part #
93210-568G8-00)

O-RING$14.49$11.3010+ In-Stock
184ST-E1351-02-00GASKET, CYLINDER$6.49$5.066 In-Stock
AFTERMARKET ALTERNATIVE
$19.99$17.9910+ In-Stock
1990465-08230-00CLAMP$5.49$4.282 In-Stock
