2009 Yamaha TTR 110E Steering OEM Parts Diagram

Submodel TTR110E - TTR110EY - 2009

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING

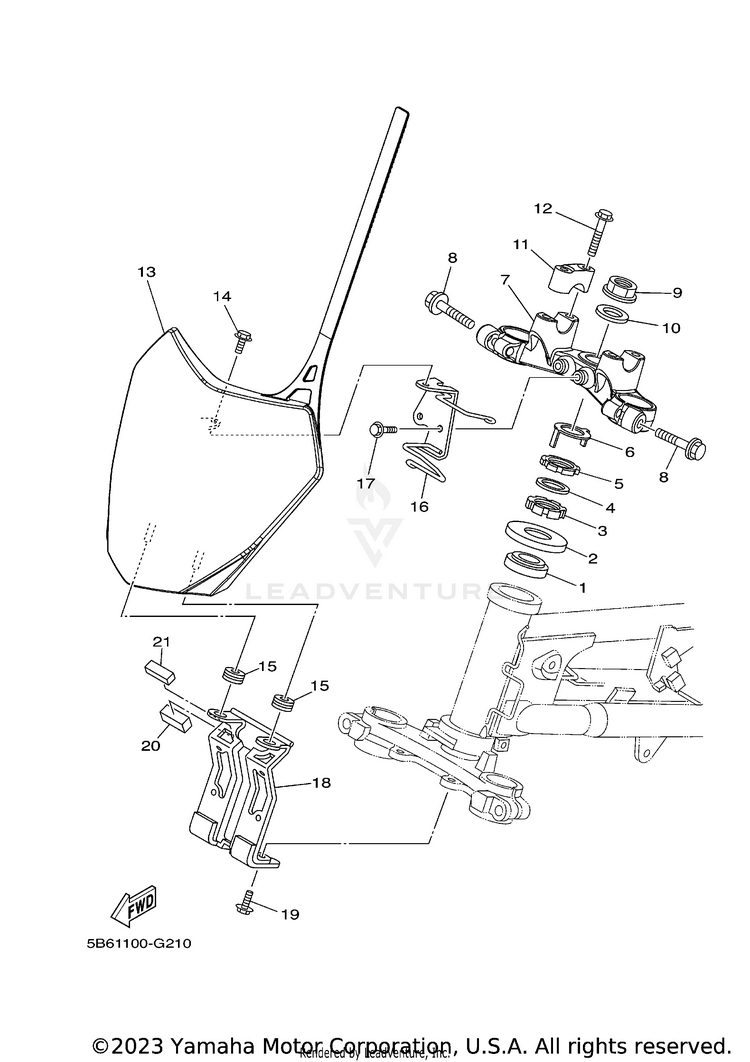

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
193399-99949-00BEARING$63.99$49.914 In-Stock
AFTERMARKET ALTERNATIVE
$48.00$39.9910+ In-Stock
25HP-23416-00-00COVER, BALL RACE 2$25.99$21.31Usually ships in 7-10 business days
390179-25004-00

(replaces part #
90179-25033-00)

NUT$26.99$21.055 In-Stock
490202-26142-00WASHER, PLATE$10.49$8.187 In-Stock
590179-25615-00NUT$29.99$24.59Usually ships in 7-10 business days
63YF-23418-00-00WASHER, SPECIAL$19.99$16.39Usually ships in 7-10 business days
75B6-23435-01-00

(replaces part #
5B6-23435-00-00)

CROWN, HANDLE$198.99$155.21Usually ships in 7-10 business days
895022-08035-00BOLT, FLANGE$4.10$3.534 In-Stock
990179-22412-00NUT$22.99$17.932 In-Stock
1090201-22018-00

(replaces part #
90201-220T0-00)

WASHER, PLATE$6.49$5.068 In-Stock
111E6-23441-10-35HOLDER, HANDLE UPPER | SL FOR DPBSE$25.99$20.274 In-Stock
1295022-08035-00BOLT, FLANGE$4.10$3.534 In-Stock
135B6-23485-00-00PLATE, NUMBER$44.99$35.097 In-Stock
1495817-06012-00

(replaces part #
95802-06012-00)

BOLT, FLANGE$1.95$1.7710+ In-Stock
1590480-13428-00GROMMET$9.49$7.409 In-Stock
165B6-2317E-00-00STAY 1$76.99$60.05Usually ships in 7-10 business days
1795817-06012-00

(replaces part #
95802-06012-00)

BOLT, FLANGE$1.95$1.7710+ In-Stock
185B6-23486-00-00STAY, PLATE$129.99$101.39Usually ships in 7-10 business days
1995817-06012-00

(replaces part #
95802-06012-00)

BOLT, FLANGE$1.95$1.7710+ In-Stock
205B6-23445-00-00DAMPER$5.99$5.39Usually ships in 7-10 business days
215B6-23455-00-00DAMPER$5.99$5.39Usually ships in 7-10 business days
