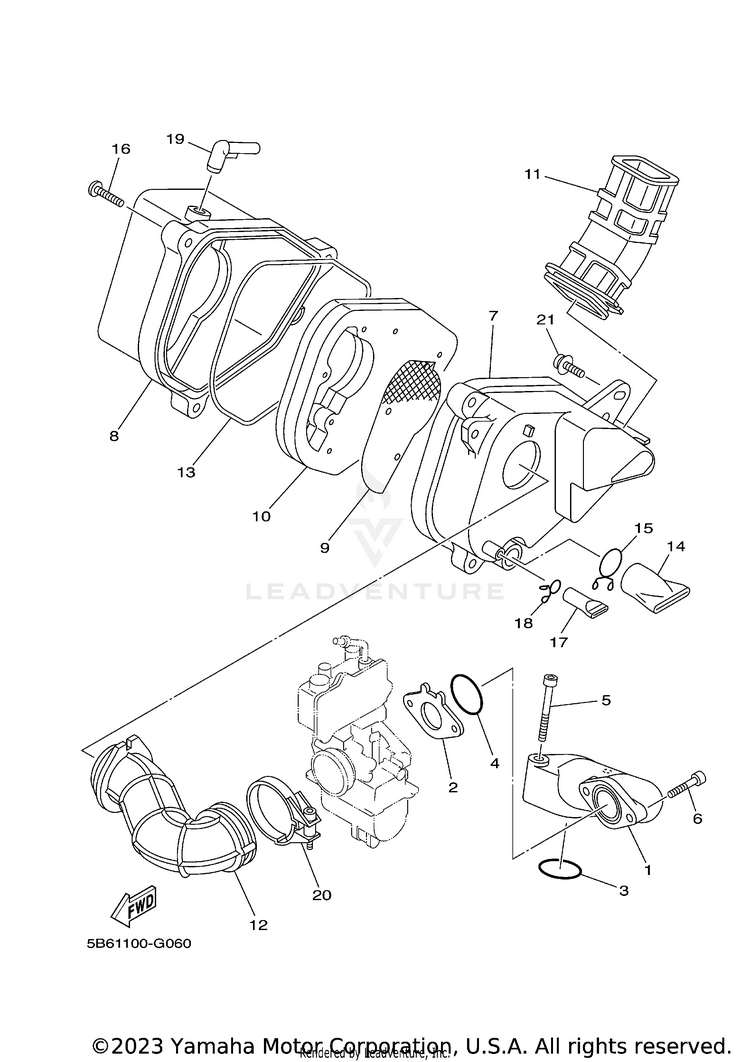

2009 Yamaha TTR 110E Intake OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	5B6-E3586-00-00	JOINT, CARBURETOR 1	-	$8.72	5 In-Stock
2	4GL-13595-01-00	JOINT	$24.99	$19.49	10+ In-Stock
3	93210-25552-00 (replaces part # 93210-258G2-00)	O-RING	$14.49	$11.30	10+ In-Stock
4	93210-25552-00	O-RING	$14.49	$11.30	10+ In-Stock
5	91317-06040-00	BOLT, HEX. SOCKET HEAD	$4.05	$3.48	10+ In-Stock
6	91317-06025-00	BOLT, HEXAGON SOCKET HEAD	$2.65	$2.28	10+ In-Stock
7	5B6-14411-00-00	CASE, AIR CLEANER 1	$100.99	$78.77	Usually ships in 7-10 business days
8	5B6-14412-00-00	CAP, CLEANER CASE 1	$25.99	$20.27	1 In-Stock
9	5B6-14472-00-00	PLATE, ELEMENT	$14.49	$11.30	3 In-Stock
10	5B6-14451-00-00	ELEMENT, AIR CLEANER	$11.49	$8.96	9 In-Stock
11	5B6-14437-01-00 (replaces part # 5B6-14437-00-00)	DUCT	$34.99	$28.69	Usually ships in 7-10 business days
12	5B6-14453-01-00 (replaces part # 5B6-14453-00-00)	JOINT, AIR CLEANER 1	$42.99	$33.53	8 In-Stock
13	1VJ-14462-00-00 (replaces part # 3LD-14462-00-00)	SEAL	$19.99	$15.59	10+ In-Stock
14	59V-14457-00-00	SEAL	$7.49	$5.84	10+ In-Stock
15	90467-22080-00	CLIP	$9.49	$7.40	10+ In-Stock
16	98907-06025-00	SCREW, BIND	$9.49	$7.40	10+ In-Stock
17	5XT-1443E-00-00	PIPE, DRAIN	$7.49	$5.84	3 In-Stock
18	90467-11106-00	CLIP	$4.05	$3.48	10+ In-Stock
19	5Y1-14419-00-00	PIPE	$8.49	$7.64	3 In-Stock
20	4TR-13474-02-00 (replaces part # 4TR-13474-01-00)	BAND	$12.99	$10.13	10+ In-Stock
21	90159-06056-00	SCREW, WITH WASHER	$9.49	$7.40	6 In-Stock
