2009 Yamaha TTR 110E Starter Clutch OEM Parts Diagram

Submodel TTR110E - TTR110EY - 2009

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STARTER CLUTCH

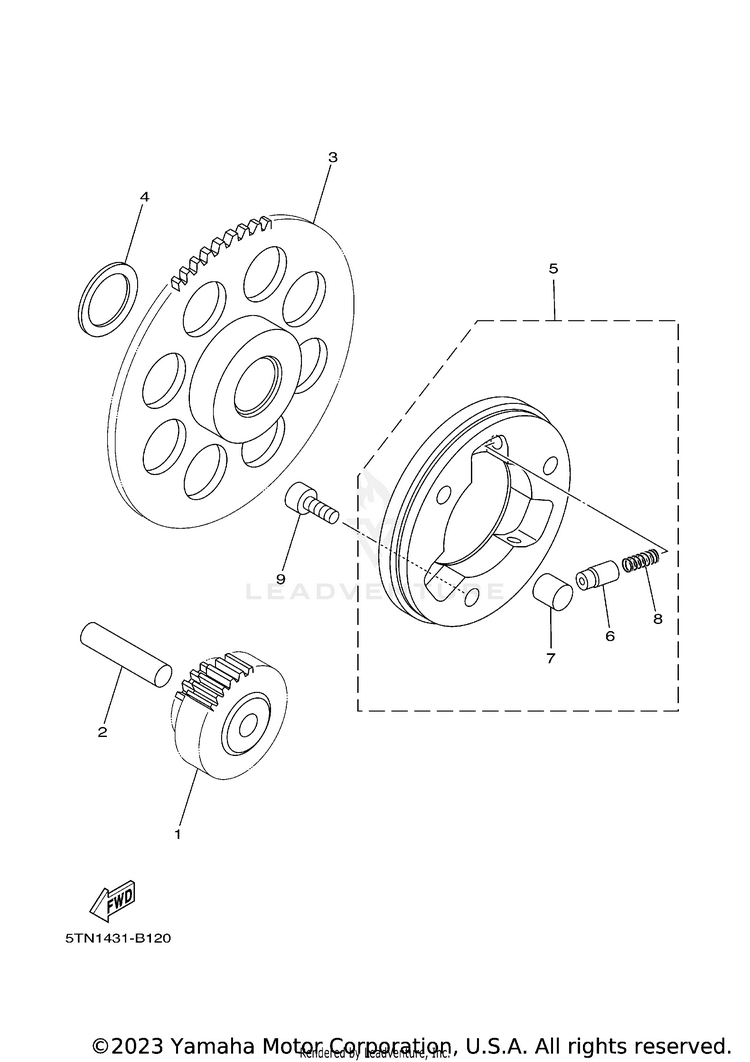

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15TN-E5512-00-00

(replaces part #
2P2-E5512-00-00)

GEAR, IDLER 1$59.99$46.79Usually ships in 7-10 business days
293608-43157-00PIN, DOWEL$4.60$4.14Usually ships in 7-10 business days
35TP-E5524-00-00WHEEL, STARTER$28.99$23.77Usually ships in 7-10 business days
4296-15644-00-00

(replaces part #
4WH-E5644-00-00)

SHIM$5.99$5.39Usually ships in 7-10 business days
55HV-E5580-00-00STARTER CLUTCH OUTER ASSY$204.99$168.19Usually ships in 7-10 business days
63AY-15583-00-00

(replaces part #
5HV-E5583-00-00)

CAP, STARTER CLUTCH SPRING$2.90$2.496 In-Stock
793610-10174-00PIN, DOWEL$4.60$3.965 In-Stock
890501-02639-00SPRING, COMPRESSION$3.55$3.057 In-Stock
991317-06012-00BOLT, HEXAGON SOCKET HEAD$9.49$7.4010+ In-Stock
