2009 Yamaha TTR 110E Shift Cam Fork OEM Parts Diagram

Submodel TTR110E - TTR110EY - 2009

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SHIFT CAM FORK

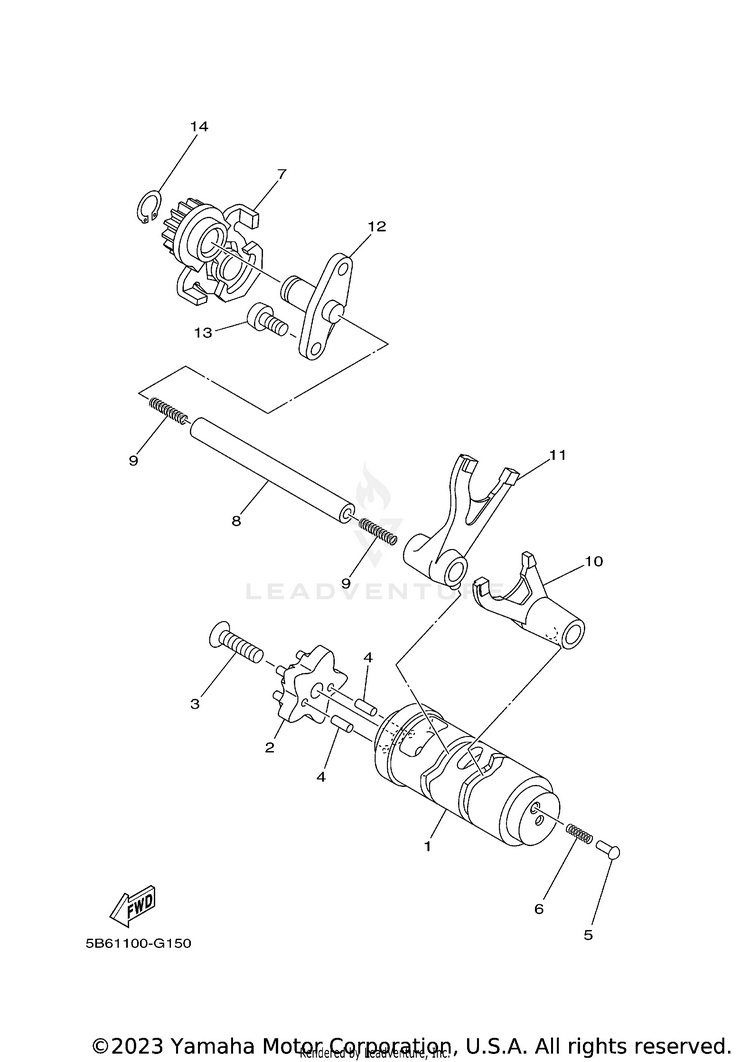

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15B6-E8540-00-00SHIFT CAM ASSY$200.99$156.77Usually ships in 7-10 business days
25TN-E8185-10-00

(replaces part #
2P2-E8185-00-00)

SEGMENT$50.99$39.77Usually ships in 7-10 business days
390149-06N01-00SCREW$2.55$2.30Usually ships in 7-10 business days
493604-12037-00

(replaces part #
93604-12831-00)

PIN, DOWEL$9.49$7.405 In-Stock
54BA-18542-00-00POINT, NEUTRAL$14.49$11.304 In-Stock
690501-06022-00SPRING, COMPRESSION$9.49$7.4010+ In-Stock
75TP-E8120-00-00SHIFT LEVER ASSY-$87.79Usually ships in 7-10 business days
85TP-E8531-00-00BAR, SHIFT FORK GUIDE 1$11.49$9.42Usually ships in 7-10 business days
990501-06800-00SPRING, COMPRESSION$1.55$1.40Usually ships in 7-10 business days
105LM-E8511-00-00FORK, SHIFT 1$12.99$10.65Usually ships in 7-10 business days
115LM-E8512-00-00FORK, SHIFT 2$13.49$11.06Usually ships in 7-10 business days
125TP-E818A-00-00BOSS$18.49$15.16Usually ships in 7-10 business days
1392017-06016-00BOLT, HEX. SOCKET BUTTON$9.49$7.4010+ In-Stock
1499009-12400-00CIRCLIP$3.59$3.0910+ In-Stock
