HEADLIGHT

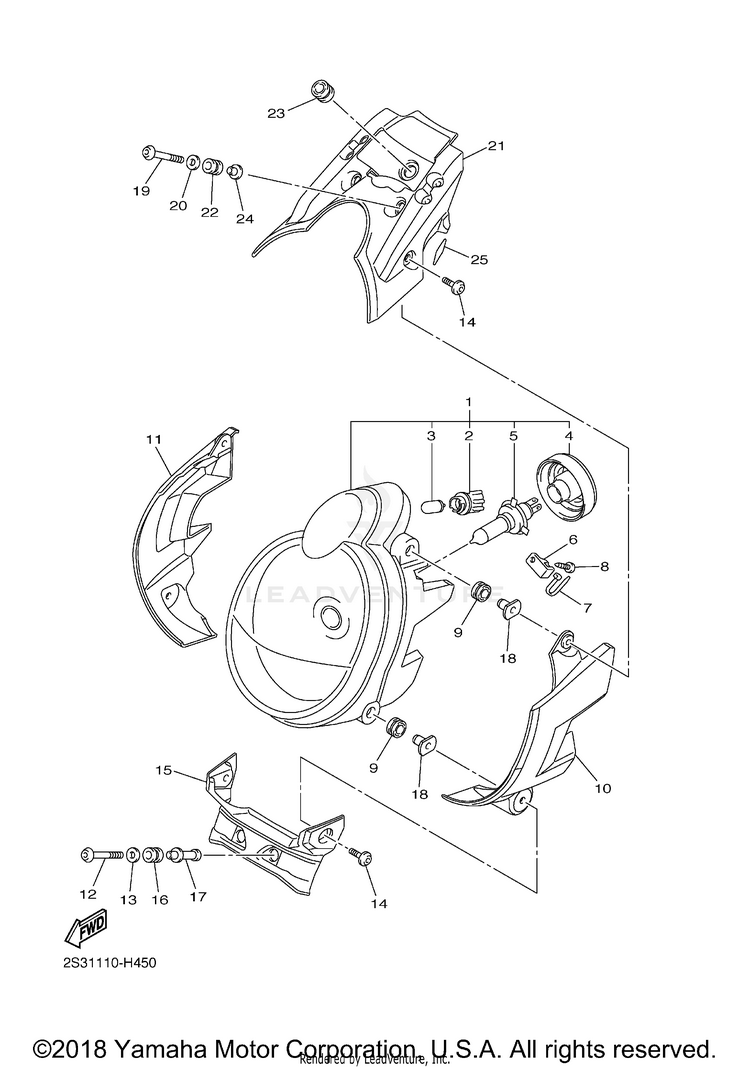

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12S3-84300-00-00HEADLIGHT ASSY$524.99$439.28Usually ships in 7-10 business days
25JW-84346-00-00SOCKET, PILOT LIGHT$16.49$13.52Usually ships in 7-10 business days
34SV-84347-00-00

(replaces part #
5DM-84347-00-00)

BULB (12V-5W)$9.49$8.544 In-Stock
45JW-84397-00-00COVER, SOCKET$32.99$27.05Usually ships in 7-10 business days
58V0-84314-10-00

(replaces part #
4K0-84314-G0-00)

BULB, HEADLIGHT (12V-60/55W)$75.99$60.93Usually ships in 7-10 business days
62S3-8413G-00-00PLATE, GUIDE$4.15$3.74Usually ships in 7-10 business days
790464-66001-00CLAMP$1.99$1.79Usually ships in 7-10 business days
897780-50116-00

(replaces part #
97702-50516-00)

SCREW, TAPPING$1.49$1.288 In-Stock
94XV-83513-00-00DAMPER$8.49$6.6210+ In-Stock
102S3-23121-00-00COVER, UPPER 1$167.99$133.13Usually ships in 7-10 business days
112S3-23131-00-00COVER, UPPER 2$167.99$133.13Usually ships in 7-10 business days
1290111-06106-00BOLT, HEX. SOCKET BUTTON$6.49$5.844 In-Stock
1390201-06049-00

(replaces part #
90201-065F1-00)

WASHER, PLATE$3.75$3.38Usually ships in 7-10 business days
1490149-06302-00SCREW$6.49$5.069 In-Stock
152S3-23174-00-00STAY, HEADLIGHT$213.99$166.91Usually ships in 7-10 business days
1690480-13026-00GROMMET$3.60$3.24Usually ships in 7-10 business days
1790387-06234-00COLLAR$13.49$11.06Usually ships in 7-10 business days
1890179-06061-00NUT$17.49$14.34Usually ships in 7-10 business days
1990111-06107-00BOLT, HEX. SOCKET BUTTON$4.05$3.64Usually ships in 7-10 business days
2090201-06049-00

(replaces part #
90201-065F1-00)

WASHER, PLATE$3.75$3.38Usually ships in 7-10 business days
212S3-23437-00-00COVER, CROWN$191.99$151.85Usually ships in 7-10 business days
2290480-13026-00GROMMET$3.60$3.24Usually ships in 7-10 business days
234XV-83513-00-00DAMPER$8.49$6.6210+ In-Stock
2490387-06233-00COLLAR$8.49$7.64Usually ships in 7-10 business days
252S3-23383-00-00COVER, DUST SEAL 1$5.49$4.94Usually ships in 7-10 business days
