2014 Yamaha V-Max Starting Motor OEM Parts Diagram

Submodel VMAX - VMX17ECGY - 2014

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STARTING MOTOR

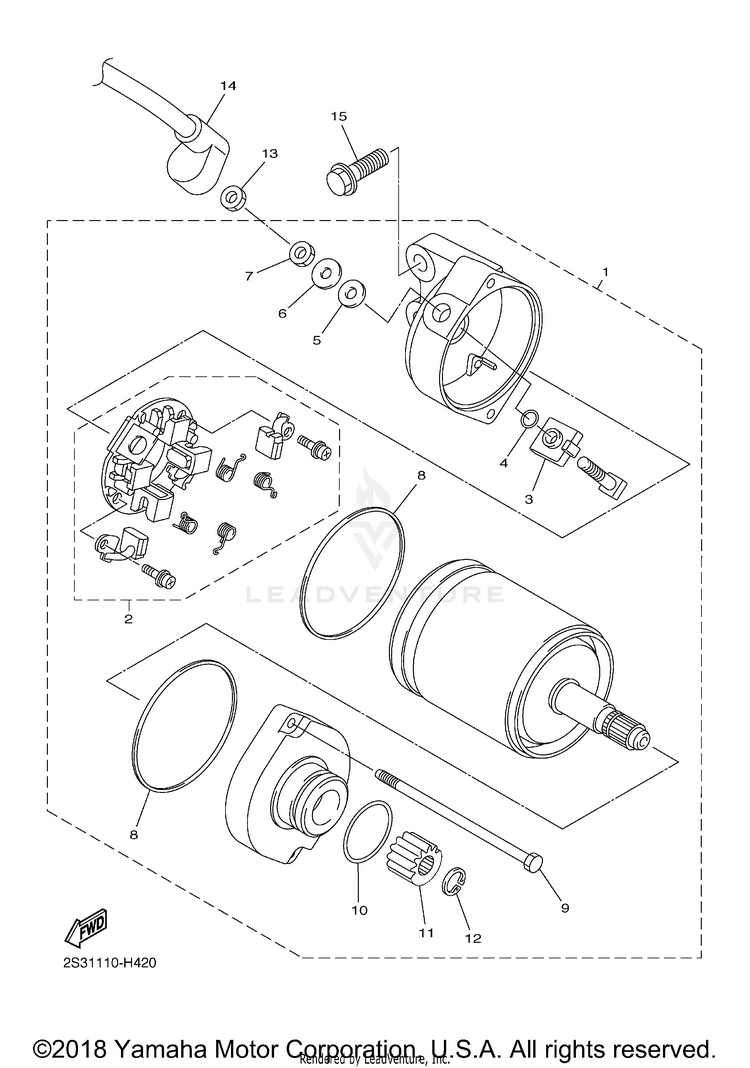

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12S3-81890-00-00MOTOR ASSY$840.99$682.50Usually ships in 7-10 business days
22S3-81801-00-00BRUSH SET$89.99$70.19Usually ships in 7-10 business days
32S3-8182G-00-00BUSH, TERMINAL$5.99$5.39Usually ships in 7-10 business days
493210-06632-00

(replaces part #
93210-06001-00)

O-RING$9.49$7.4010+ In-Stock
58FA-8181L-00-00WASHER, PLAIN$4.85$4.36Usually ships in 7-10 business days
61D7-81835-00-00WASHER$2.90$2.61Usually ships in 7-10 business days
795380-06700-00

(replaces part #
95302-06700-00)

NUT$9.49$7.404 In-Stock
85PX-81861-00-00GASKET$15.49$12.70Usually ships in 7-10 business days
98FA-81846-01-00SCREW$8.49$7.64Usually ships in 7-10 business days
1093210-25711-00O-RING$8.49$6.6210+ In-Stock
115PX-15511-00-00GEAR, STARTING MOTOR$45.99$37.71Usually ships in 7-10 business days
1299009-10800-00CIRCLIP$6.49$5.84Usually ships in 7-10 business days
1395380-06700-00

(replaces part #
95302-06700-00)

NUT$9.49$7.404 In-Stock
142S3-8183G-00-00CORD COMP.$46.99$38.53Usually ships in 7-10 business days
1595022-08030-00BOLT, FLANGE-$4.483 In-Stock
