2014 Yamaha V-Max Taillight OEM Parts Diagram

Submodel VMAX - VMX17ECGY - 2014

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

TAILLIGHT

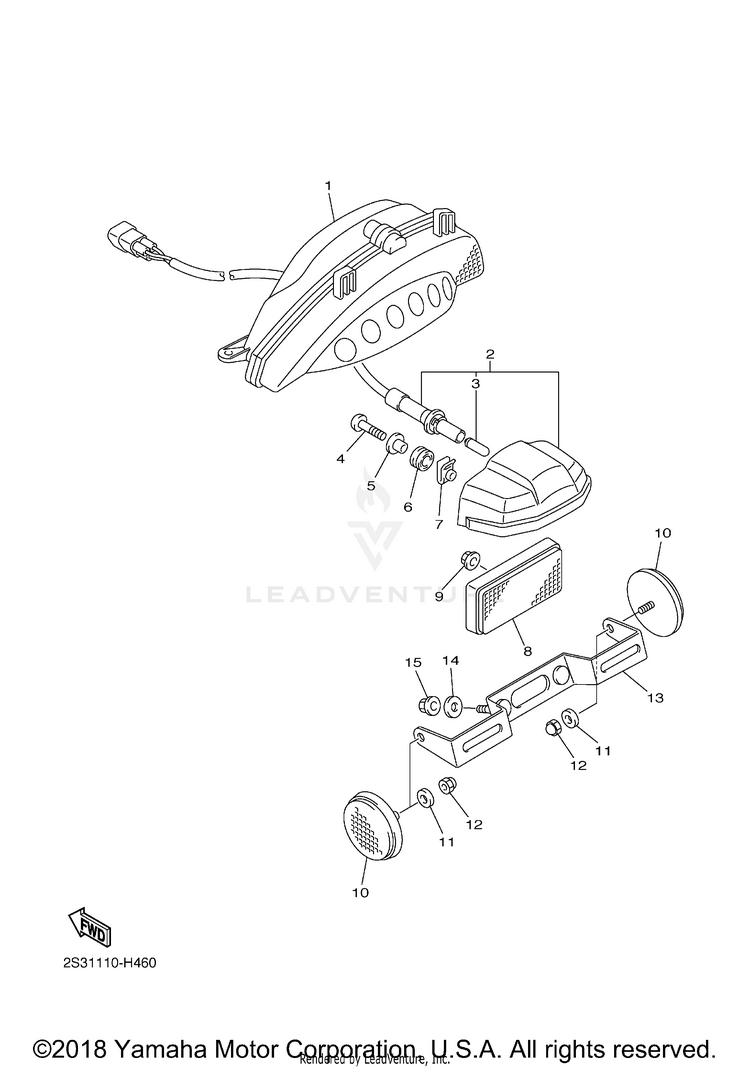

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12S3-84710-00-00TAILLIGHT UNIT ASSY$573.99$463.75Usually ships in 7-10 business days
22S3-84745-00-00LICENSE LIGHT UNIT ASSY$195.99$152.87Usually ships in 7-10 business days
34SV-84347-00-00

(replaces part #
5DM-84347-00-00)

BULB (12V-5W)$9.49$8.544 In-Stock
490111-05026-00BOLT, HEX. SOCKET BUTTON$9.49$7.4010+ In-Stock
590387-05044-00COLLAR$15.49$12.70Usually ships in 7-10 business days
690480-14017-00GROMMET$5.49$4.94Usually ships in 7-10 business days
790183-050A6-00

(replaces part #
90183-05076-00)

NUT, SPRING$2.95$2.547 In-Stock
83Y6-85130-02-00REAR REFLECTOR ASSY$30.99$24.173 In-Stock
995604-05200-00NUT, U FLANGE$2.40$2.16Usually ships in 7-10 business days
10449-85131-02-00REFLECTOR, REAR 1$33.99$26.514 In-Stock
1190201-05040-00WASHER, PLATE$0.70$0.63Usually ships in 7-10 business days
1290176-05001-00NUT, CROWN$8.49$7.64Usually ships in 7-10 business days
132S3-84703-00-00BRACKET$44.99$36.89Usually ships in 7-10 business days
1490201-06057-00WASHER, PLATE$6.49$5.067 In-Stock
1595617-06100-00

(replaces part #
95607-06100-00)

NUT, U$2.90$2.4910+ In-Stock
