2014 Yamaha V-Max Shift Shaft OEM Parts Diagram

Submodel VMAX - VMX17ECGY - 2014

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SHIFT SHAFT

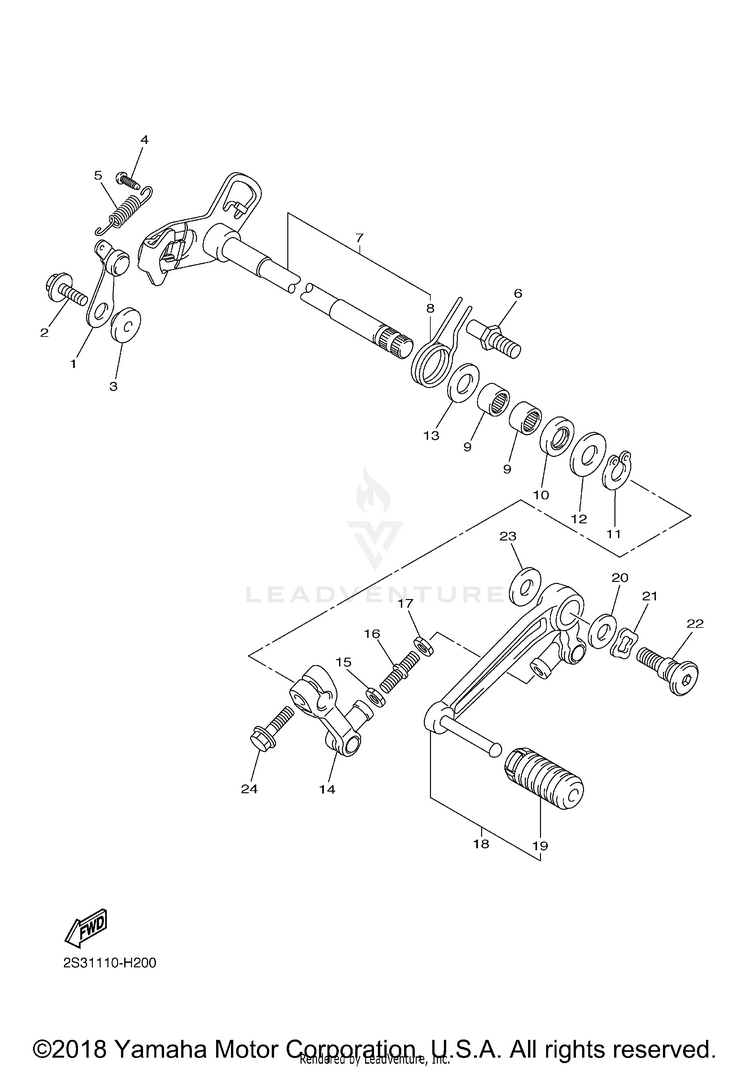

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12S3-18140-00-00STOPPER LEVER ASSY$28.99$23.77Usually ships in 7-10 business days
290159-06028-00

(replaces part #
90159-06027-00)

SCREW, WITH WASHER$8.49$6.623 In-Stock
34NX-18175-00-00SPACER$17.99$14.75Usually ships in 7-10 business days
4132-16346-00-00HOOK, SPRING$10.99$8.578 In-Stock
590506-15002-00SPRING, TENSION$3.80$3.42Usually ships in 7-10 business days
65VK-18127-00-00

(replaces part #
1D7-18127-00-00)

STOPPER, SCREW$15.49$12.70Usually ships in 7-10 business days
72S3-18101-01-00SHIFT SHAFT ASSY$113.99$88.91Usually ships in 7-10 business days
890508-32141-00SPRING, TORSION$9.49$7.402 In-Stock
993317-11295-00BEARING$50.99$39.774 In-Stock
1093102-12106-00OIL SEAL (SD 12-22-5 HS)$12.49$9.7410+ In-Stock
1199002-10600-00CIRCLIP$9.49$7.403 In-Stock
1290201-12575-00WASHER, PLATE$9.49$7.4010+ In-Stock
1390201-127E1-00WASHER, PLATE$4.65$4.0010+ In-Stock
142S3-18112-00-00ARM, SHIFT$87.99$68.63Usually ships in 7-10 business days
1595380-06700-00

(replaces part #
95304-06700-00)

NUT$9.49$7.404 In-Stock
162S3-18115-00-00ROD, SHIFT$19.99$16.39Usually ships in 7-10 business days
1790170-06228-00NUT (COUNTER CLOCKWISE)$10.49$8.18
182S3-18110-00-00SHIFT PEDAL ASSY$153.99$120.11Usually ships in 7-10 business days
192S3-18113-00-00COVER, SHIFT PEDAL$15.49$12.70Usually ships in 7-10 business days
2090201-12013-00WASHER, PLATE$10.49$8.182 In-Stock
2190206-12074-00WASHER, WAVE$10.49$8.18
222S3-27217-10-00

(replaces part #
2S3-27217-00-00)

BOLT$14.99$12.29Usually ships in 7-10 business days
2390201-080H1-00WASHER, PLATE$5.49$4.28
2495022-06020-00BOLT, FLANGE$3.90$3.3510+ In-Stock
