2017 Yamaha YZF-R3 Camshaft Chain OEM Parts Diagram

Submodel R3 - YZFR3HL - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CAMSHAFT CHAIN

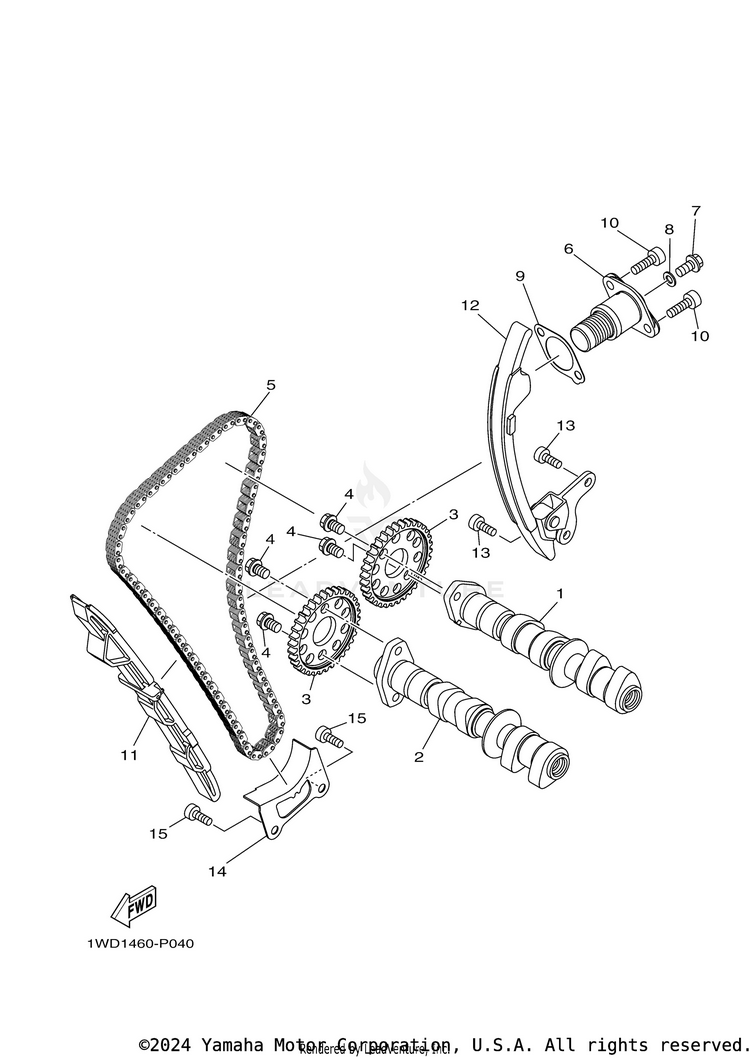

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12MS-E2170-01-00CAMSHAFT ASSY 1$162.99$134.05Usually ships in 7-10 business days
22MS-E2180-01-00CAMSHAFT ASSY 2$161.99$133.34Usually ships in 7-10 business days
31WD-E2176-00-00SPROCKET, CAM CHAIN$62.99$49.56Usually ships in 7-10 business days
490105-07800-00BOLT, FLANGE-$1.58Usually ships in 7-10 business days
594591-64118-00

(replaces part #
94591-61118-00)

CHAIN$73.99$57.713 In-Stock
62MS-12210-00-00TENSIONER ASSY, CAM CHAIN$160.99$125.57Usually ships in 7-10 business days
795022-06008-00BOLT, FLANGE$9.49$7.4010+ In-Stock
890430-06014-00GASKET$8.99$7.0110+ In-Stock
91WD-E2213-00-00GASKET, TENSIONER CASE$2.35$2.12Usually ships in 7-10 business days
1091314-06020-00

(replaces part #
91312-06020-00)

BOLT, HEXAGON SOCKET HEAD$2.65$2.5710+ In-Stock
111WD-E2251-00-00DAMPER, CHAIN 1$5.49$4.94Usually ships in 7-10 business days
122MS-E2252-01-00

(replaces part #
2MS-E2252-00-00)

DAMPER, CHAIN 2$224.99$175.49Usually ships in 7-10 business days
1391317-06016-00

(replaces part #
90110-06161-00)

BOLT (4MY)-$1.4210+ In-Stock
141WD-E2256-00-00COVER, CHAIN$4.75$4.28Usually ships in 7-10 business days
1591317-06016-00

(replaces part #
90110-06161-00)

BOLT (4MY)-$1.4210+ In-Stock
