2017 Yamaha YZF-R3 Rear Arm Suspension OEM Parts Diagram

Submodel R3 - YZFR3HL - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

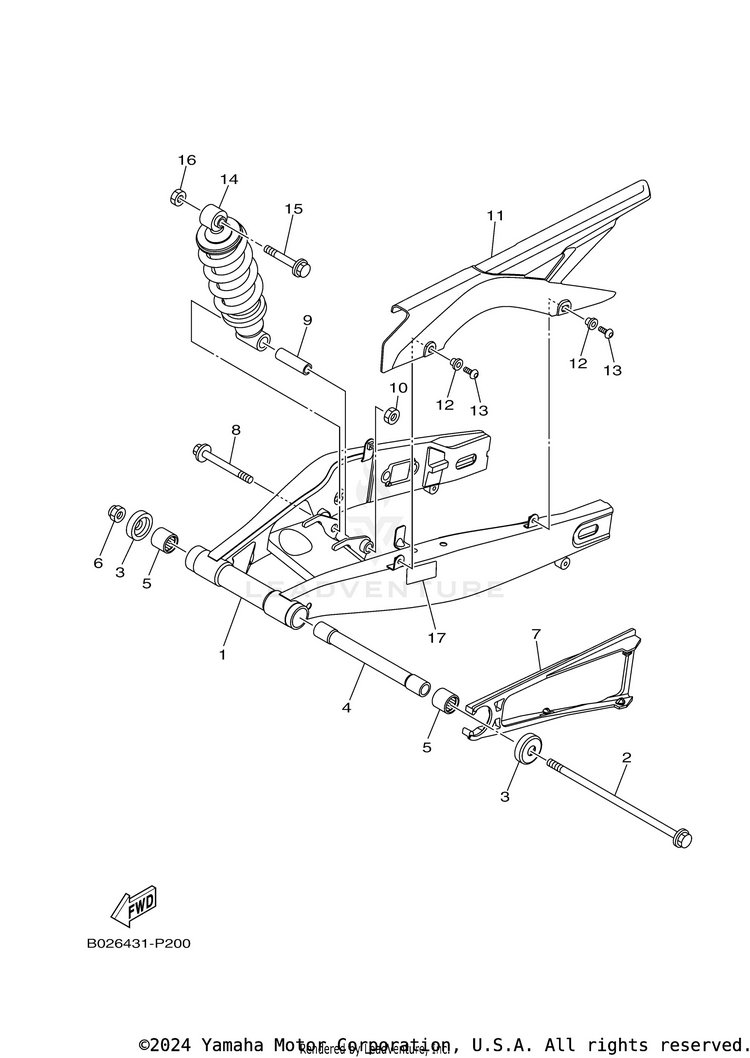

REAR ARM SUSPENSION

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11WD-F2110-00-00REAR ARM COMP.$249.99$206.16Usually ships in 7-10 business days
21WD-22141-00-00SHAFT, PIVOT$53.99$42.11Usually ships in 7-10 business days
31WD-F2129-01-00

(replaces part #
1WD-F2129-00-00)

COVER, THRUST 2$4.95$4.46Usually ships in 7-10 business days
41WD-F2184-00-00BUSH$60.99$48.60Usually ships in 7-10 business days
593320-32403-00BEARING$50.99$39.77Usually ships in 7-10 business days
695602-14200-00NUT, SELF-LOCKING$12.49$10.24Usually ships in 7-10 business days
71WD-F2151-00-00SEAL, GUARD$44.99$37.92Usually ships in 7-10 business days
890105-12309-00BOLT, FLANGE$12.49$10.24Usually ships in 7-10 business days
91WD-F248B-00-00COLLAR, ROD 1$12.49$10.24Usually ships in 7-10 business days
1095617-12100-00

(replaces part #
95602-12100-00)

NUT, U$4.16$3.58
111WD-F2311-01-00

(replaces part #
1WD-F2311-00-00)

CASE, CHAIN$6.49$5.84Usually ships in 7-10 business days
1290387-06242-00COLLAR$7.49$6.74Usually ships in 7-10 business days
1390111-06119-00BOLT, HEX. SOCKET BUTTON$9.49$8.54Usually ships in 7-10 business days
141WD-F2210-00-00SHOCK ABSORBER ASSY, REAR$202.99$168.83Usually ships in 7-10 business days
1590105-12025-00

(replaces part #
90105-12093-00)

BOLT, FLANGE$19.49$15.98Usually ships in 7-10 business days
1695617-12100-00

(replaces part #
95602-12100-00)

NUT, U$4.16$3.58
172MS-F1668-21-00

(replaces part #
2MS-F1668-20-00)

LABEL, TIRE$2.35$2.12Usually ships in 7-10 business days
