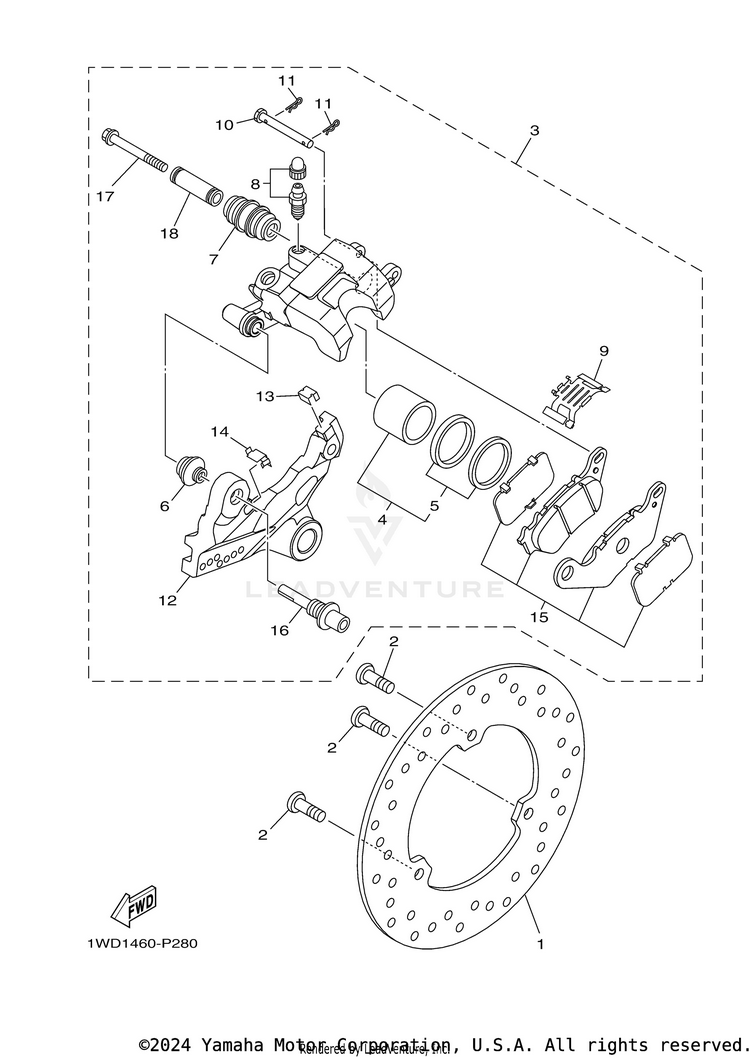

2017 Yamaha YZF-R3 Rear Brake Caliper OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	1WD-F582W-00-00	DISC, REAR BRAKE 2	$134.99	$110.81	Usually ships in 7-10 business days
2	90111-08815-00	BOLT, HEX. SOCKET BUTTON	$1.60	$1.38	10+ In-Stock
3	1WD-F580W-01-00	CALIPER ASSY, REAR 2	$144.99	$113.09	Usually ships in 7-10 business days
4	1WD-25802-50-00	PISTON ASSY, CALIPER	$48.99	$42.04	Usually ships in 7-10 business days
5	1WD-25803-50-00	CALIPER SEAL KIT	$6.49	$5.84	Usually ships in 7-10 business days
6	5YP-F5917-00-00	BOOT, CALIPER	$3.50	$3.15	Usually ships in 7-10 business days
7	34X-25937-00-00	BOOT 2	$34.99	$28.69	Usually ships in 7-10 business days
8	15B-W0048-00-00 (replaces part # 5YP-W0048-50-00)	BLEED SCREW KIT	$21.99	$17.15	7 In-Stock
9	1WD-F5919-50-00	SUPPORT, PAD	$5.49	$4.94	Usually ships in 7-10 business days
10	1WD-F5924-50-00	PIN, PAD	$3.75	$3.38	Usually ships in 7-10 business days
11	5YP-F5925-01-00	CLIP	-	$0.83	2 In-Stock
12	1WD-F5921-51-00	BRACKET, SUPPORT	$37.99	$31.15	Usually ships in 7-10 business days
13	1WD-F5939-51-00	CLIP, PAD	$2.80	$2.52	Usually ships in 7-10 business days
14	1WD-F5939-61-00	CLIP, PAD	$8.49	$7.64	Usually ships in 7-10 business days
15	1WD-25806-00-00	BRAKE PAD KIT 2	$40.99	$35.17	Usually ships in 7-10 business days
16	1WD-F5914-50-00	PIN, SLIDE	$12.49	$10.24	Usually ships in 7-10 business days
17	5KN-25926-01-00	BOLT	$9.49	$8.54	5 In-Stock
18	5TL-F5838-00-00	SLEEVE, CALIPER	$4.20	$3.78	Usually ships in 7-10 business days
