2017 Yamaha YZF-R3 Headlight OEM Parts Diagram

Submodel R3 - YZFR3HL - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HEADLIGHT

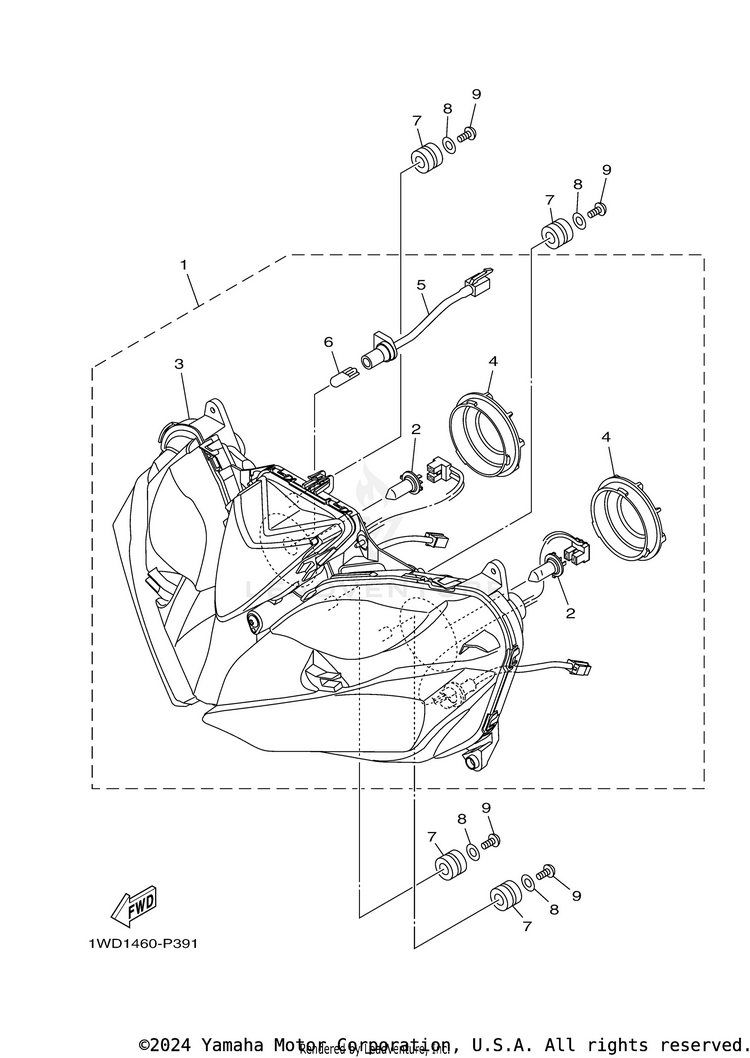

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11WD-H4300-00-00HEADLIGHT ASSY$235.99$194.30Usually ships in 7-10 business days
21WD-H4314-00-00BULB (12V-55W)$71.99$57.34Usually ships in 7-10 business days
31WD-H4303-00-00HEADLIGHT UNIT ASSY$199.99$163.97Usually ships in 7-10 business days
41WD-H4397-00-00COVER, SOCKET$23.99$19.67Usually ships in 7-10 business days
51WD-H4340-00-00SOCKET CORD ASSY 1$5.49$4.94Usually ships in 7-10 business days
61WD-H4347-00-00BULB (12V-5W)$8.49$7.64Usually ships in 7-10 business days
790480-14004-00GROMMET$9.49$8.54Usually ships in 7-10 business days
890201-061A5-00

(replaces part #
90201-05036-00)

WASHER, PLATE$8.49$6.6210+ In-Stock
997707-50016-00SCREW, TRUSS HEAD TAPPING$1.85$1.5910+ In-Stock
