2017 Yamaha YZF-R3 Crankcase OEM Parts Diagram

Submodel R3 - YZFR3HL - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKCASE

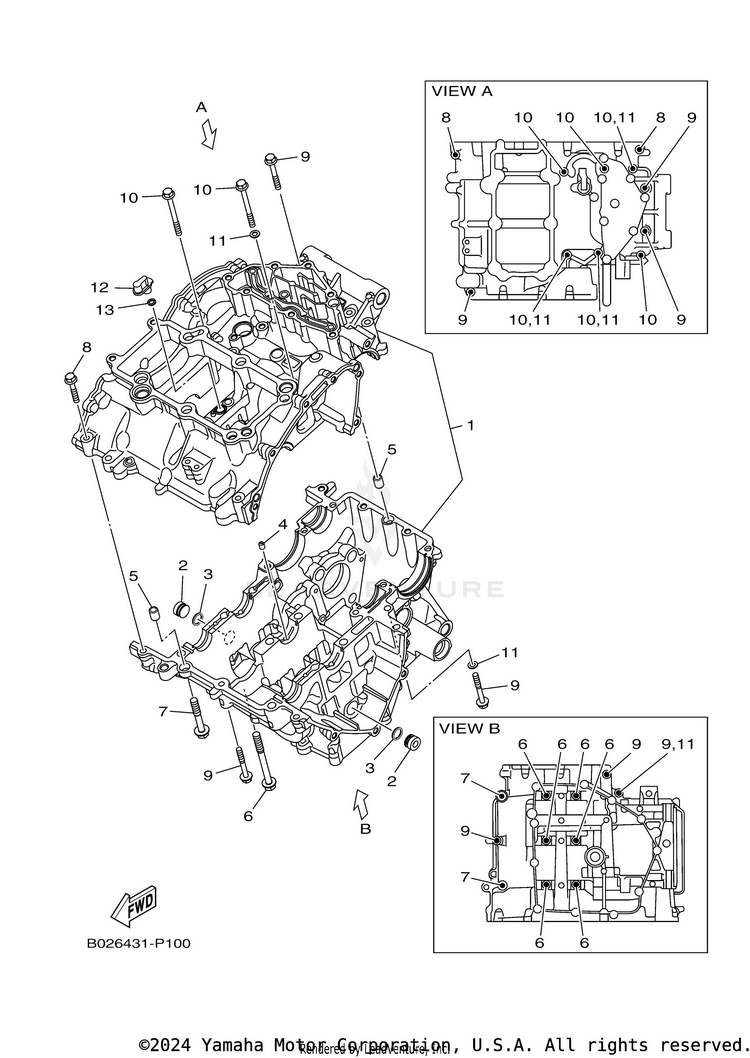

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11WD-E5150-20-00CRANKCASE ASSY$366.99$302.94Usually ships in 7-10 business days
290338-16262-00PLUG$16.49$13.52Usually ships in 7-10 business days
393210-12803-00O-RING$2.35$2.12Usually ships in 7-10 business days
41WD-E5148-00-00NOZZLE 2$2.70$2.43Usually ships in 7-10 business days
599530-10114-00

(replaces part #
99530-10014-00)

PIN, DOWEL$2.65$2.4810+ In-Stock
690105-088F7-00BOLT, FLANGE$33.99$27.87Usually ships in 7-10 business days
790105-088G0-00BOLT, FLANGE$3.00$2.70Usually ships in 7-10 business days
895812-06035-00BOLT, FLANGE$5.49$4.941 In-Stock
995817-06045-00

(replaces part #
95812-06045-00)

BOLT, FLANGE$9.49$7.4010+ In-Stock
1095812-06065-00BOLT, FLANGE$6.49$5.84Usually ships in 7-10 business days
1190430-06014-00GASKET$8.99$7.0110+ In-Stock
121WD-E5155-00-00NOZZLE 3$8.99$8.09Usually ships in 7-10 business days
1393210-06632-00

(replaces part #
93210-068F7-00)

O-RING$9.49$7.4010+ In-Stock
