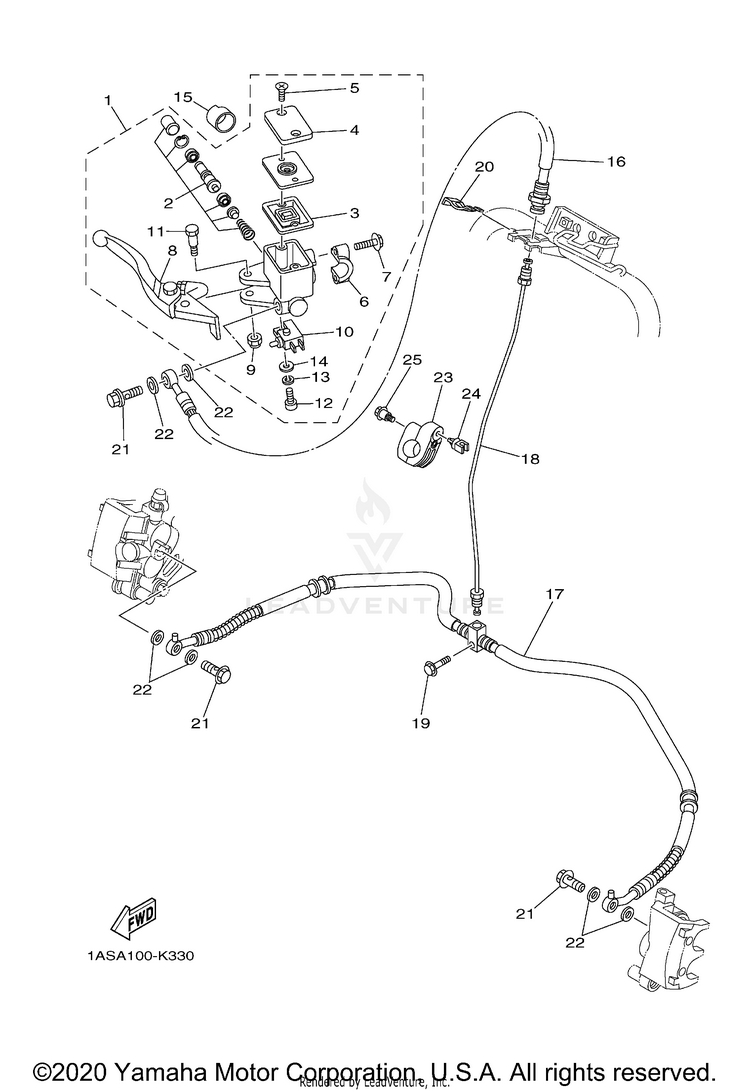

FRONT MASTER CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15D3-2583T-02-00MASTER CYLINDER ASSY$348.99$272.213 In-Stock
25HH-W0041-00-00

(replaces part #
5D3-W0041-00-00)

CYLINDER KIT, MASTER$45.99$35.878 In-Stock
34TT-25854-00-00DIAPHRAGM, RESERVOIR$19.99$15.593 In-Stock
45YU-25852-00-00CAP, RESERVOIR$39.99$31.191 In-Stock
598707-04012-00

(replaces part #
98702-04012-00)

SCREW, FLAT HEAD-$1.9410+ In-Stock
65MV-25867-00-00BRACKET, MASTER CYLINDER$22.99$17.934 In-Stock
75MV-25833-00-00BOLT, FITTING$7.49$5.846 In-Stock
85D3-83922-01-00LEVER 2$104.99$81.891 In-Stock
995780-06500-00

(replaces part #
95701-06500-00)

NUT, FLANGE$2.95$2.5410+ In-Stock
105D3-83980-00-00FRONT STOP SWITCH ASSY$78.99$61.61Usually ships in 7-10 business days
113B4-2589F-30-00BOLT, LEVER$14.49$11.303 In-Stock
1298580-04014-00

(replaces part #
98502-04014-00)

SCREW, PAN HEAD$3.30$2.8410+ In-Stock
1392990-04100-00

(replaces part #
92902-04100-00)

WASHER, SPRING-$1.0210+ In-Stock
1492990-04600-00

(replaces part #
92902-04600-00)

WASHER, PLATE$0.99$0.907 In-Stock
151UY-26259-00-00COLLAR$21.99$17.152 In-Stock
161PE-F5872-01-00

(replaces part #
1PE-F5872-00-00)

HOSE, BRAKE 1$21.99$18.03Usually ships in 7-10 business days
175TG-25873-21-00

(replaces part #
5TG-25873-20-00)

HOSE, BRAKE 2$143.99$112.31Usually ships in 7-10 business days
181PE-F5871-00-00PIPE, BRAKE$15.49$12.70Usually ships in 7-10 business days
1995817-06025-00

(replaces part #
95822-06025-00)

BOLT, FLANGE$5.49$4.2810+ In-Stock
202GU-25866-00-00CIRCLIP$10.99$8.573 In-Stock
2190401-10015-00BOLT, UNION$12.49$9.7410+ In-Stock
2290201-10118-00WASHER, PLATE$3.80$3.2710+ In-Stock
231AS-25522-01-00

(replaces part #
1AS-25522-00-00)

HOLDER$7.49$6.74Usually ships in 7-10 business days
245KM-81677-00-00CLAMP 1$7.49$5.849 In-Stock
2590109-06241-00BOLT$8.49$6.629 In-Stock
