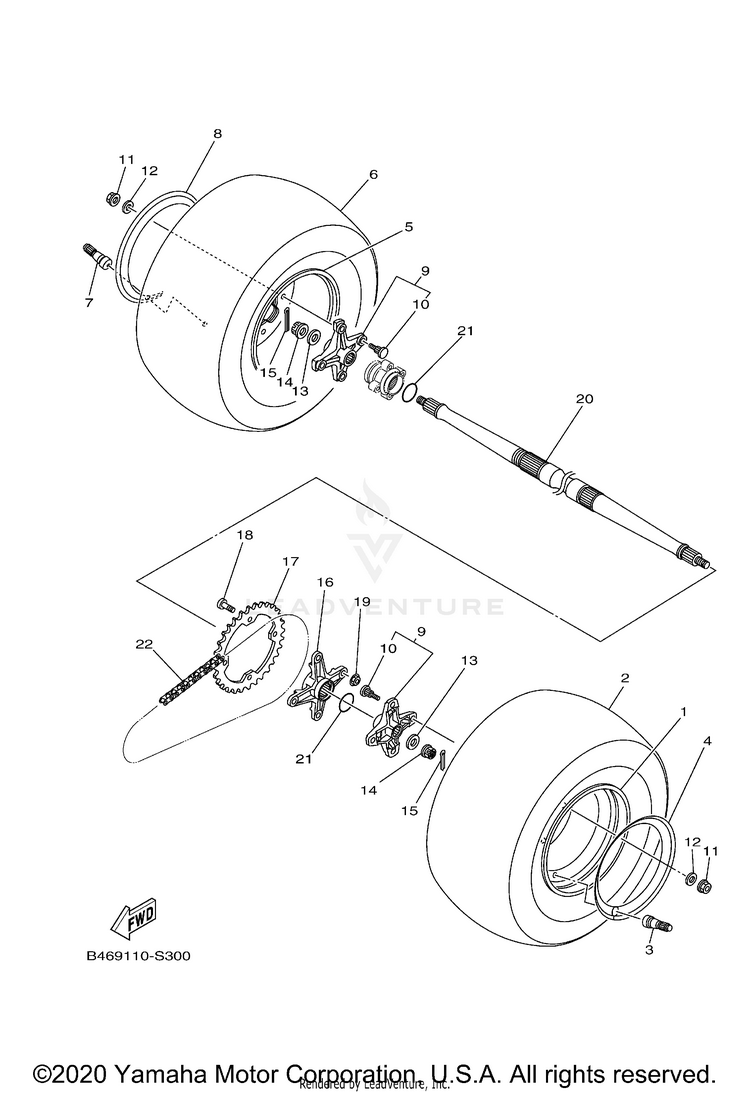

REAR WHEEL

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11TD-F5390-11-00REAR WHEEL COMP.$287.99$224.63Usually ships in 7-10 business days
294110-09801-00TIRE (AT20X10-9 M976Y) | MAXXIS$217.99$170.03Usually ships in 7-10 business days
393900-00812-00

(replaces part #
93900-00813-00)

VALVE, RIM (TR413) | MAXXIS$9.49$7.405 In-Stock
4B46-F51G2-50-00GRAPHIC 2 | UR FOR DRSH$66.99$52.25Usually ships in 7-10 business days
4B46-F51G2-40-00GRAPHIC 2 | UR FOR DBNM7$66.99$52.25Usually ships in 7-10 business days
51TD-F5390-11-00REAR WHEEL COMP.$287.99$224.63Usually ships in 7-10 business days
694110-09801-00TIRE (AT20X10-9 M976Y) | MAXXIS$217.99$170.03Usually ships in 7-10 business days
793900-00812-00

(replaces part #
93900-00813-00)

VALVE, RIM (TR413) | MAXXIS$9.49$7.405 In-Stock
8B46-F51G2-50-00GRAPHIC 2 | UR FOR DRSH$66.99$52.25Usually ships in 7-10 business days
8B46-F51G2-40-00GRAPHIC 2 | UR FOR DBNM7$66.99$52.25Usually ships in 7-10 business days
91PE-F53K0-00-00WHEEL SHAFT COLLAR ASSY$80.99$63.1710+ In-Stock
1090114-10020-00BOLT, SERRATION$6.49$5.069 In-Stock
1195704-10500-00

(replaces part #
95702-10500-00)

NUT, WITH WASHER-$2.285 In-Stock
1292990-10200-00

(replaces part #
92902-10200-00)

WASHER, PLAIN$3.80$3.2710+ In-Stock
1390201-16023-00WASHER, PLATE$9.49$7.4010+ In-Stock
1490171-16002-00NUT, CASTLE$22.99$17.9310+ In-Stock
1590252-03001-00PIN, COTTER$2.10$1.816 In-Stock
161PE-F5386-00-00COLLAR, SPROCKET AXLE$155.99$121.67Usually ships in 7-10 business days
175TG-25438-10-00SPROCKET, DRIVEN (38T)$46.99$36.6510+ In-Stock
1890109-10013-00BOLT$8.49$6.6210+ In-Stock
1990185-10011-00NUT, SELF-LOCKING$4.95$4.2610+ In-Stock
20BFK-F5381-01-00

(replaces part #
1S3-25381-10-00)

AXLE, WHEEL$349.99$272.995 In-Stock
2193210-36769-00O-RING$12.49$9.7410+ In-Stock
2294568-H6098-00CHAIN (DID520VP2-T)$106.99$83.45Usually ships in 7-10 business days
