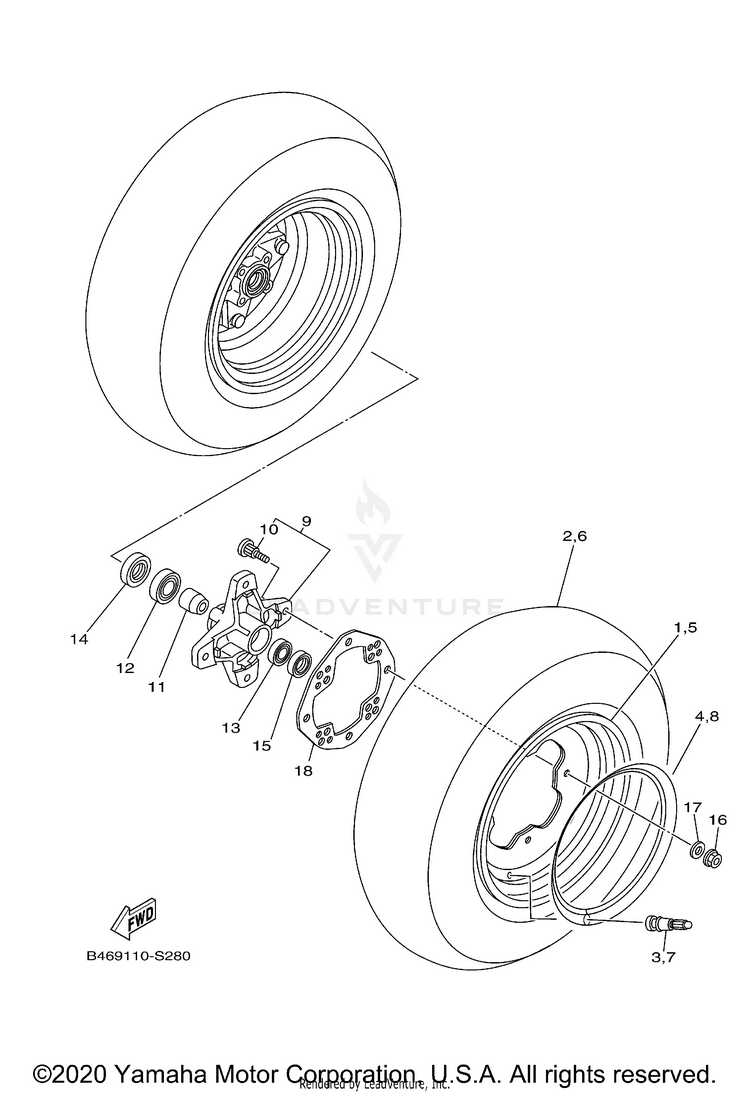

2020 Yamaha RAPTOR 700R Front Wheel OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	1TD-F5180-11-00	WHEEL COMP.	$183.99	$170.28	2 In-Stock
2	94107-10803-00	TIRE (AT22X7-10 MS13**TL) \| MAXXIS	$184.99	$144.29	Usually ships in 7-10 business days
3	93900-00812-00 (replaces part # 93900-00813-00)	VALVE, RIM (TR413) \| MAXXIS	$9.49	$7.40	5 In-Stock
4	B46-F51G1-50-00	GRAPHIC 1 \| UR FOR DRSH	$67.99	$53.03	Usually ships in 7-10 business days
4	B46-F51G1-40-00	GRAPHIC 1 \| UR FOR DBNM7	$101.99	$79.55	Usually ships in 7-10 business days
5	1TD-F5180-11-00	WHEEL COMP.	$183.99	$170.28	2 In-Stock
6	94107-10803-00	TIRE (AT22X7-10 MS13**TL) \| MAXXIS	$184.99	$144.29	Usually ships in 7-10 business days
7	93900-00812-00 (replaces part # 93900-00813-00)	VALVE, RIM (TR413) \| MAXXIS	$9.49	$7.40	5 In-Stock
8	B46-F51G1-50-00	GRAPHIC 1 \| UR FOR DRSH	$67.99	$53.03	Usually ships in 7-10 business days
8	B46-F51G1-40-00	GRAPHIC 1 \| UR FOR DBNM7	$101.99	$79.55	Usually ships in 7-10 business days
9	1PE-F510D-00-00	HUB ASSY 2	$80.99	$63.17	3 In-Stock
10	90114-10006-00	BOLT, SERRATION	$6.49	$5.06	10+ In-Stock
11	5LP-25117-00-00	SPACER, BEARING	$18.99	$14.81	7 In-Stock
12	93306-00446-00	BEARING	$47.99	$37.43	10+ In-Stock
13	93306-20231-00	BEARING	$25.99	$20.27	10+ In-Stock
14	93105-26026-00	OIL SEAL	$13.49	$10.52	10+ In-Stock
15	93102-22216-00	OIL SEAL	$12.49	$9.74	10+ In-Stock
16	95704-10500-00 (replaces part # 95702-10500-00)	NUT, WITH WASHER	-	$2.28	5 In-Stock
17	92990-10200-00 (replaces part # 92902-10200-00)	WASHER, PLAIN	$3.80	$3.27	10+ In-Stock
18	1S3-25127-01-00	COVER, PLATE	$8.49	$6.62	8 In-Stock
