2020 Yamaha RAPTOR 700R Starter OEM Parts Diagram

Submodel RAPTOR 700R SE - YFM70RSSLM - 2020

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STARTER

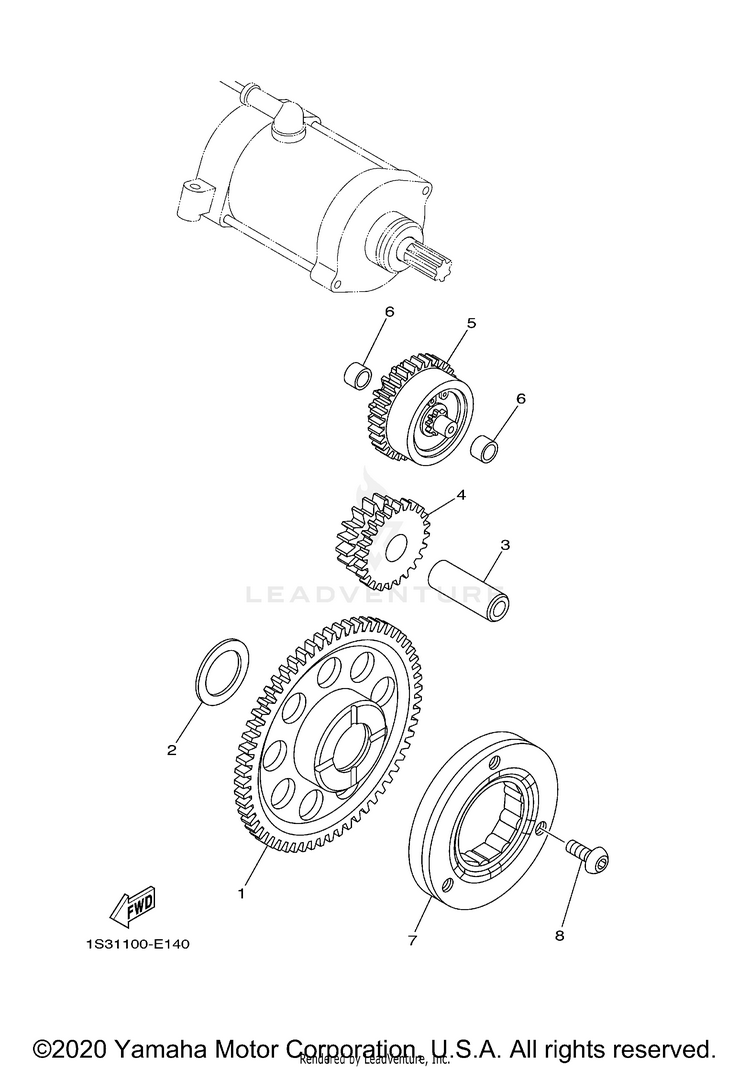

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11S3-15515-00-00GEAR 3$207.99$162.23Usually ships in 7-10 business days
290201-286K9-00WASHER, PLATE (T1.0)$8.49$6.6210+ In-Stock
34JH-11633-00-00

(replaces part #
1VJ-15522-00-00)

PIN, PISTON$42.99$33.531 In-Stock
41S3-15517-01-00GEAR, IDLER 2$68.99$53.81Usually ships in 7-10 business days
51PE-15560-00-00DAMPER ASSY$308.99$241.01Usually ships in 7-10 business days
690380-10002-00BUSH, SOLID$3.50$3.0110+ In-Stock
75VK-15590-00-00STARTER ONE-WAY ASSY$257.99$201.23Usually ships in 7-10 business days
890149-08042-00

(replaces part #
90149-08049-00)

SCREW$3.50$3.015 In-Stock
