2023 Yamaha MT-09 SP Electrical 3 OEM Parts Diagram

Submodel MT09 SP - MT09SPPCS - 2023

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

ELECTRICAL 3

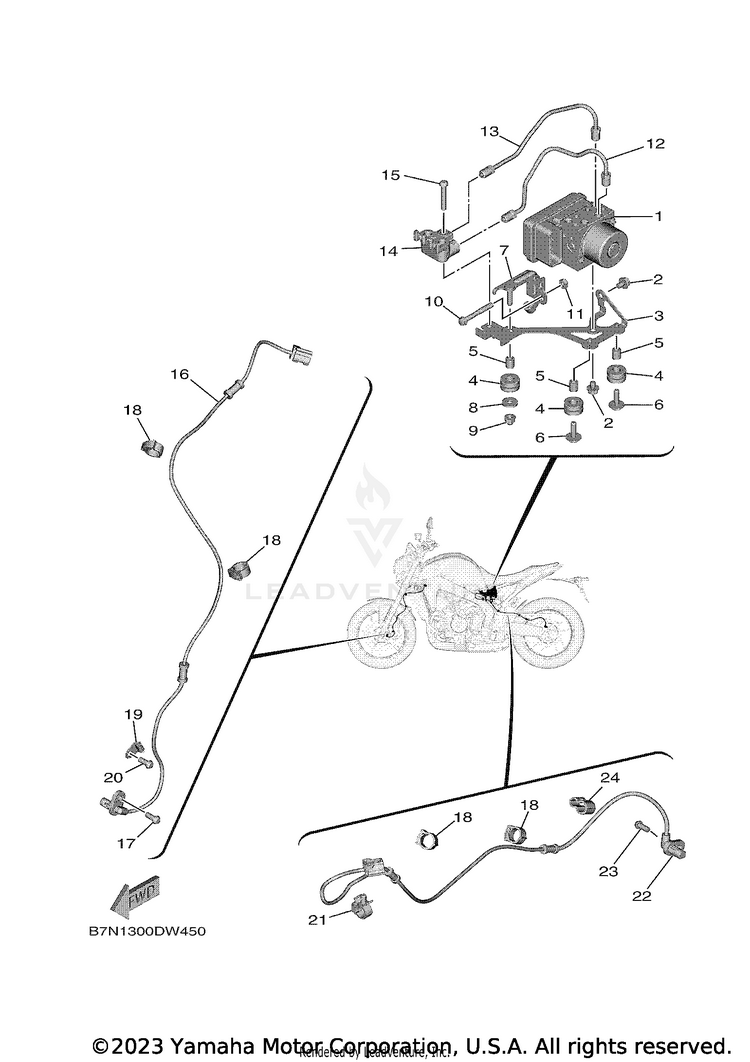

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1B7N-85930-09-00HYDRAULIC UNIT ASS$803.99$699.72Usually ships in 7-10 business days
295817-06008-00

(replaces part #
95822-06008-00)

BOLT, FLANGE$9.49$7.407 In-Stock
3B7N-85991-00-00BRACKET, UNIT$38.99$31.97Usually ships in 7-10 business days
490480-14229-00GROMMET$9.49$7.4010+ In-Stock
590387-06026-00

(replaces part #
90387-065L7-00)

COLLAR$9.49$7.409 In-Stock
690119-06118-00

(replaces part #
90119-06267-00)

BOLT, WITH WASHER$9.49$7.4010+ In-Stock
7B7N-85542-00-00BRACKET$16.49$13.52Usually ships in 7-10 business days
890201-06778-00WASHER, PLATE$4.80$4.1310+ In-Stock
990176-06065-00NUT, CROWN$10.49$8.188 In-Stock
1095027-06045-00BOLT, FLANGE$3.55$3.058 In-Stock
1195617-06100-00

(replaces part #
95607-06100-00)

NUT, U$2.90$2.4910+ In-Stock
12B7N-25871-00-00PIPE, BRAKE$14.49$11.88Usually ships in 7-10 business days
13B7N-25882-00-00PIPE, BRAKE 2$14.49$11.88Usually ships in 7-10 business days
14B7N-25885-00-00JOINT$60.99$47.57Usually ships in 7-10 business days
1592012-06035-00BOLT, BUTTON HEAD$2.50$2.25Usually ships in 7-10 business days
16B7N-85970-00-00WHEEL SENSOR ASSY,$132.99$103.73Usually ships in 7-10 business days
1792017-06014-00BOLT, BUTTON HEAD$4.60$3.966 In-Stock
1890464-16003-00CLAMP$7.99$7.19Usually ships in 7-10 business days
192CR-23317-00-00HOLDER, CABLE$10.49$8.60Usually ships in 7-10 business days
2092017-06014-00BOLT, BUTTON HEAD$4.60$3.966 In-Stock
2190464-14013-00CLAMP$3.85$3.319 In-Stock
22B7N-85980-00-00WHEEL SENSOR ASSY,$153.99$120.11Usually ships in 7-10 business days
2392014-06014-00BOLT, BUTTON HEAD$4.05$3.486 In-Stock
2490464-10233-00CLAMP$8.49$7.64Usually ships in 7-10 business days
