2023 Yamaha MT-09 SP Intake 3 OEM Parts Diagram

Submodel MT09 SP - MT09SPPCS - 2023

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

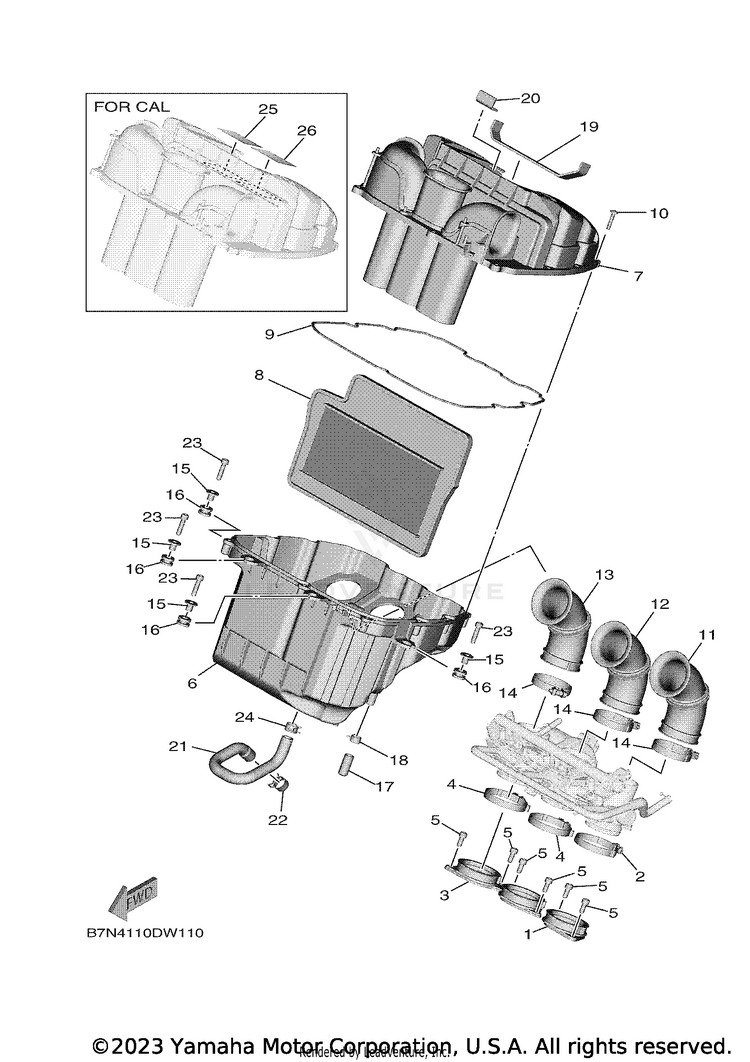

INTAKE 3

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1B7N-13635-00-00JOINT INTAKE 1$39.99$32.79Usually ships in 7-10 business days
290450-58008-00HOSE CLAMP ASSY$8.49$7.64Usually ships in 7-10 business days
3B7N-13636-00-00JOINT, INTAKE 2$38.99$31.97Usually ships in 7-10 business days
490450-58008-00HOSE CLAMP ASSY$8.49$7.64Usually ships in 7-10 business days
591312-06014-00

(replaces part #
90110-06168-00)

BOLT$5.49$4.2810+ In-Stock
6B7N-14411-01-00CASE, AIR CLEANER$51.99$40.55Usually ships in 7-10 business days
7B7N-14402-11-00CAP ASSY, AIR CLEA$126.99$99.05Usually ships in 7-10 business days
8B7N-14451-01-00ELEMENT, AIR CLEANER$45.99$36.422 In-Stock
914B-14452-00-00SEAL$19.99$16.39Usually ships in 7-10 business days
1090160-05013-00SCREW, ROUND TAPPING$9.49$7.408 In-Stock
11B7N-14453-00-00JOINT, AIR CLEANER$33.99$27.87Usually ships in 7-10 business days
12B7N-14463-00-00JOINT, AIR CLEANER$23.99$19.67Usually ships in 7-10 business days
13B7N-14454-00-00JOINT$23.99$19.67Usually ships in 7-10 business days
1490450-53007-00HOSE CLAMP ASSY$9.49$8.54Usually ships in 7-10 business days
1590387-06205-00COLLAR$8.49$6.626 In-Stock
1690480-12X00-00

(replaces part #
90480-12314-00)

GROMMET-$2.474 In-Stock
171WS-1443E-00-00PIPE, DRAIN$4.65$4.18Usually ships in 7-10 business days
1890467-13133-00

(replaces part #
90467-13083-00)

CLIP$9.49$7.4010+ In-Stock
19B7N-14425-00-00DAMPER 1$3.80$3.42Usually ships in 7-10 business days
20B7N-14426-01-00DAMPER 2$1.25$1.12Usually ships in 7-10 business days
21B7N-15393-00-00PIPE, BREATHER 2$13.99$11.47Usually ships in 7-10 business days
2290467-17003-00CLIP$6.49$5.84Usually ships in 7-10 business days
2390110-06232-00BOLT, HEXAGON SOCKET HEAD$8.49$7.64Usually ships in 7-10 business days
2490467-15001-00CLIP$8.49$7.641 In-Stock
25B7N-21686-00-00PLATE, ROUTING 2 | FOR CAL$5.99$5.39Usually ships in 7-10 business days
261RC-21684-01-00PLATE, ROUTING | FOR CAL$6.99$6.29Usually ships in 7-10 business days
