2023 Yamaha MT-09 SP Meter OEM Parts Diagram

Submodel MT09 SP - MT09SPPCS - 2023

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

METER

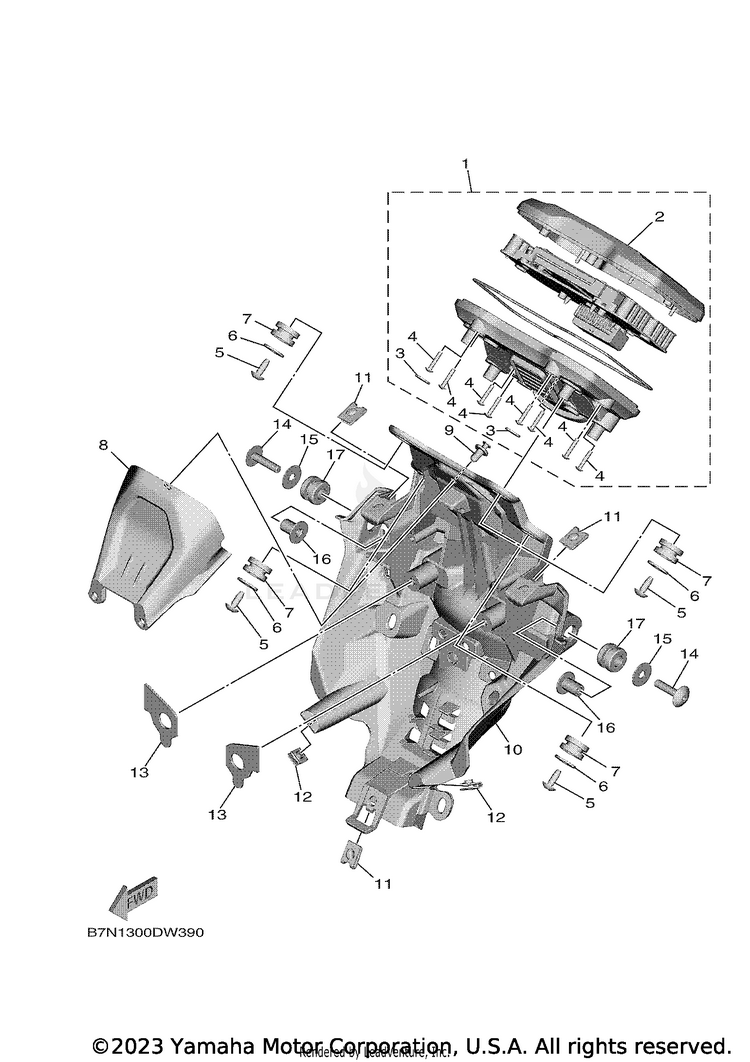

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1BAM-83500-20-00METER ASSY$926.99$806.46Usually ships in 7-10 business days
2BAM-8353E-20-00CASE, METER UPPER$129.99$101.39Usually ships in 7-10 business days
38GC-21732-00-00SEAL 1$2.85$2.56Usually ships in 7-10 business days
45PW-8352S-00-00SCREW, PANEL FTTING$4.85$4.36Usually ships in 7-10 business days
590160-05017-00SCREW, ROUND TAPPING$2.65$2.38Usually ships in 7-10 business days
690201-061A5-00

(replaces part #
90201-05036-00)

WASHER, PLATE$8.49$6.6210+ In-Stock
74XV-83513-00-00DAMPER$8.49$6.6210+ In-Stock
8B7N-83559-00-00COVER, METER$8.49$7.64Usually ships in 7-10 business days
990269-06018-00RIVET$2.45$2.20Usually ships in 7-10 business days
10B7N-83519-00-00BRACKET, METER$50.99$39.77Usually ships in 7-10 business days
1190183-061A4-00NUT, SPRING$2.60$2.34Usually ships in 7-10 business days
1290183-050A6-00

(replaces part #
90183-05076-00)

NUT, SPRING$2.95$2.547 In-Stock
13B7N-83513-00-00DAMPER$4.30$3.87Usually ships in 7-10 business days
1490111-06189-00BOLTHEX. SOCKET BUTTON$3.50$3.15Usually ships in 7-10 business days
1590201-06095-00

(replaces part #
90201-06063-00)

WASHER, PLATE$9.49$7.407 In-Stock
1690387-06136-00COLLAR$8.49$6.6210+ In-Stock
1790480-14023-00

(replaces part #
90480-14102-00)

GROMMET$8.49$6.6210+ In-Stock
