2023 Yamaha MT-09 SP Exhaust OEM Parts Diagram

Submodel MT09 SP - MT09SPPCS - 2023

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

EXHAUST

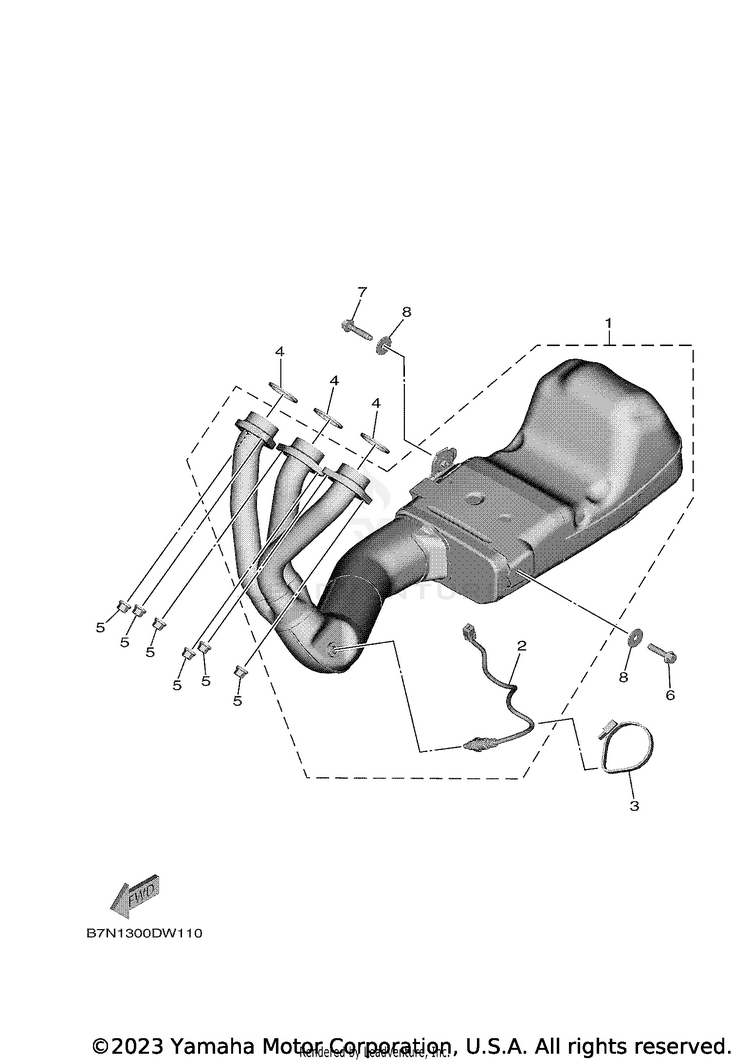

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1B7N-14710-11-00MUFFLER ASSY 1$1,729.99$1,510.10Usually ships in 7-10 business days
21WS-8592A-10-00SENSOR, OXYGEN$242.99$189.53Usually ships in 7-10 business days
390464-65001-00CLAMP$5.99$5.39Usually ships in 7-10 business days
44FM-14613-00-00GASKET, EXHAUST PIPE$13.49$10.5210+ In-Stock
590179-08410-00NUT$6.49$5.0610+ In-Stock
695817-08035-00

(replaces part #
95812-08035-00)

BOLT, FLANGE$10.49$8.1810+ In-Stock
790109-08170-00BOLT$6.49$5.84Usually ships in 7-10 business days
890201-087G2-00WASHER, PLATE$4.65$4.006 In-Stock
