2023 Yamaha MT-09 SP Rear Master Cylinder OEM Parts Diagram

Submodel MT09 SP - MT09SPPCS - 2023

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

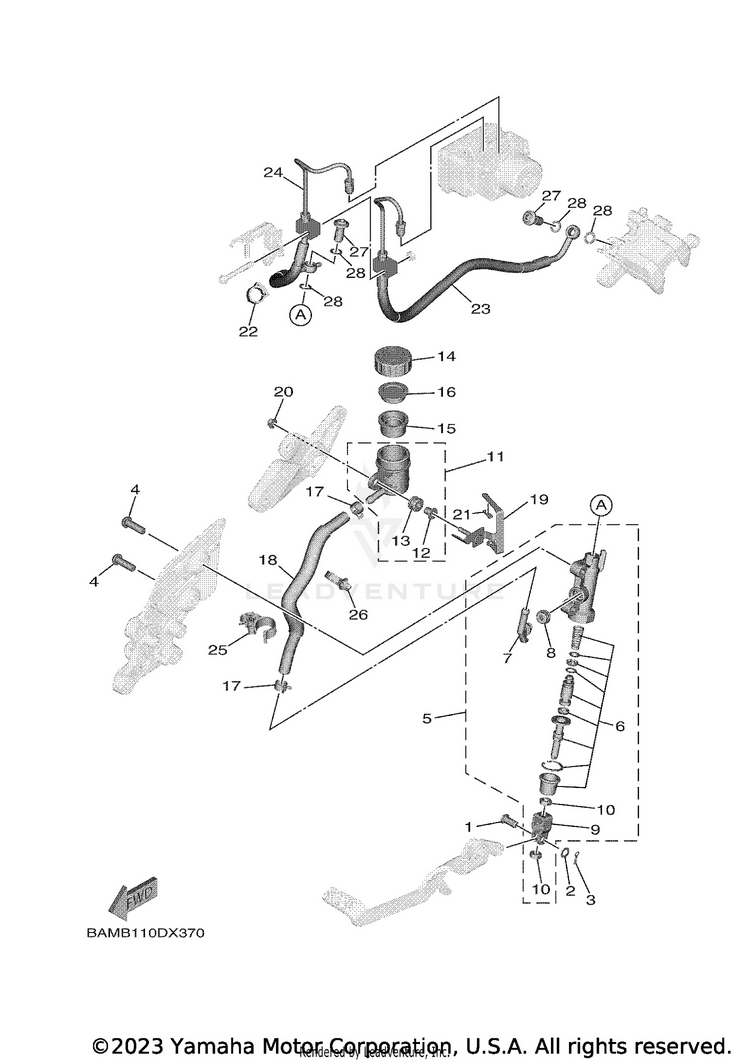

REAR MASTER CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
190240-08005-00PIN, CLEVIS$9.49$7.407 In-Stock
290201-08066-00WASHER, PLATE$9.49$7.406 In-Stock
391490-20015-00

(replaces part #
91401-20012-00)

PIN. COTTER$2.20$1.8910+ In-Stock
492014-08025-00BOLT, BUTTON HEAD$8.49$7.64Usually ships in 7-10 business days
556P-2583V-01-00

(replaces part #
56P-2583V-00-00)

RR. MASTER CYLINDE$144.99$113.091 In-Stock
65VX-25808-51-00

(replaces part #
56P-25808-50-00)

CYLINDER KIT, MASTER$103.99$81.11Usually ships in 7-10 business days
72D1-2582A-01-00

(replaces part #
2D1-2582A-00-00)

. .JOINT$110.99$86.57Usually ships in 7-10 business days
84BP-2585F-01-00O-RING$11.99$9.351 In-Stock
94BP-27222-02-00JOINT$32.99$25.732 In-Stock
1090170-08010-00NUT$9.49$8.543 In-Stock
11BAM-25894-50-00TANK, RESERVOIR$69.99$54.59Usually ships in 7-10 business days
1290387-05028-00COLLAR$6.49$5.84Usually ships in 7-10 business days
132C0-26326-00-00GROMMET$7.49$6.74Usually ships in 7-10 business days
142C0-25852-00-00CAP, RESERVOIR$8.49$7.64Usually ships in 7-10 business days
152VN-25854-00-00DIAPHRAGM, RESERVOIR$26.99$21.054 In-Stock
162VN-25855-00-00BUSH, DIAPHRAGM$11.99$9.3510+ In-Stock
1790467-12085-00CLIP$11.49$9.42Usually ships in 7-10 business days
18B7N-25895-50-00HOSE, RESERVOIR$8.49$7.64Usually ships in 7-10 business days
19B7N-2582E-00-00HOLDER, RESERVE TA$15.49$12.70Usually ships in 7-10 business days
2095707-05500-00NUT, FLANGE$9.49$7.4010+ In-Stock
2190520-01002-00DAMPER, PLATE$9.49$8.54Usually ships in 7-10 business days
2290464-16003-00CLAMP$7.99$7.19Usually ships in 7-10 business days
23B7N-2581K-01-00HOSE, BRAKE 5$90.99$70.97Usually ships in 7-10 business days
24B7N-2581J-00-00HOSE, BRAKE 4$82.99$64.73Usually ships in 7-10 business days
2590464-18013-00CLAMP$3.40$3.06Usually ships in 7-10 business days
2690464-20010-00CLAMP$3.50$3.015 In-Stock
2790401-10172-00BOLT, UNION$6.49$5.0610+ In-Stock
2890430-10005-00GASKET$9.49$7.4010+ In-Stock
