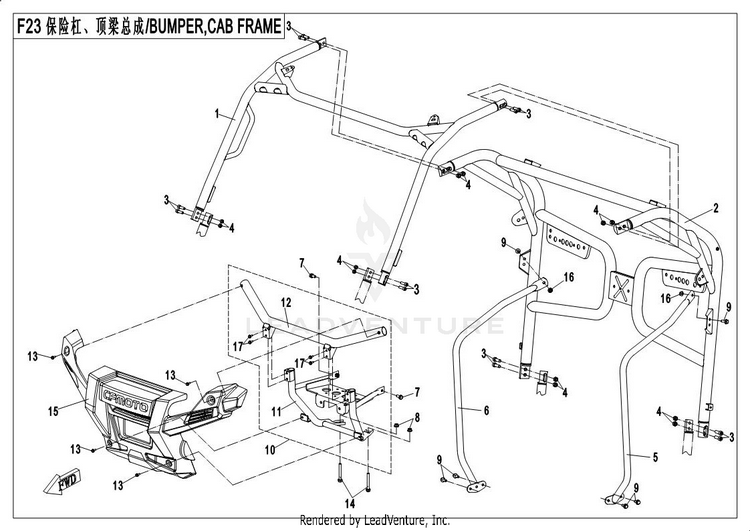

2017 CFMOTO UFORCE 500 Bumper,Cab Frame OEM Parts Diagram

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
1	703A-232100	FRONT FRAME,CAB. (TRUCK FREIGHT)	Usually ships in 7-10 business days
2	703A-232200-30000	REAR CAB CAGE. (TRUCK FREIGHT)	Usually ships in 7-10 business days
3	9010-300001	BOLT M10Ã—1.25Ã—30	Usually ships in 7-10 business days
4	30225-102810	NUT M10X1.25	10+ In-Stock
5	7030-232310-1000	HAND REST, LH	Usually ships in 7-10 business days
6	7030-232320-1000	HAND REST, RH	Usually ships in 7-10 business days
7	30006-102020810	BOLT M10Ã—1.25Ã—20	10+ In-Stock
8	30204-102810	NUT M10x1.25	10+ In-Stock
9	30006-080020810	BOLT M8Ã—20	10+ In-Stock
10	7030-233000	BUMPER ASSY	Usually ships in 7-10 business days
11	7030-231100-10000	LOWER BRACKET, BUMPER	Usually ships in 7-10 business days
12	7030-231200	UPPER BUMPER	Usually ships in 7-10 business days
13	30006-060016870	BOLT M6x16	10+ In-Stock
14	30006-102090810	BOLT M10X1.25X90	Usually ships in 7-10 business days
15	7030-040111	DECO FACE,BUMPER	Usually ships in 7-10 business days
16	30204-080810	LOCK NUT	10+ In-Stock
17	30006-080014810	BOLT M8X14	10+ In-Stock
