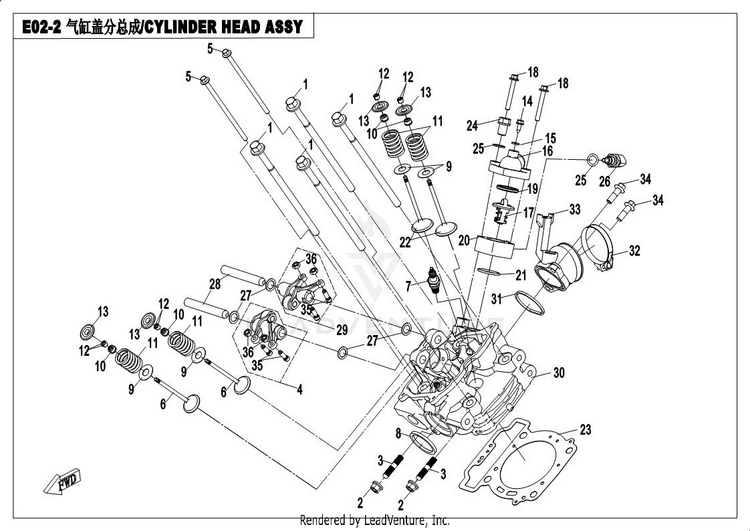

CYLINDER HEAD ASSY

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
10GR0-022001-10000BOLT,CYLINDER
Usually ships in 7-10 business days
28010-020001NUT
10+ In-Stock
30180-022003-00002

(replaces part #
0180-022003-0010)

STUD
Usually ships in 7-10 business days
40800-022600-1000ROCKER ARM ,EXHAUST
Usually ships in 7-10 business days
50GR0-022002-00001

(replaces part #
0GR0-022002)

BOLT M6X132
Usually ships in 7-10 business days
60800-022005VALVE, EXHAUST
Usually ships in 7-10 business days
70800-022800SPARK PLUG
6 In-Stock
80800-022300GASKET, EXHAUST PIPE
4 In-Stock
90800-022008LOWER SEAT, VALVE
Usually ships in 7-10 business days
100010-022500-10000SEAL RING, VALVE STEM
10+ In-Stock
110800-022006-10001

(replaces part #
0800-022006-10000)

SPRING, VALVE
Usually ships in 7-10 business days
120800-022016LOCK CLIP, VALVE
Usually ships in 7-10 business days
130800-022007UPPER SEAT, VALVE
Usually ships in 7-10 business days
1430132-480130030TAPPING SCREW ST4.8×13
10+ In-Stock
150800-022011-00001

(replaces part #
0800-022011)

WASHER 5.3×11×15
6 In-Stock
160GRB-022001CAP,THERMOSTAT
Usually ships in 7-10 business days
170800-022700THERMOSTAT
2 In-Stock
180180-013208-0010BOLT M6×45
Usually ships in 7-10 business days
190010-022802SEAL RING
4 In-Stock
200GR0-022003SEAT, THERMOSTAT
Usually ships in 7-10 business days
2130502-028000NO-RING 28×2.65
2 In-Stock
220800-022004VALVE, INTAKE
Usually ships in 7-10 business days
230800-022200-00002GASKET, CYLINDER HEAD
3 In-Stock
240800-022015-00001SCREW PLUG M12x1.6
Usually ships in 7-10 business days
250800-022014WASHER 12.2×18×1.5
Usually ships in 7-10 business days
26018B-022810WATER TEMPERATURE SENSOR
Usually ships in 7-10 business days
270800-022002WASHER 12.3×18.5×0.5
8 In-Stock
280800-022001SHAFT, ROCKER ARM
Usually ships in 7-10 business days
290800-022500-1000ROCKER ARM, INTAKE
Usually ships in 7-10 business days
300GRB-022000-30000

(replaces part #
0JY0-022100-10000)

CYLINDER HEAD ASSEMBLY, NO CAM
Usually ships in 7-10 business days
31080V-025002-1000SEAL RING, MANIFOLD
2 In-Stock
3201A0-110005CLAMP
Usually ships in 7-10 business days
330GR0-022900INJECTOR SEAT
Usually ships in 7-10 business days
340130-011114-00001BOLT
Usually ships in 7-10 business days
350800-022510ADJUST SCREW
Usually ships in 7-10 business days
360800-022506ADJUST NUT
Usually ships in 7-10 business days
