2017 CFMOTO UFORCE 500 Hydraulic Brake Assy OEM Parts Diagram

Submodel UFORCE 500 CF500UU 2017 True Timber Camo

Shop Aftermarket Parts

TO VIEW CFMOTO OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

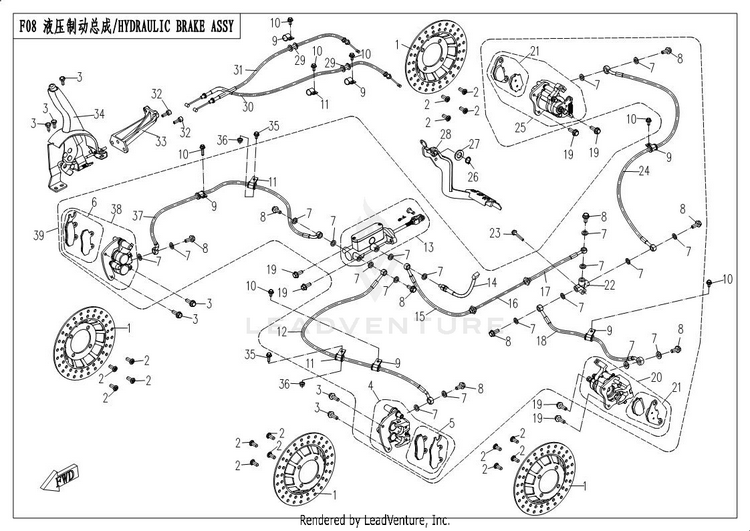

HYDRAULIC BRAKE ASSY

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
19010-080001FRONT BRAKE DISC
Usually ships in 7-10 business days
2A000-080001SCREW
10+ In-Stock
330006-080020810BOLT M8×20
10+ In-Stock
47030-085300FRONT CALIPER, LH | SINTERING
Usually ships in 7-10 business days
57030-0853A0FRONT BRAKE PAD, LH | SINTERING
Usually ships in 7-10 business days
67030-0854A0FRONT BRAKE PAD, RH | SINTERED PAD
Usually ships in 7-10 business days
70010-060010WASHER 10
10+ In-Stock
89010-080101-B000BANJO BOLT
Usually ships in 7-10 business days
99010-080104CIRCLIP
Usually ships in 7-10 business days
1030006-060012870BOLT M6x12
10+ In-Stock
117030-081081CLIP
Usually ships in 7-10 business days
12703A-081030LH BRAKE HOSE, RR
Usually ships in 7-10 business days
137030-081200-10000MASTER CYLINDER
Usually ships in 7-10 business days
147020-080160-1000SWITCH,REAR BRAKE | SUMITOMO PLUG
Usually ships in 7-10 business days
157030-081040FRONT HOSE, REAR BRAKE
Usually ships in 7-10 business days
167030-081020BRAKE HOSE,COPPER
Usually ships in 7-10 business days
177030-081070REAR HOSE, REAR BRAKE
Usually ships in 7-10 business days
18703A-081050BRAKE HOSE, REAR
Usually ships in 7-10 business days
1930006-080025810BOLT M8X25
Usually ships in 7-10 business days
207030-085500REAR CALIPER, LH | SINTERING
Usually ships in 7-10 business days
217030-0855A0REAR BRAKE PAD COMP. | SINTERING
Usually ships in 7-10 business days
229030-080102T-JOINT
Usually ships in 7-10 business days
2330006-060030810BOLT M6×30
Usually ships in 7-10 business days
24703A-081060RH BRAKE HOSE, RR
Usually ships in 7-10 business days
257030-085600REAR CALIPER,RH | SINTERING
Usually ships in 7-10 business days
2630801-01405RETAINER 14
Usually ships in 7-10 business days
2730306-140112

(replaces part #
30304-140440)

WASHER
Usually ships in 7-10 business days
287030-082000PEDAL,BRAKE
Usually ships in 7-10 business days
299030-180008RUBBERSLEEVE
Usually ships in 7-10 business days
307030-083100-10001LH CABLE,PARKING
Usually ships in 7-10 business days
317030-083200-10001RH CABLE,PARKING
Usually ships in 7-10 business days
3230102-080025810SCREW M8X25
10+ In-Stock
337030-083001BRACKET, PARKING CABLE
Usually ships in 7-10 business days
349060-106020HAND BRAKE
Usually ships in 7-10 business days
3530006-060025810BOLT
10+ In-Stock
3630204-060810NUT M6
10+ In-Stock
37703A-081010BRAKE HOSE, FRONT
Usually ships in 7-10 business days
387030-085400FRONT CALIPER, RH | SINTERING
Usually ships in 7-10 business days
39703A-081000-30000HYDRAULIC BRAKE SYSTEM | SINTERED PAD,SUMITOMO PLUG
Usually ships in 7-10 business days
