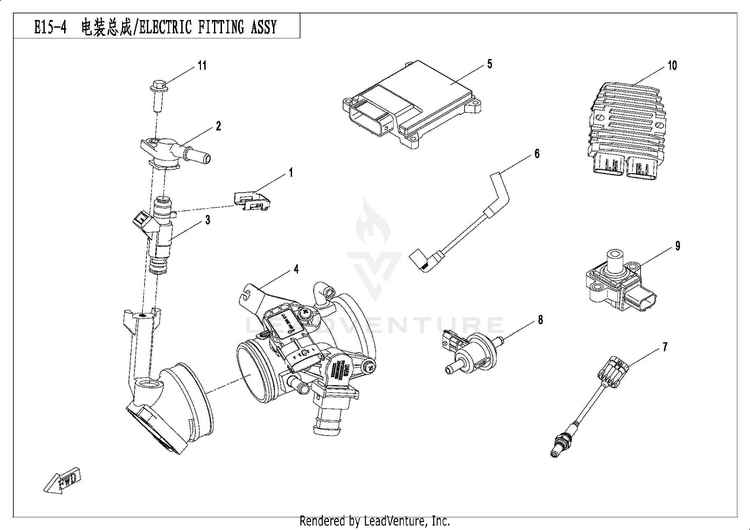

2017 CFMOTO UFORCE 500 Electric Fitting Assy (Efi) OEM Parts Diagram

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
1	0GR0-170002	CLAMP, INJECTOR CAP	Usually ships in 7-10 business days
2	0GR0-170010	INJECTOR CAP	Usually ships in 7-10 business days
3	0GR0-171000	FUEL INJECTOR	Usually ships in 7-10 business days
4	0GR0-173000-20000 (replaces part # 0GR0-173000-30000)	THROTTLE BODY	Usually ships in 7-10 business days
5	0GRB-174000	ECU	Usually ships in 7-10 business days
6	0GRB-178000-10000	HIGH-TENSION CABLE	Usually ships in 7-10 business days
7	018B-176000	OXYGEN SENSOR	Usually ships in 7-10 business days
8	6KJB-1550A0 (replaces part # 018B-172000)	IDLE CONTROL VALVE ASSY	Usually ships in 7-10 business days
9	018B-178000	IGNITION COIL	Usually ships in 7-10 business days
10	0800-177000-10000	REGULATOR	Usually ships in 7-10 business days
11	0010-023008-00001 (replaces part # 0010-023008-0010)	BOLT	10+ In-Stock
