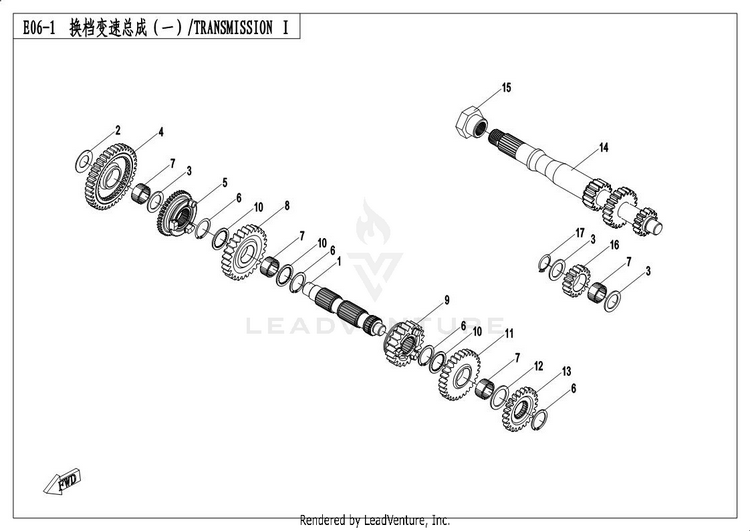

2017 CFMOTO UFORCE 500 Transmission (1) OEM Parts Diagram

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
1	0GR0-061001	SECONDARY SHAFT	Usually ships in 7-10 business days
2	0800-061002	WASHER 17.5Ã—32Ã—1	Usually ships in 7-10 business days
3	0180-061012	WASHER 20.5x30x1.5	Usually ships in 7-10 business days
4	0GR0-061200	DRIVEN GEAR, LOW RANGE	Usually ships in 7-10 business days
5	0GR0-061006-10000	SLIDE GEAR	Usually ships in 7-10 business days
6	0180-061007-0050	RETAINER 25	Usually ships in 7-10 business days
7	0GR0-060100	BEARING 20Ã—25Ã—12	Usually ships in 7-10 business days
8	0GR0-061005	GEAR, HIGHRANGE	Usually ships in 7-10 business days
9	0GR0-061004-00001	OUTPUT DRIVE GEAR	Usually ships in 7-10 business days
10	0GR0-061008	WASHER	Usually ships in 7-10 business days
11	0GR0-061003	GEAR, REVERSE	Usually ships in 7-10 business days
12	0GR0-061009-00001	WASHER 25X34X1.5	Usually ships in 7-10 business days
13	0GR0-061002	GEAR,PARKING	Usually ships in 7-10 business days
14	0GR0-060001-00001 (replaces part # 0GR0-060001)	DRIVE SHAFT	Usually ships in 7-10 business days
15	0JY0-060001-00002	NUT, MAIN DRIVE SHAFT	Usually ships in 7-10 business days
16	0GR0-060002	INTERMEDIATE GEARSHAFT,REVERSE	Usually ships in 7-10 business days
17	30801-02005	RETAINER 20	Usually ships in 7-10 business days
