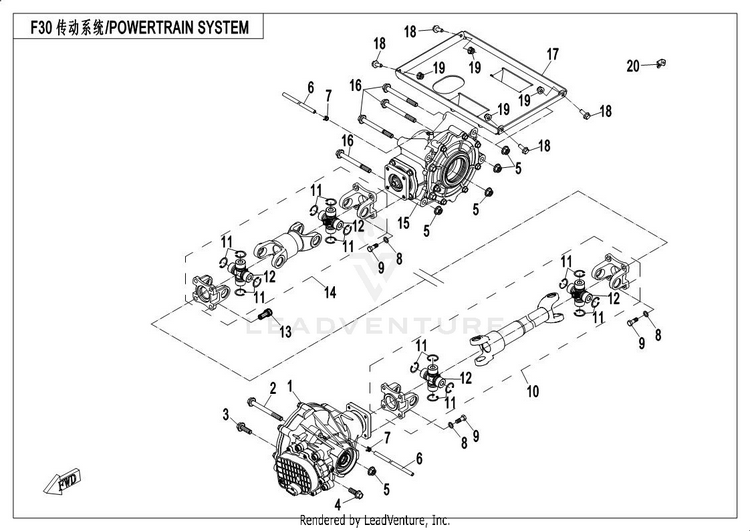

2017 CFMOTO UFORCE 500 Powertrain System OEM Parts Diagram

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
1	Q810-310000-00002	FRONT GEAR CASE ASSY	Usually ships in 7-10 business days
2	30006-102130810	BOLT M10X1.25X130	Usually ships in 7-10 business days
3	30006-102030810	BOLT M10X30	Usually ships in 7-10 business days
4	30006-102025810	BOLT M10X1.25X25	2 In-Stock
5	30204-102810	NUT M10x1.25	10+ In-Stock
6	9010-310001	BREATHER HOSE,FRONT DIFFERENTIAL	Usually ships in 7-10 business days
7	30601-108010	CLAMP A8	Usually ships in 7-10 business days
8	30306-080112	WASHER	6 In-Stock
9	9010-290001	BOLT M8Ã—1Ã—22	Usually ships in 7-10 business days
10	5UR0-290100-00001	FRONT DRIVE SHAFT	Usually ships in 7-10 business days
11	30800-02505	CIRCLIP D25	Usually ships in 7-10 business days
12	7020-290130-10000	UNIVERSAL JOINT	Usually ships in 7-10 business days
13	30102-102020810	SCREW M10Ã—20	Usually ships in 7-10 business days
14	5UR0-300100-00001	REAR DRIVE SHAFT	Usually ships in 7-10 business days
15	Q530-330000-10001	REAR DIFFERENTIAL	Usually ships in 7-10 business days
16	30006-102120810	BOLT M10X1.25X120	2 In-Stock
17	7030-038411	MOUNT BRACKET, REAR AXLE	Usually ships in 7-10 business days
18	30006-080020810	BOLT M8Ã—20	10+ In-Stock
19	30204-080810	LOCK NUT	10+ In-Stock
20	7030-038501-10000	BRACKET, OIL PIPE	Usually ships in 7-10 business days
