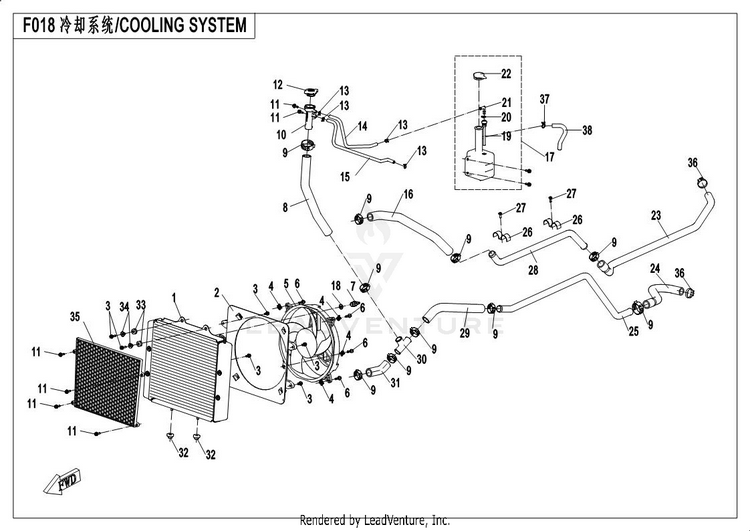

2017 CFMOTO UFORCE 500 Cooling System OEM Parts Diagram

Submodel UFORCE 500 CF500UU 2017 Titanium Grey

Shop Aftermarket Parts

COOLING SYSTEM

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
1	9060-180100-1000	RADIATOR ASSY	Usually ships in 7-10 business days
2	9060-181301	DEFLECTOR, FAN	Usually ships in 7-10 business days
3	30006-060025810	BOLT	10+ In-Stock
4	8030-040800-00001	NUT CLIP M6	10+ In-Stock
5	7020-181400-1000	FAN & MOTOR \| SUMITOMO PLUG	Usually ships in 7-10 business days
6	30006-060020870	BOLT M6x20	Usually ships in 7-10 business days
7	7020-150600	THERMOSWITCH	Usually ships in 7-10 business days
8	7030-180023	WATER FILLING HOSE,RADIATOR	Usually ships in 7-10 business days
9	7000-180007-00001	STEEL BAND CLAMP 34	Usually ships in 7-10 business days
10	9060-180025-1000	COOLANT FILLING PORT	Usually ships in 7-10 business days
11	30006-060016870	BOLT M6x16	10+ In-Stock
12	8010-180024	RADIATOR CAP	2 In-Stock
13	30601-111010	CLAMP A11	Usually ships in 7-10 business days
14	7030-180062	WATER HOSE,RESERVOIR TANK	Usually ships in 7-10 business days
15	7030-180061	OVERFLOW HOSE,RADIATOR	Usually ships in 7-10 business days
16	7030-180022	WATER OUTLET HOSE,RADIATOR	Usually ships in 7-10 business days
17	7030-180900	RESERVIOR TANK	Usually ships in 7-10 business days
18	6050-180006	RUBBER WASHER	Usually ships in 7-10 business days
19	8010-180028	HOSE, RESERVOIR TANK	Usually ships in 7-10 business days
20	30601-112010	CLAMP A12	Usually ships in 7-10 business days
21	8030-180302	JOINT,RESERVOIR TANK	Usually ships in 7-10 business days
22	8010-180023	CAP,RESERVOIR TANK	2 In-Stock
23	5UR0-180030	WATER OUTLET HOSE, ENGINE	Usually ships in 7-10 business days
24	5UR0-180003	WATER INLET HOSE,ENGINE	Usually ships in 7-10 business days
25	5UR0-180001	WATER INLET PIPE	Usually ships in 7-10 business days
26	9030-180006	CLAMP,WATER HOSE	Usually ships in 7-10 business days
27	30105-060016410	SCREW M6Ã—16	3 In-Stock
28	7030-180052	ALUM PIPE,WATER OUTLET	Usually ships in 7-10 business days
29	7030-180024	WATER INLET HOSE 2,RADIATOR	Usually ships in 7-10 business days
30	9060-180022	WATER LINE LEE	Usually ships in 7-10 business days
31	7030-180021	WATER INLET HOSE 1,RADIATOR	Usually ships in 7-10 business days
32	9060-180027	RUBBER CUSHION ,RADIATOR	Usually ships in 7-10 business days
33	9060-180026	PIN RUBBER CAP, RADIATOR	Usually ships in 7-10 business days
34	9060-180029	RUBBER CUSHION TUBE, RADIATOR	Usually ships in 7-10 business days
35	7030-180003	SCREEN,RADIATOR	Usually ships in 7-10 business days
36	9010-180007	CLAMP ,WATER HOSE	8 In-Stock
37	30601-113010	CLAMP A13	Usually ships in 7-10 business days
38	6100-000102	OUTLET PIPE, IDLE	Usually ships in 7-10 business days
