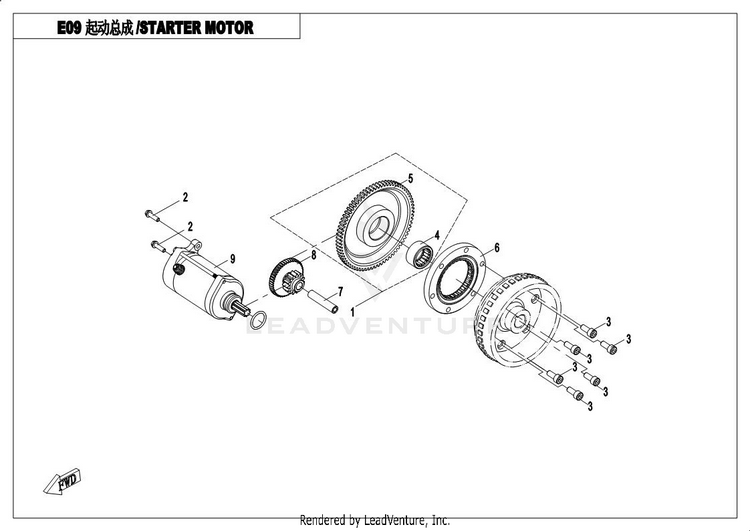

2017 CFMOTO UFORCE 500 Starter Motor Assy OEM Parts Diagram

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
1	0180-0910A0-00001	DRIVEN GEAR ASSY	Usually ships in 7-10 business days
2	0010-080013-0010	BOLT M6Ã—22	10+ In-Stock
3	30102-080020810	SCREW M8x20	Usually ships in 7-10 business days
4	30401-02800	NEEDLE BEARING	Usually ships in 7-10 business days
5	0180-091001	DRIVEN GEAR	Usually ships in 7-10 business days
6	0180-091200	OVERRIDING CLUTCH	Usually ships in 7-10 business days
7	0180-091006	DUAL GEAR SHAFT	Usually ships in 7-10 business days
8	0GR0-091002	STARTER DUAL GEAR	Usually ships in 7-10 business days
9	0GSV-093000-1100	STARTING MOTOR
