2017 CFMOTO UFORCE 500 Front Plastic OEM Parts Diagram

Submodel UFORCE 500 CF500UU 2017 Titanium Grey

Shop Aftermarket Parts

TO VIEW CFMOTO OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

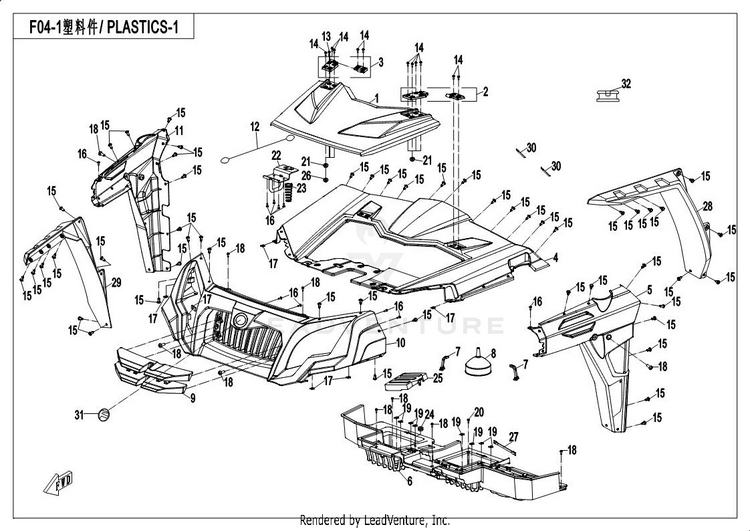

FRONT PLASTIC

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
17030-040151-0B50FRONT TOP COVER, TITANIUM GREY | TITANIUM GREY
Usually ships in 7-10 business days
27030-040320LEFT HINGE
Usually ships in 7-10 business days
37030-040330RIGHT HINGE
Usually ships in 7-10 business days
47030-040141-0B50FRONT FENDER, TITANIUM GREY. (TRUCK FREIGHT) | TITANIUM GREY
Usually ships in 7-10 business days
57030-040161-10000FRONT DECO PANEL,LH
Usually ships in 7-10 business days
67030-040341-10000BOX,BATTERY
Usually ships in 7-10 business days
77020-040315RUBBER STRAP
Usually ships in 7-10 business days
87030-200101FILLER, ENGINE OIL
Usually ships in 7-10 business days
97030-040131-0H30DECO PANEL,FRONT | SILVER BLACK
Usually ships in 7-10 business days
10703V-040121-1000

(replaces part #
7030-040121-10000)

FRONT GRILLE (TRUCK FREIGHT)
Usually ships in 7-10 business days
117030-040171-10000FRONT DECO PANEL,RH
Usually ships in 7-10 business days
127030-040010-00001CABLE,FRONT TOP COVER
Usually ships in 7-10 business days
1330006-060030810BOLT M6×30
Usually ships in 7-10 business days
1430006-060020870BOLT M6x20
Usually ships in 7-10 business days
159060-040310PUSH RIVET
10+ In-Stock
1630118-420130010SCREW
Usually ships in 7-10 business days
178010-000002CLAMP ST4.2
10+ In-Stock
1830006-060016870BOLT M6x16
10+ In-Stock
198030-040800-00001NUT CLIP M6
10+ In-Stock
208010-000004BOLT M6×14
10+ In-Stock
2130200-060810NUT
4 In-Stock
227030-040180LATCH, FRONT TOP COVER
Usually ships in 7-10 business days
237030-040191SPRING, FRONT TOP COVER
Usually ships in 7-10 business days
240180-015003RUBBER COLLAR
Usually ships in 7-10 business days
257030-040342COVER,TOOL CASE
Usually ships in 7-10 business days
2630204-060810NUT M6
10+ In-Stock
277030-040910TIE BAND, BATTERY
Usually ships in 7-10 business days
287030-040811FRONT FENDER FLARE,LH
Usually ships in 7-10 business days
297030-040812FRONT FENDER FLARE,RH
Usually ships in 7-10 business days
309060-040108-10000HOLE COVER, SWITCH
Usually ships in 7-10 business days
317030-190001CFMOTO LOGO
Usually ships in 7-10 business days
327030-040001PLUG, WATER LEAKAGE
Usually ships in 7-10 business days
456587030-040151-0Y60FRONT TOP COVER, CRYSTAL ORANGE | CRYSTAL ORANGE
Usually ships in 7-10 business days
456597030-040151-0RE00FRONT COVER, TRUE TIMBER CAMO | TRUE TIMBER CAMO
Usually ships in 7-10 business days
457487030-040141-0Y60FRONT FENDER, CRYSTAL ORANGE. (TRUCK FREIGHT) | CRYSTAL ORANGE
Usually ships in 7-10 business days
457497030-040141-0RE00FRONT FENDER, TT CAMO. (TRUCK FREIGHT) | TRUE TIMBER CAMO
Usually ships in 7-10 business days
