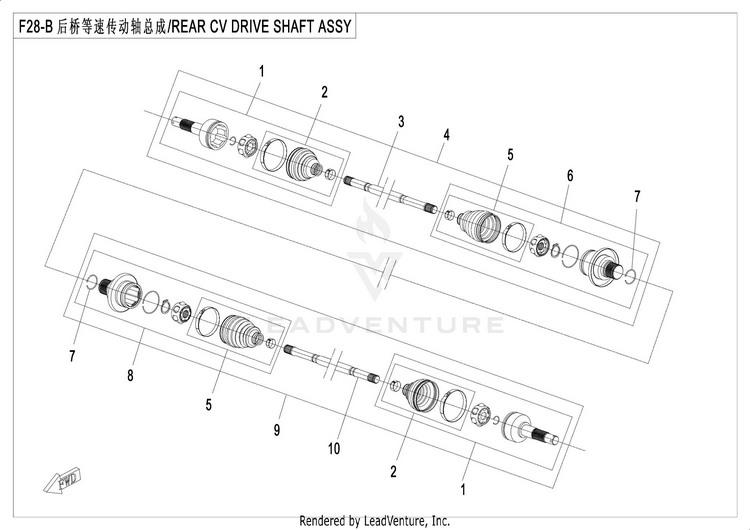

2017 CFMOTO UFORCE 500 Rear Cv Drive Shaft Assy (Qc) OEM Parts Diagram

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
1	7000-280170-30000	BEARING KIT,FIXED END \| QC	Usually ships in 7-10 business days
2	7020-280160-30000	DUST BOOT, FIXED END \| QC	Usually ships in 7-10 business days
4	7000-280200-50000	REAR CV DRIVE SHAFT,RH \| QC	Usually ships in 7-10 business days
5	7020-280150-30000	DUST BOOT, MOTION END \| QC	Usually ships in 7-10 business days
6	7020-280140-30000	LH BEARING KIT, REAR MOTION END \| QC	Usually ships in 7-10 business days
7	9010-280102-00001	WIRE CIRCLIP	Usually ships in 7-10 business days
8	7020-280240-30000	RH BEARING KIT, REAR MOTION END \| QC	Usually ships in 7-10 business days
9	703A-280100-50000	REAR CV DRIVE SHAFT,LH	Usually ships in 7-10 business days
