2017 CFMOTO UFORCE 500 Electric System OEM Parts Diagram

Submodel UFORCE 500 CF500UU 2017 Titanium Grey

Shop Aftermarket Parts

TO VIEW CFMOTO OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

ELECTRIC SYSTEM

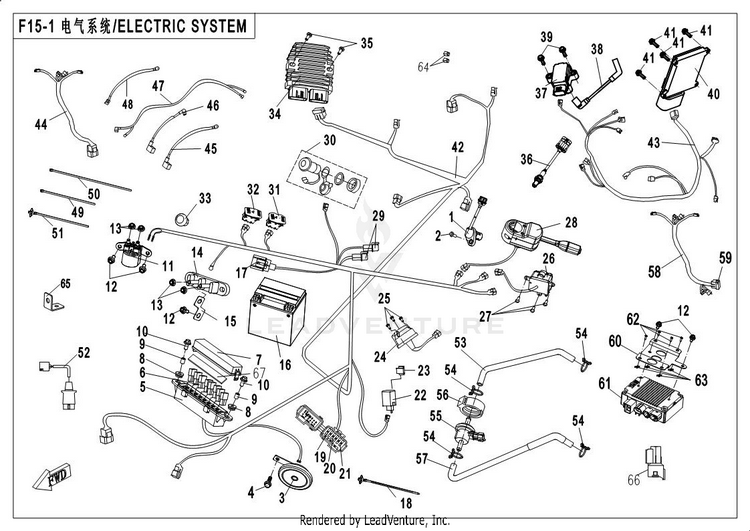

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
10GR0-011020SPEED SENSOR
Usually ships in 7-10 business days
20010-090005-0010BOLT M6×16
Usually ships in 7-10 business days
36050-150500ELCTRONIC HORN
Usually ships in 7-10 business days
430006-080014810BOLT M8X14
10+ In-Stock
57020-040411RELAY BOX
Usually ships in 7-10 business days
69010-150350AUXILIARY RELAY
Usually ships in 7-10 business days
77020-040412-10000COVER,RELAY BOX
Usually ships in 7-10 business days
80180-015003RUBBER COLLAR
Usually ships in 7-10 business days
96090-040303BUSHING
10+ In-Stock
1030006-060016870BOLT M6x16
10+ In-Stock
115270-150500STARTER RELAY
Usually ships in 7-10 business days
1230006-060012870BOLT M6x12
10+ In-Stock
1330204-060810NUT M6
10+ In-Stock
147030-151611TERMINAL, CABLE
Usually ships in 7-10 business days
157030-151612GROUND CONNECTOR
Usually ships in 7-10 business days
1631023004BATTERY, Dynavolt 12v30ah | YTX30L-BS
2 In-Stock
177020-150111CHIP-TYPE FUSE(30A)
Usually ships in 7-10 business days
187030-150005TIE BAND
Usually ships in 7-10 business days
198080-151301FUSE (5A)
Usually ships in 7-10 business days
20806A-151302FUSE (10A)
Usually ships in 7-10 business days
21806A-151305FUSE (15A)
Usually ships in 7-10 business days
224020-150340FLASHER
Usually ships in 7-10 business days
238010-150002CUSHION, FLASHER
Usually ships in 7-10 business days
247020-150800-1000POWER SOCKET,TRAILER | SUMITOMO PLUG
Usually ships in 7-10 business days
2530105-050030410SCREW M5x30
Usually ships in 7-10 business days
267030-160700-10002SWTICH,2WD/4WD | SUMITOMO PLUG
1 In-Stock
2730110-480160010TAPPING SCREW ST4.8X16
10+ In-Stock
287030-160800-10000SWITCH,COMBINATION | SUMITOMO PLUG
Usually ships in 7-10 business days
296090-150500DIODE, STARTER
Usually ships in 7-10 business days
307020-150500-1000POWER SOCKET | SUMITOMO PLUG
Usually ships in 7-10 business days
317030-151400OVERRIDING SWITCH
Usually ships in 7-10 business days
327030-151600WARNING SWITCH
Usually ships in 7-10 business days
337030-170300BUTTON,CLOCK | SUMITOMO PLUG
Usually ships in 7-10 business days
340800-177000-10000REGULATOR
Usually ships in 7-10 business days
3530006-060030810BOLT M6×30
Usually ships in 7-10 business days
36018B-176000OXYGEN SENSOR
Usually ships in 7-10 business days
37018B-178000IGNITION COIL
Usually ships in 7-10 business days
380GR0-178000-10000HIGH TENSION LEAD, SPARK PLUG
Usually ships in 7-10 business days
3930006-060025810BOLT
10+ In-Stock
400GRB-174000ECU
Usually ships in 7-10 business days
4130105-050016410BOLT M5X16
Usually ships in 7-10 business days
425UR0-150100-20000MAIN CABLE | SUMITOMO
Usually ships in 7-10 business days
435UR0-150200-10000AUXILIARY CABLE, EFI | SUMITOMO PLUG
Usually ships in 7-10 business days
447030-150300-10000AUXILIARY CABLE, TAIL LIGHT | SUMITOMO PLUG
Usually ships in 7-10 business days
457030-150510POSITIVE CABLE, BATTERY
Usually ships in 7-10 business days
467030-150610NEGATIVE CABLE, BATTERY
Usually ships in 7-10 business days
477030-150520CABLE, STARTER MOTOR
Usually ships in 7-10 business days
487030-150530CABLE, STARTER RELAY
Usually ships in 7-10 business days
499010-150004TIE BAND
Usually ships in 7-10 business days
508010-150003TIE BAND
Usually ships in 7-10 business days
51801F-100101TIE BAND
Usually ships in 7-10 business days
529010-151020-20000ADAPTER, TRAILER POWER
Usually ships in 7-10 business days
535UR0-000002AIR OUTLET PIPE, IDLE VALVE
Usually ships in 7-10 business days
5430601-112010CLAMP A12
Usually ships in 7-10 business days
556KJB-1550A0

(replaces part #
018B-172000)

IDLE CONTROL VALVE ASSY
Usually ships in 7-10 business days
56901F-000005IDLE VALVE RUBBER CAP
Usually ships in 7-10 business days
575UR0-000001AIR INLET PIPE, IDLE SPEED
Usually ships in 7-10 business days
587030-150400EPS CONTROL CABLE
Usually ships in 7-10 business days
599CR6-103501FUSE (40A)
Usually ships in 7-10 business days
607030-106001BRACKET,EPS CONTROLLER
Usually ships in 7-10 business days
615UR0-150800EPS CONTROLLER
Usually ships in 7-10 business days
6230110-481130070

(replaces part #
30110-480130010)

SELF-TAPPING SCREW
10+ In-Stock
638010-000002CLAMP ST4.2
10+ In-Stock
64905B-150103PLUG, PDA
Usually ships in 7-10 business days
657020-038002BRACKET,FUSE BOX
Usually ships in 7-10 business days
677020-040414RUBBER MAT,RELAY BOX COVER
Usually ships in 7-10 business days
