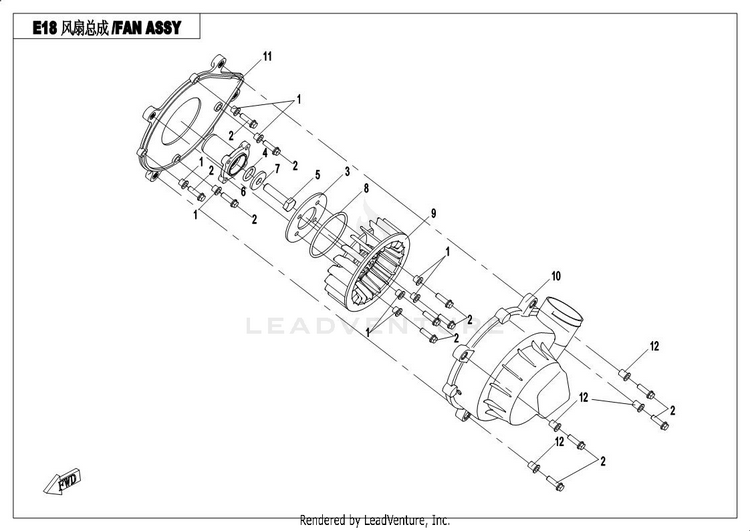

2017 CFMOTO UFORCE 500 Fan Assy (Eng) OEM Parts Diagram

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
1	018A-180001	SPACER	Usually ships in 7-10 business days
2	0JWV-011107-3000 (replaces part # 0010-023010-0010)	BOLT M6x20	Usually ships in 7-10 business days
3	018A-180002	GASKET PLATE	Usually ships in 7-10 business days
4	0180-092102	O-RING 16.1x3.2	Usually ships in 7-10 business days
5	0180-092001-00001	BOLT M10x40	Usually ships in 7-10 business days
6	0GRB-180003	FLANGE, JOINT FAN	Usually ships in 7-10 business days
7	018A-180004	WASHER 10.2x28x3	Usually ships in 7-10 business days
8	0180-331004	OIL-SEAL64.5Ã—3	Usually ships in 7-10 business days
9	018A-180005	IMPELLER,FAN	Usually ships in 7-10 business days
10	0GRB-180002	HOUSING, FAN	Usually ships in 7-10 business days
11	0GRB-180100	BASE PLATE	Usually ships in 7-10 business days
12	018A-180007	LONG SPACER	Usually ships in 7-10 business days
