1976 Yamaha IT400 Crankcase OEM Parts Diagram

Submodel IT400C - 1976

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

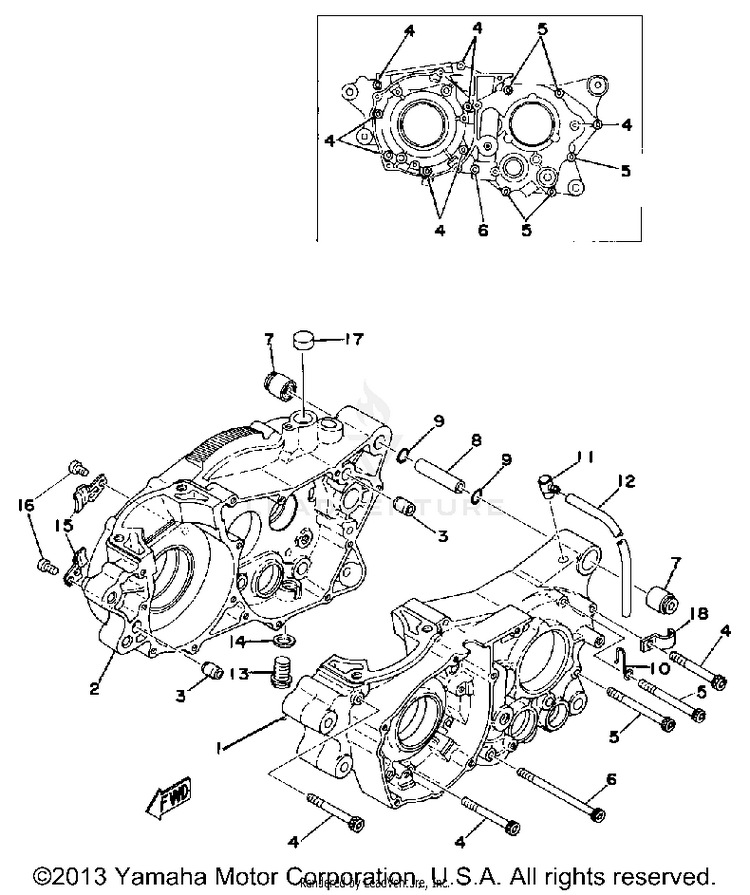

CRANKCASE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1510-15111-00-00CRANKCASE 1$162.99$127.13Not Shipping
2510-15121-00-00CRANKCASE 2$142.99$111.53Not Shipping
399530-12016-00

(replaces part #
99510-12016-00)

PIN, DOWEL$4.89$4.2110+ In-Stock
491317-06055-00

(replaces part #
91316-06055-00)

BOLT$4.50$3.8710+ In-Stock
591317-06070-00

(replaces part #
91316-06070-00)

BOLT, HEX. SOCKET HEAD$5.49$4.2810+ In-Stock
691316-06095-00BOLT, SOCKET HEAD$4.54$4.09Not Shipping
790388-08003-00

(replaces part #
328-15316-00-00)

Damper$19.49$15.206 In-Stock
8438-15317-00-00SPACER, ENGINE MOUNT$7.26$6.53Not Shipping
993210-11073-00O-RING$8.49$6.6210+ In-Stock
1090465-20035-00CLAMP$5.99$5.39Usually ships in 7-10 business days
11583-15371-00-00BREATHER$7.49$5.8410+ In-Stock
1290445-07MF1-00

(replaces part #
90445-07177-00)

HOSE$8.49$7.64Usually ships in 7-10 business days
1390109-14385-00BOLT (90340-14010)$18.49$14.425 In-Stock
14214-11198-01-00GASKET$3.17$2.8910+ In-Stock
15434-15118-00-00HOLDER$7.49$6.74Not Shipping
1698580-08012-00

(replaces part #
98501-08012-00)

SCREW, PAN HEAD (9806-08012)$8.49$7.64Not Shipping
1790338-20023-00PLUG$6.49$5.062 In-Stock
1890462-05005-00

(replaces part #
90462-06009-00)

CLAMP$10.49$8.183 In-Stock
