1976 Yamaha IT400 Electrical OEM Parts Diagram

Submodel IT400C - 1976

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

ELECTRICAL

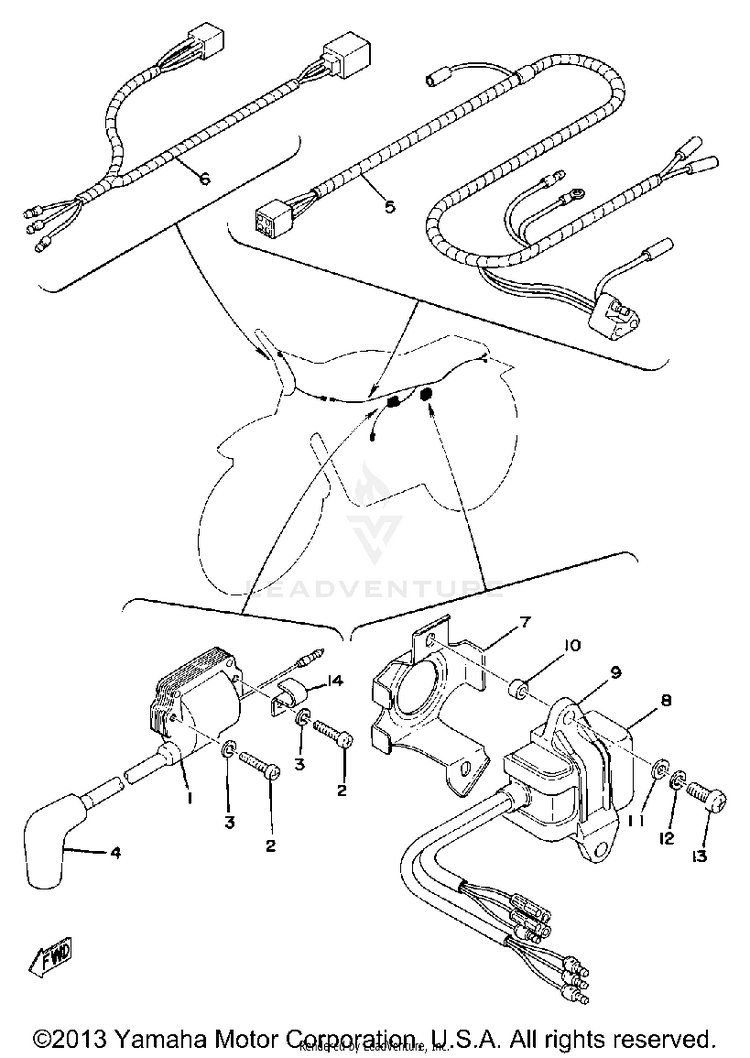

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1510-82310-40-00IGNITION COIL ASSEMBLY$37.82$31.01Usually ships in 7-10 business days
298517-06025-00

(replaces part #
98511-06025-00)

SCREW, PAN HEAD$4.05$3.4810+ In-Stock
392995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
4294-82370-00-00PLUG CAP ASSEMBLY$77.99$60.83Not Shipping
51K7-82590-20-00WIRE HARNESS ASSEMBLY$22.32$18.30Not Shipping
61K7-82509-00-00WIRE, SUB LEAD$4.84$4.36Not Shipping
7509-85542-00-00BRACKET$7.68$6.91Usually ships in 7-10 business days
8445-85540-22-00CDI UNIT ASSEMBLY$647.99$505.43Usually ships in 7-10 business days
9510-85546-00-00BAND$5.86$5.27Usually ships in 7-10 business days
1090387-062N2-00COLLAR$10.49$8.60Usually ships in 7-10 business days
1190201-06M08-00WASHER, PLATE$2.55$2.197 In-Stock
1292995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1398580-06020-00SCREW, PAN HEAD$9.49$7.405 In-Stock
1490462-05005-00CLAMP$10.49$8.183 In-Stock
