1976 Yamaha IT400 Front Fender - Rear Fender OEM Parts Diagram

Submodel IT400C - 1976

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

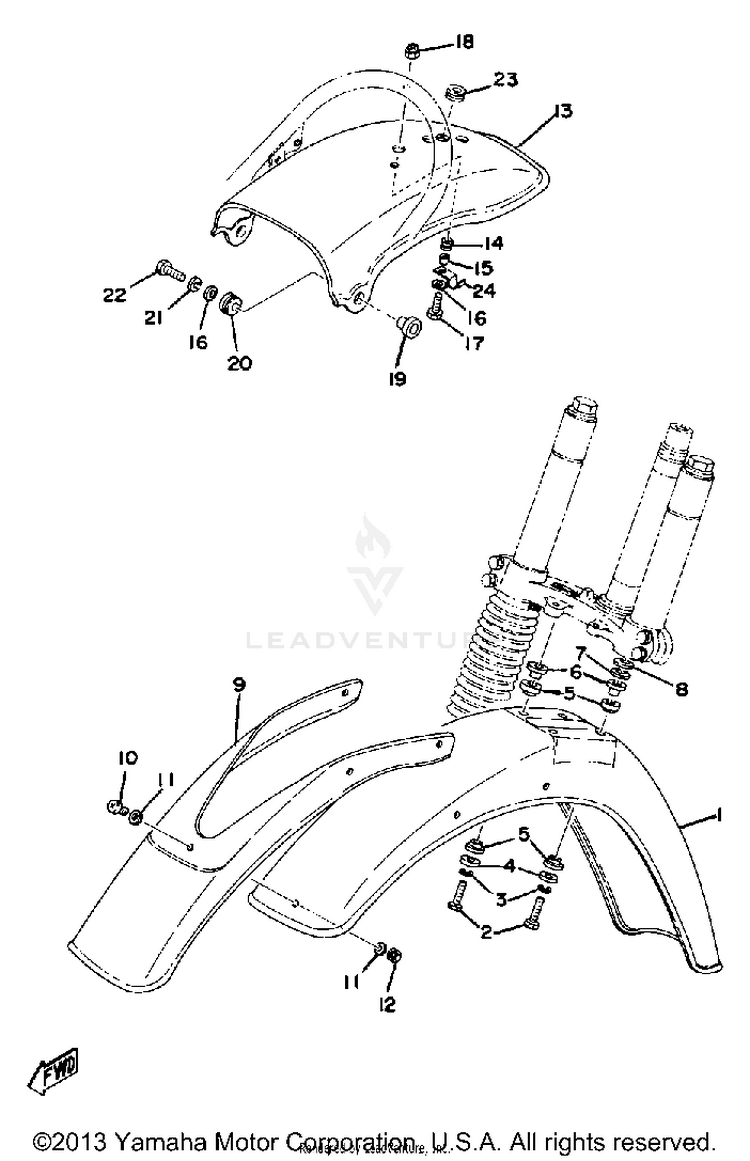

FRONT FENDER - REAR FENDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11K7-21511-00-G8FENDER, FRONT | SKY BLUE$40.00$32.80Not Shipping
297017-06030-00

(replaces part #
97021-06030-00)

BOLT,HEXAGON$3.90$3.3510+ In-Stock
392995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
490201-06380-00

(replaces part #
90201-06067-00)

WASHER, PLATE-$0.7110+ In-Stock
5322-21541-00-00DAMPER 1$8.49$6.628 In-Stock
690387-06158-00

(replaces part #
90387-06388-00)

COLLAR$9.49$7.4010+ In-Stock
790560-06151-00SPACER$0.75$0.68Not Shipping
890201-06095-00

(replaces part #
90201-06063-00)

WASHER, PLATE$9.49$7.407 In-Stock
9483-21551-01-00OVER, FENDER$11.99$9.83Not Shipping
1098980-04012-00SCREW, BIND$3.85$3.3110+ In-Stock
1192990-04600-00

(replaces part #
92901-04600-00)

WASHER, PLATE$0.99$0.907 In-Stock
1295307-04600-00

(replaces part #
95301-04600-00)

NUT$9.49$8.545 In-Stock
131K7-21611-00-G8FENDER, REAR | SKY BLUE$29.94$24.55Not Shipping
1490480-14052-00GROMMET$6.49$5.063 In-Stock
1590387-060A3-00

(replaces part #
90387-06216-00)

COLLAR$9.49$7.402 In-Stock
1690201-06380-00

(replaces part #
90201-06067-00)

WASHER, PLATE-$0.7110+ In-Stock
1797017-06020-00

(replaces part #
97011-06020-00)

BOLT$4.06$3.4910+ In-Stock
1895617-06100-00

(replaces part #
95601-06100-00)

NUT, U$2.90$2.4910+ In-Stock
1990387-06158-00

(replaces part #
90387-06388-00)

COLLAR$9.49$7.4010+ In-Stock
2090480-14023-00GROMMET$8.49$6.6210+ In-Stock
2192995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
2297017-06025-00

(replaces part #
97011-06025-00)

BOLT$4.55$3.9110+ In-Stock
2390480-15058-00GROMMET$9.49$7.4010+ In-Stock
2490462-05005-00CLAMP$10.49$8.183 In-Stock
